Focusrite Scarlett 18i16 4th Gen / Gen 4 - 18 In / 16 Out Desktop USB Audio Interface / Soundcard Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

DESCRIPTION

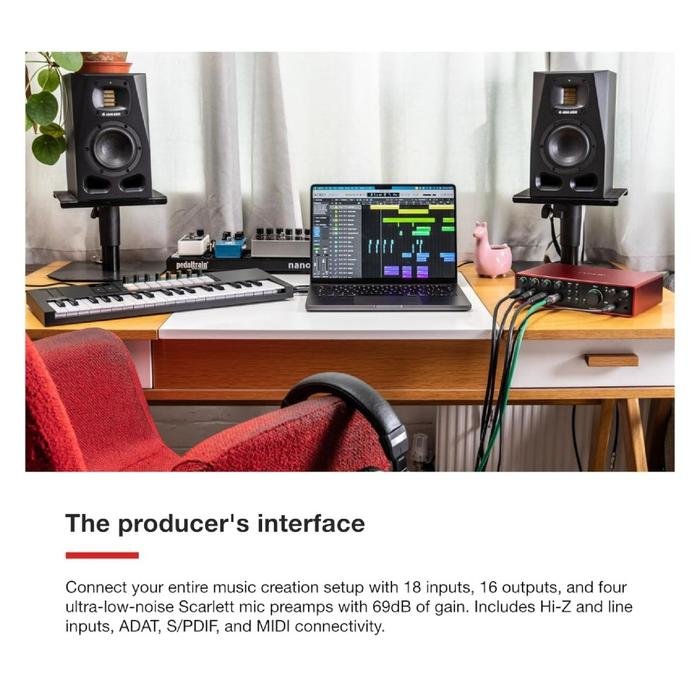

Scarlett 18i16 is the complete compact studio hub for all your instruments and outboard gear. Perfect for producers, 18i16 is equipped with enough I/O to connect all your studio gear. Four of our most detailed ultra-low-noise mic preamps. Hi-Z, line, and MIDI connections for your guitars, keys, synths, grooveboxes, and controllers. With 18i16 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session. Expand your channel count using the S/PDIF or ADAT connections.

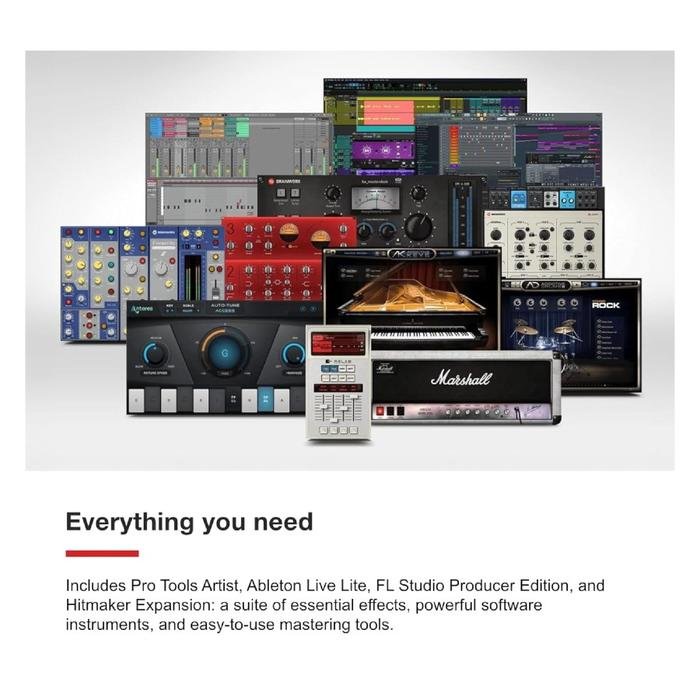

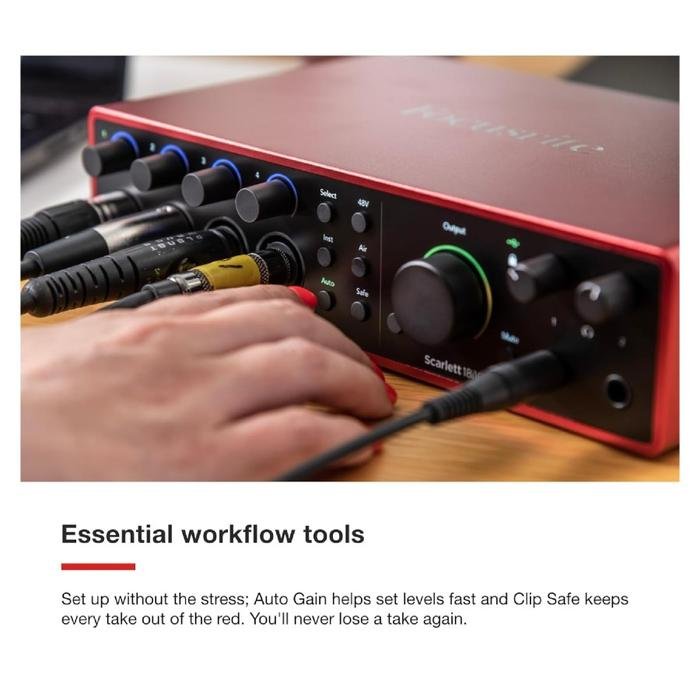

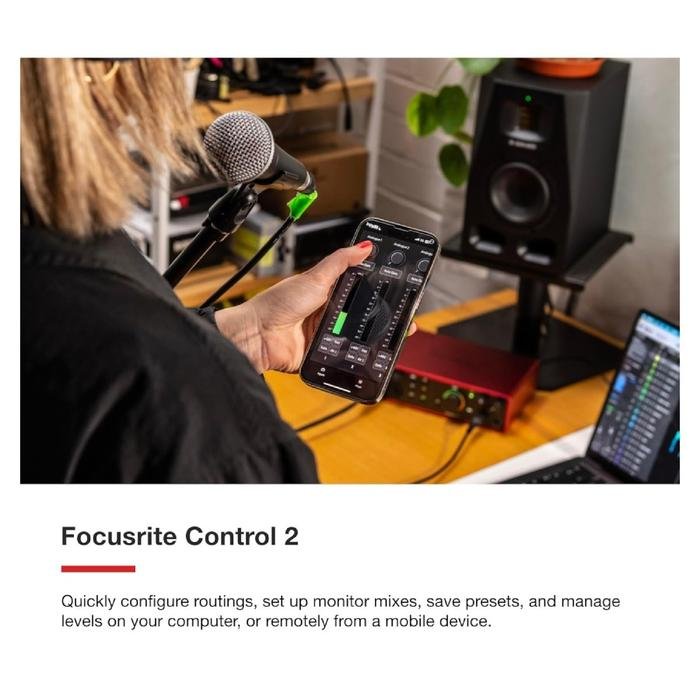

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. The Hitmaker Expansion software bundle has all the tools you need to record, produce, and release your tracks. And the Focusrite Control 2 desktop and mobile apps enable you to remotely control your Scarlett anywhere in the studio. 18i16 can be powered directly from a computer's USB-C port (3A), so no extra power supply is needed.

SPECIFICATION
Overview
•Number of Microphone Preamps
4
•Phantom Power
Yes (Independent)
•Instrument Inputs
2
•Line Inputs
8
•Air Mode
Yes
•Auto Gain
Yes
•Clip Safe
Yes
•Line Outputs
4
•Headphone Outputs
2
•ADAT Inputs
1
•ADAT Outputs
1
•SPDIF Inputs
1
•SPDIF Outputs
1
•MIDI Inputs
1
•MIDI Outputs
1
•Loopback
Yes
•Connectivity
USB Type-C
•Protocol
USB 2.0
•Form Factor
Desktop
•Simultaneous I/O
20 x 18 (including Loopback)
•A/D Resolution
24-bit/192 kHz
•Bus Powered
Yes (3A)

Dimensions
•Height
60.5mm
•Width
240mm
•Depth
169.4mm
•Weight
1.494kg

Supported sample rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs
•Frequency Response
20-20kHz ± 0.06dB
•Dynamic Range
116dB (A-Weighted)
•THD+N
-100dB @ 8dB gain
•Noise EIN
-127dBu (A-Weighted)
•Maximum Input Level
16dBu
•Gain Range
69dB
•Impedance
3ΚΩ

Variable Line inputs
•Frequency Response
20-20kHz ± 0.05dB
•Dynamic Range
115.5dB (A-Weighted)
•THD+N
-100dB @ 8dB gain
•Maximum Input Level
22dBu
•Gain Range
69dB
•Impedance
24ΚΩ

Fixed Line inputs
•Frequency Response
20-20kHz ± 0.02dB
•Dynamic Range
115.5dB (A-Weighted)
•THD+N
-106dB
•Maximum Input Level
22dBu
•Impedance
48ΚΩ

Instrument inputs
•Frequency Response
20-20kHz ± 0.05dB
•Dynamic Range
113dB (A-Weighted)
•THD+N
-80dB @ 8dB gain
•Maximum Input Level
12dBu
•Gain Range
62dB
•Impedance
1ΜΩ

Line outputs (Balanced)
•Frequency Response
20-20kHz ± 0.02dB
•Dynamic Range
122dB (A-Weighted)
•THD+N
-112dB
•Maximum Output Level
16dBu
•Impedance
200Ω

Headphone outputs
•Frequency Response
20-20kHz ± 0.1dB @ 330/3000
•Dynamic Range
112dB @ 33Ω
116dB @ 300Ω
•THD+N
-100dB @ 33Ω (Minimum)
-110dB @ 300Ω (Minimum)
•Maximum Output Level
5dBu into 33Ω
11dBu into 300Ω
•Maximum Output Power
57mW into 33Ω
27mW into 300Ω
•Impedance
11Ω

Analogue to Digital Converter
•THD+N
-110dB
•Dynamic Range
120dB

Digital to Analogue Converter
•THD+N
-115dB
•Dynamic Range
130dB (A-Weighted)

Power
•USB
3A
•External (Optional)
15W
