JBL Professional 305P MkII
Next-Generation 5-Inch 2-Way Powered Studio Monitor

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN PT IMS

Description

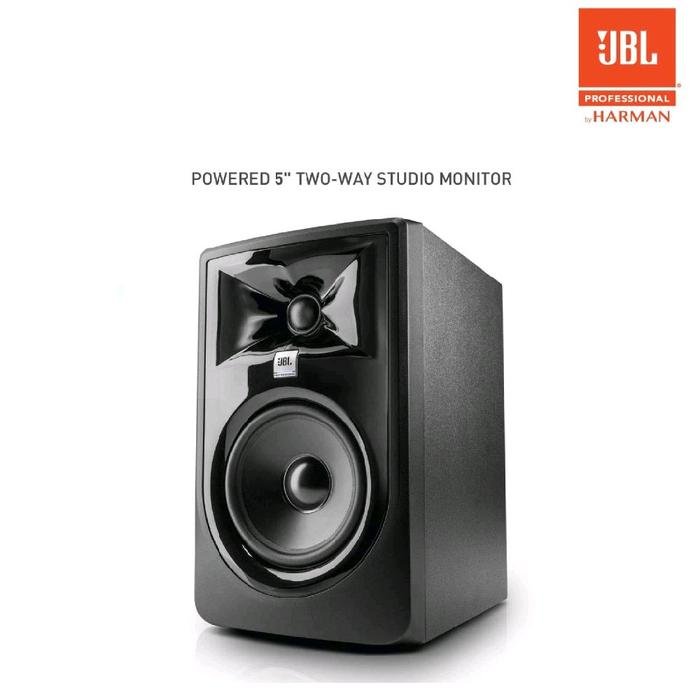

Powered 5" (12.7 cm) Two-Way Studio Monitor

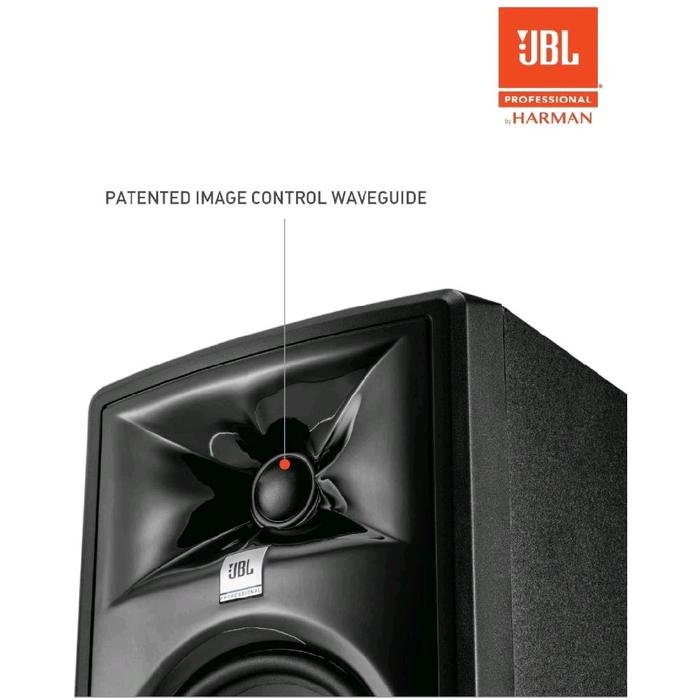

The next-generation JBL 305P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 305P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and, sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

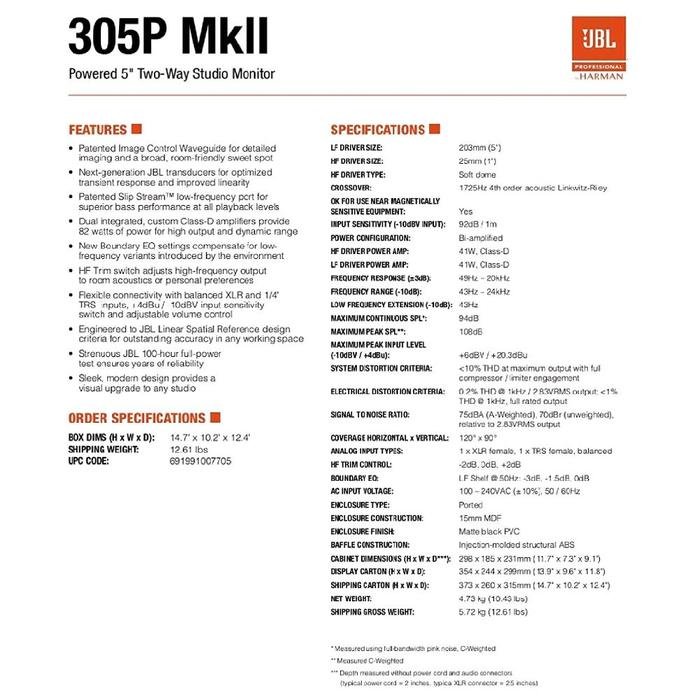

SPECIFICATION
GENERAL SPECIFICATIONS
•LF Driver Size
127 mm (5")
•HF Driver Size
25 mm (1")
•HF Driver Type
Soft dome
•Crossover
1725Hz 4th order acoustic Linkwitz-Riley
•Power Configuration
Bi-amplified

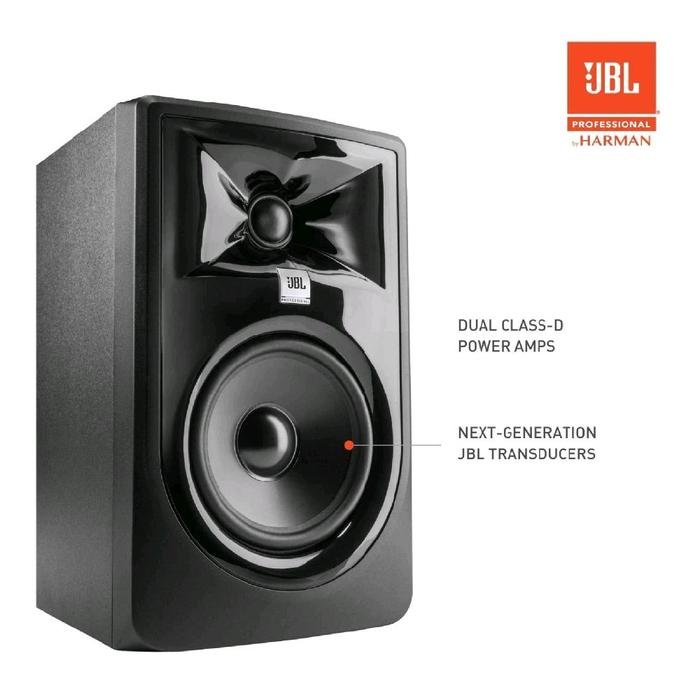

•HF Driver Power Amp
41 W Class D
•LF Driver Power Amp
41 W Class D
•Frequency Response
49Hz – 20kHz (±3dB)
•Frequency Range
43Hz – 20kHz (-10dB)
•Low Frequency Extension
43Hz (-10dB)
•Maximum Continuous SPL
94dB
•Maximum Peak SPL
108dB
•Maximum Peak Input Level
+6dBV / +20.3dBu (-10dBV / +4dBu)
•System Distortion Criteria
•Electrical Distortion Criteria
0.2% THD @ 1kHz / 2.83VRMS output;
•Signal to Noise Ratio
75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
•Coverage Pattern
120° x 90° (horizontal x vertical)
•HF Trim Control
-2dB, 0dB, +2dB
•Boundary EQ
Boundary EQ -3dB, -1.5dB, 0dB
LF Shelf @ 50Hz
•AC Input Voltage
100 – 240VAC (±10%), 50 / 60Hz

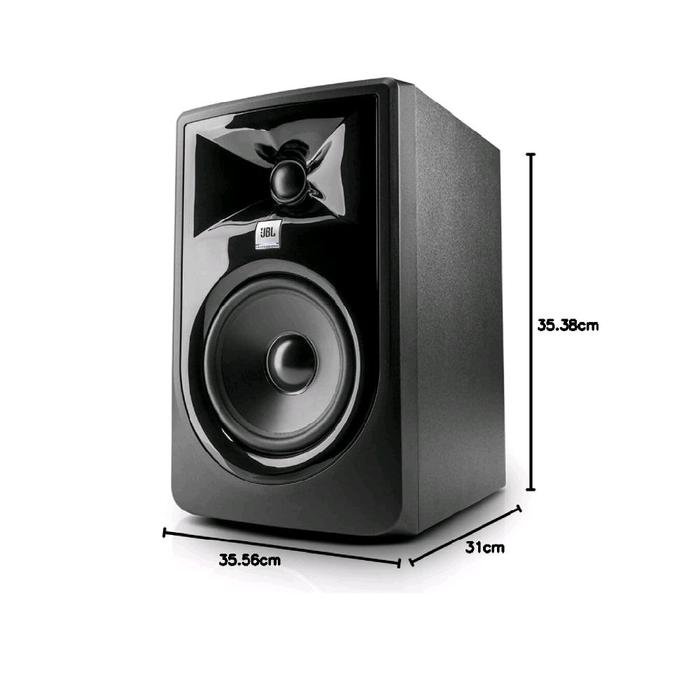

DIMENSIONS
•Height
298 mm (11.7")
•Width
185 mm (7.3")
•Depth
231 mm (9.1")
•Net Weight
4.73 kg (10.43 lbs)
DESIGN
•Enclosure Type
Ported
•Enclosure Construction
15mm MDF
•Enclosure Finish
Matte black PVC
•Baffle Construction
Injection-molded structural ABS

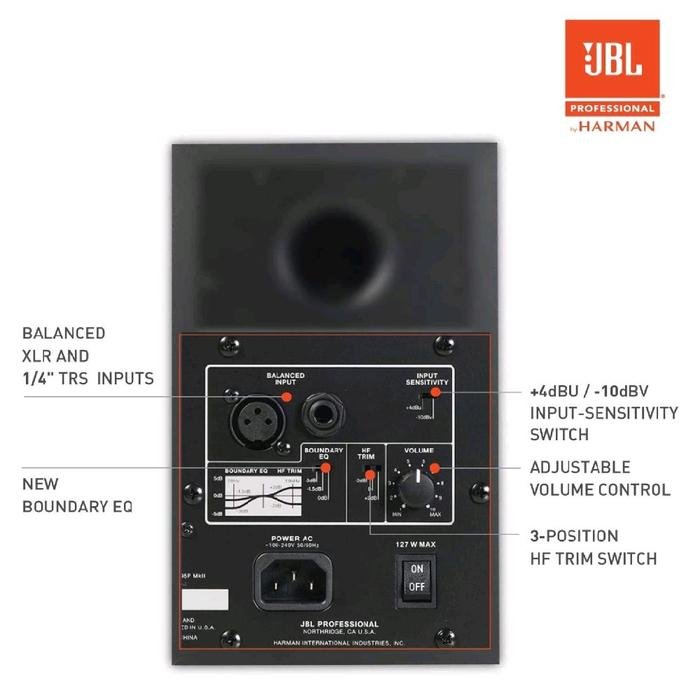

AUDIO INPUT
•Analog Input Types
1 x XLR female, 1 x TRS female, balanced
•Input Sensitivity
92dB / 1m (-10dBV Input)
