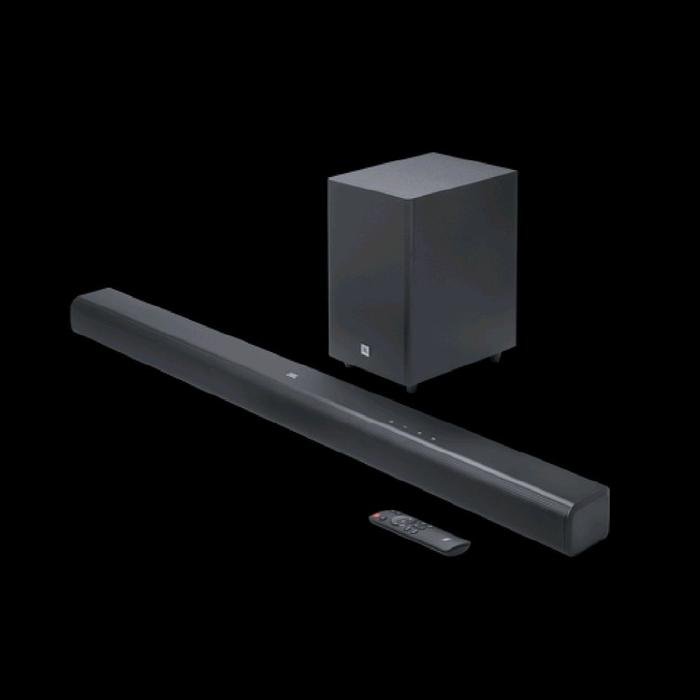

JBL Cinema SB 550
3.1 Channel Soundbar with Wireless Subwoofer

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI
1 TAHUN PT IMS

FEATURES
◉ Dedicated center channel
provides superior voice clarity
◉ 250W power output
◉ Wireless subwoofer for extra
deep bass
◉ One cable connection with HDMI
ARC
◉ Wireless music streaming via
Bluetooth
◉ Dolby Audio embedded

TECHNICAL SPECIFICATIONS

GENERAL SPECIFICATIONS
•Model: CINEMA SB550
•Sound system: 3.1 channel
•Power supply: 100 - 240V AC, ~ 50/60Hz
•Total speaker power output (Max @THD 1%): 250W
•Soundbar output power (Max @THD 1%): 150W
•Subwoofer output power (Max. @THD 1%): 100W
•Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters
•Subwoofer transducer: 5.25” (133mm), wireless
subwoofer
•Standby power: < 0.5 W
•Operating temperature: 0°C - 45 °C

HDMI SPECIFICATION
•HDMI ARC (Audio Return Channel): 1
•HDMI HDCP version: 1.4

AUDIO SPECIFICATION
•Frequency response: 45Hz-20kHz (-10dB)
•Audio inputs: 1 Optical, Bluetooth and USB
(USB playback is available in US version. For other
versions, USB is for Service only.)

USB SPECIFICATION
•USB port: Type A
•USB rating: 5V DC, 0.5A
•Supporting file formats: mp3
•MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3,
MPEG 2.5 Layer 3
•MP3 sampling rate: 16 - 48 kHz
•MP3 bitrate: MPEG 1 Layer 1: 32 kbps - 448 kbps;
MPEG 1 Layer 2: 32 kbps - 384 kbps; MPEG 1 Layer
3: 32 kbps - 320 kbps; MPEG 2/2.5 Layer 1: 32 kbps
-256 kbps; MPEG 2/2.5 Layer 2/3: 8 kbps - 160 kbps

WIRELESS SPECIFICATION
•Bluetooth version: 5.3
•Bluetooth profile: A2DP 1.3, AVRCP 1.6
•Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
•Bluetooth Max. transmitting power:
•Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK
•2.4G wireless transmitter frequency range: 2402-
2481 MHz
•2.4G wireless transmitter power:
•2.4G wireless modulation: GFSK

DIMENSIONS
•Soundbar dimensions (W x H x D): 950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
•Subwoofer dimensions (W x H x D): 200 x 324 x 250 mm / 7.9” x 12.8” x 9.9”
•Soundbar weight: 2.5kg / 5.5 lbs
•Subwoofer weight: 4.2 kg / 9.3 lbs
•Packaging dimensions (W x H x D): 1025 x 235 x 397mm / 40.4” x 9.3” x 15.6”
•Packaging Weight: 8.8kg / 19.4 lbs
