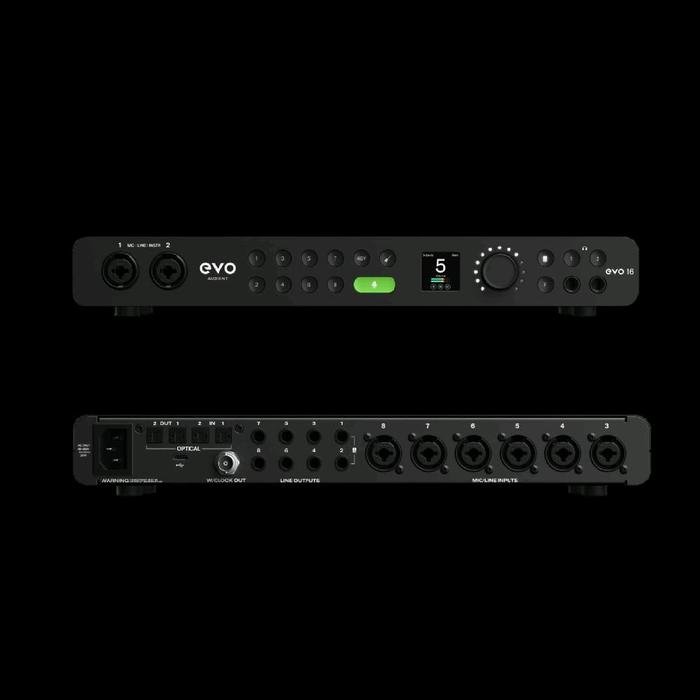

Evo Audient 16
24in/24out Audio Interface with SmartGain

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

(Dapatkan Perpanjangan Masa Garansi Menjadi 3 Tahun**)
**Untuk mendapatkan masa perpanjangan Garansi menjadi 3 Tahun, Customer Wajib Mendaftarkan serial number produk Audient dan EVO pada web yang terdapat pada Sticker didus unit.

FEATURES
◉ 8 x EVO Mic Preamps
◉ 2 x JFET Instrument Inputs
◉ 2 x Independent Headphone Outputs
◉ 8 x Line Outputs
◉ 2 x Optical Inputs/Outputs
◉ Smartgain
◉ Phantom Power
◉ Instrument Input Button
◉ Main Volume Control
◉ Main Output Select
◉ Programmable Function Button
◉ Headphones 1+2 Output Select

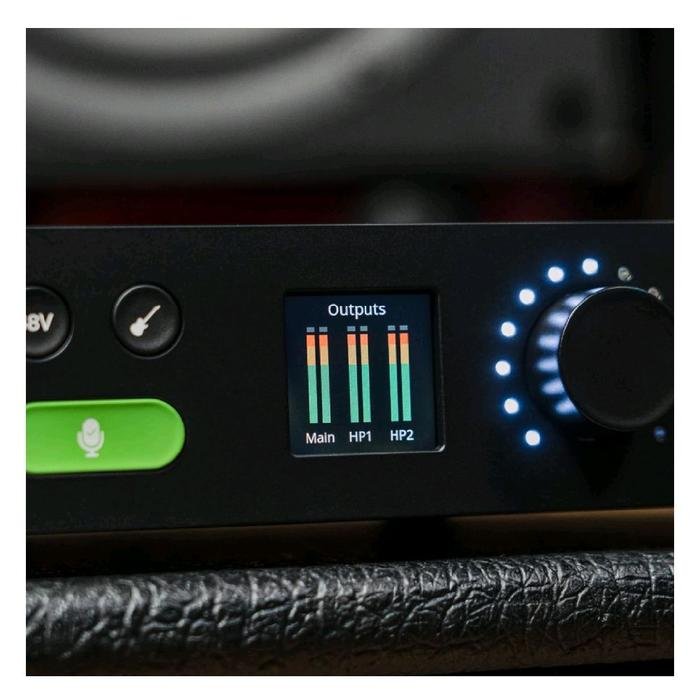

◉ High-Res LCD Screen
◉ Word Clock Output
◉ USB2.0 (USB-C Connection)
◉ Power Supply

SPECIFICATIONS
•MICROPHONE PREAMPLIFIER:
Mic Gain Range:
58 dB
Line Gain Range:
58dB with-10dB Pad
Phantom Power:
48v +/-4v @10mA/Channel
CMRR:
>80dB @ 1kHz
Maximum Input Level:
+16dBu
Input Impedance (Mic):
>3ΚΩ Balanced
Input Impedance (Line):
>10kΩ Balanced
Frequency Response:
+/-0.5dB 10Hz to 40kHz
Crosstalk:
<-105dBu @ 1kHz <-103 @ 10kHz
THD+N @ OdBu (1kHz):
SNR:
100dB
Mic EIN:
<-127.5dBu
•XLR:
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
•1/4" Jack:
TIP (Hot), RING (Cold) & SLEEVE (Shield)
•D.I:
D.I Gain Range:
58dB
MAXIMUM INPUT LEVEL:
+10dBu
INPUT IMPEDANCE:
500k
THD+N @ OdBu (1kHz):
SNR:
100dB
FREQUENCY RESPONSE:
+/-0.5dB 10Hz to 20kHz
1/4" JACK:
TIP (Hot) & SLEEVE (Shield)
•ANALOGUE TO DIGITAL CONVERTER
Digital Reference Level:
OdBFS+10.5dBu
Frequency Response:
+/-0.5dB 10Hz to Fs/2
Crosstalk:
-125dBu @ 1kHz & 10kHz
THD+N @-1dBFS (1kHz):
Dynamic Range:
112.5dB A-Weighted
•DIGITAL TO ANALOGUE CONVERTER
Maximum Output Level:
12dBu
Digital Reference Level:
OdBFS+12dBu
Output Impedance:
Frequency Response:
+/-0.5dB 10Hz to Fs/2
Crosstalk:
<-110dBu @ 1kHz
THD+N @-1dBFS (1kHz):
Dynamic Range:
121dB A-weighted
1/4" Jack:
TIP (Hot), RING (Cold) & SLEEVE (Shield)
•HEADPHONE OUTPUT:
Max Output Level:
11.25dBu
Output Impedance:
Frequency Response:
+/-0.5dB 10Hz to Fs/2
Crosstalk:
-108dBu @ 1kHz
THD+N @-1dBFS (1kHz):
Dynamic Range:
118dB A-weighted
Max Level Into 30ohms:
+8.5 dBu, 0.00094% THD+N, 1.66Vpk Power: 86mW
Max Level Into 60ohms:
10 dBu, 0.00079% THD+N, 2.55Vpk Power: 104mW
Max Level Into 600ohms:
11.2 dBu, 0.00057%THD+N,
3.83Vpk Power: 24mW
1/4" Jack:
TIP (Left), RING (Right) & SLEEVE (Shield)
