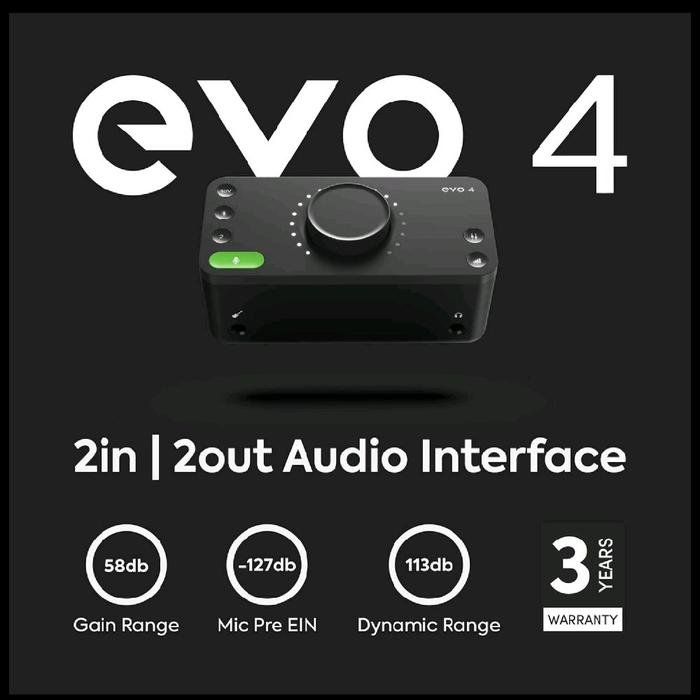

Evo Audient Evo 4
2in | 2out Audio Interface / Soundcard

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN
(Dapatkan Perpanjangan Masa Garansi Menjadi 3 Tahun**)

**Untuk mendapatkan masa perpanjangan Garansi menjadi 3 Tahun, Customer Wajib Mendaftarkan serial number produk Audient dan EVO pada web yang terdapat pada Sticker didus unit.

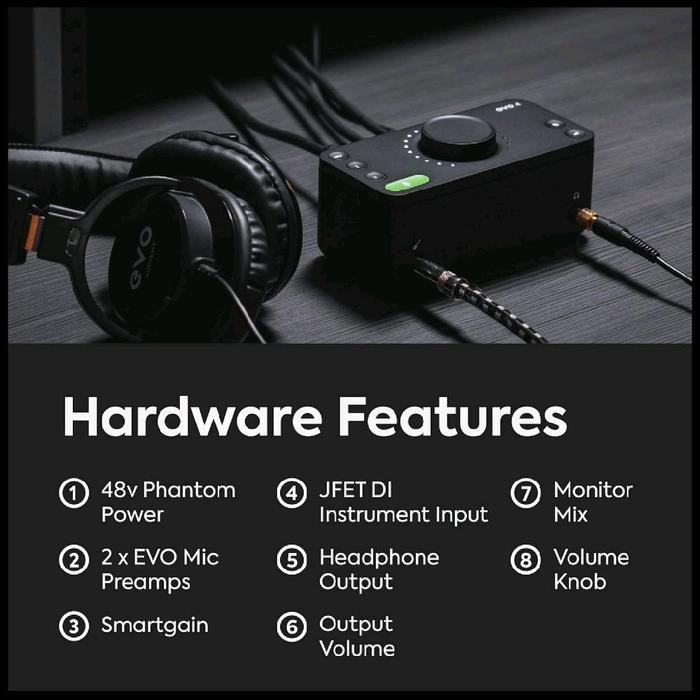

FEATURES
◉ 2 x EVO Mic Pres
◉ Class Leading Converters

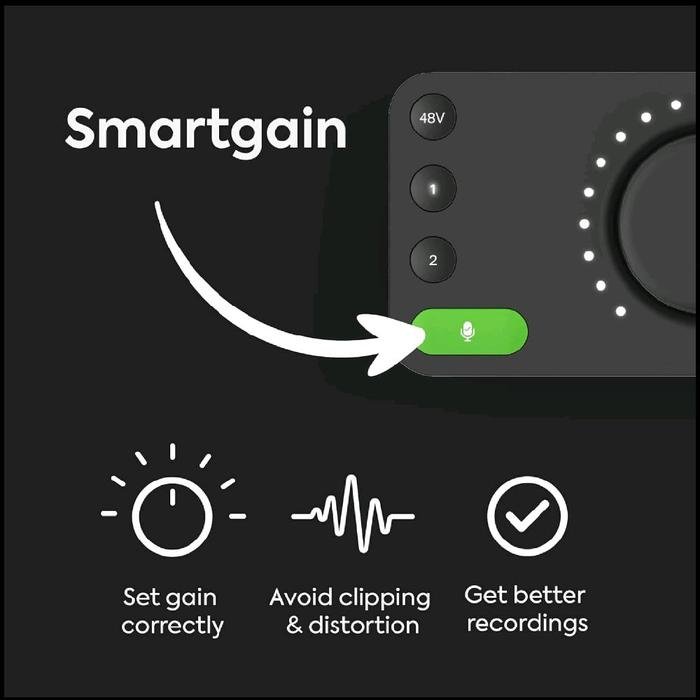

◉ Smartgain
◉ Smart Touchpoints
◉ JFET Instrument Input
◉ Speaker Outputs
◉ SmartMuting
◉ Headphone Output
◉ Ultra-Low Latency
◉ Monitor Mix
◉ Monitor Pan
◉ Loopback Functionality
◉ USB2.0 Bus Powered
◉ Free Software + Plugins

SPECIFICATION
MICROPHONE PREAMPLIFIER:
•Mic Gain Range: 58 dB
•Line Gain Range: 58dB with -10dB Pad
•Phantom Power: 48v +/-4v @ 10mA/Channel
•CMRR: >85dB @ 1kHz
•Maximum Input Level: +16dBu
•Input Impedance (Mic): >3kΩ Balanced
•Input Impedance (Line): >10kΩ Balanced
•Frequency Response: +/-0.5dB 10Hz to 40kHz
•Crosstalk: <-105dBu @ 1kHz & 10kHz
•THD+N @ 0dBu (1kHz):
SNR: 100dB
Mic EIN: <-128dBu
•XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
•1/4” Jack:
TIP (Hot), RING (Cold) & SLEEVE
(Shield)
DAC OUTPUTS:
•Maximum Output Level: +11dBu
•Digital Reference Level: 0dBFS = +11dBu
•Output Impedance:
•Frequency Response: +/-0.5dB 10Hz to Fs/2
•Crosstalk: <-110dBu @ 1kHz
•THD+N @ -1dBFS (1kHz):
•Dynamic Range: 113dB A-weighted
•1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
•D.I Gain Range: 58dB
•MAXIMUM INPUT LEVEL: +10dBu
•INPUT IMPEDANCE: 1MegΩ Unbalanced
•THD+N @ 0dBu (1kHz):
•SNR: 100dB
•FREQUENCY RESPONSE: +/-0.5dB 10Hz to 20kHz
•1/4” JACK: TIP (Hot) & SLEEVE (Shield)
HEADPHONE OUTPUT:
•Output Impedance:
•Frequency Response: +/-0.5dB 10Hz to Fs/2
•Crosstalk: -110dBu @ 1kHz
•THD+N @ -1dBFS (1kHz):
•Dynamic Range: 113dB A-weighted
•Max Level Into 30ohms:
+0.5dBu, 0.0025% THD+N, 1.16Vpk
Power: 45mW
•Max Level Into 60ohms:
+4.22dBu, 0.0015% THD+N, 1.78Vpk
Power: 52mW
•Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk
Power: 20mW
•1/4” Jack: TIP (Left), RING (Right) & SLEEVE (shield)
USB 2.0 HIGH SPEED
•No. Of Input Channels 2 Analogue
•No. Of Output Channels 2 Digital
•Connector: USB Type-C
•Included Cables:
1m USB 2.0 Type-C to USB Type-A
DSP MIXER ROUNDTRIP (IN TO OUT) LATENCY:
•44.1 kHz 0.594ms
•48.0 kHz 0.552ms
•88.2 kHz 0.302ms
•96.0 kHz 0.281ms
