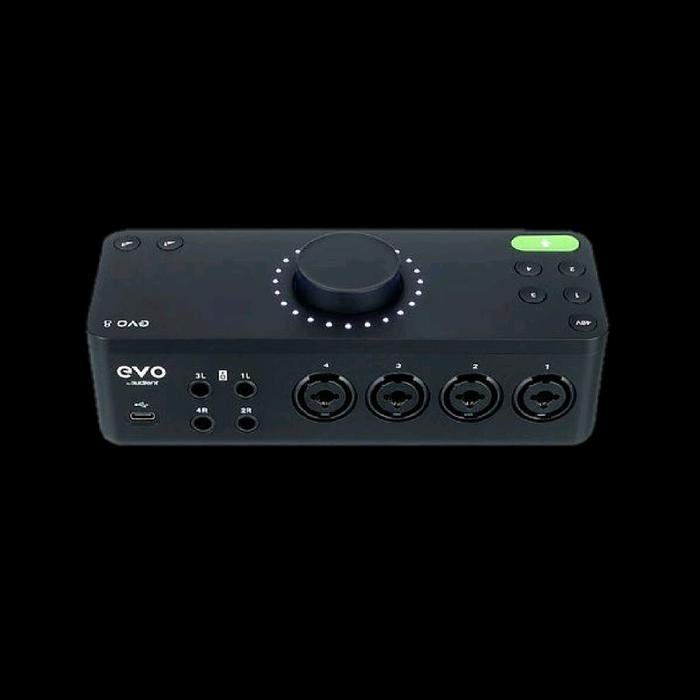

Evo Audient Evo 8
4in | 4out Audio Interface / Sound Card with SmartGain

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

(Dapatkan Perpanjangan Masa Garansi Menjadi 3 Tahun**)
**Untuk mendapatkan masa perpanjangan Garansi menjadi 3 Tahun, Customer Wajib Mendaftarkan serial number produk Audient dan EVO pada web yang terdapat pada Sticker didus unit.

FEATURES
◉ 4 x EVO Mic Pres
◉ Class Leading Converters
◉ Smartgain
◉ Smart Touchpoints
◉ JFET Instrument Input
◉ 2 x Stereo Speaker Outputs
◉ 2 x Headphone Outputs
◉ Low Latency Software Mixer
◉ Audio Loop-back
◉ USB2.0 Bus Powered
◉ Phantom Power
◉ Free Software + Plugins

EVO 8 is a professional, incredibly powerful and totally portable 4 channel audio interface made for recording music at home or on the go. Four award winning EVO Mic preamps alongside our advanced converter technology deliver studio quality results from the get go. Add to that intelligent mic preamps that set their own levels with Smartgain, easy to navigate controls, and a powerful range of professional must-have features – EVO 8 isn’t just another audio interface, it’s an entirely new way of doing things.

SPECIFICATION
•Microphone Preamplifier
Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48V +/-4V @ 10mA/Channel (only 2 channel available on USB-A host computers
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3kΩ Balanced
Input Impedance (Line): >10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz):
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

•D.I
D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz):
SNR: 100dB
1/4” Jack: TIP (Hot) & SLEEVE (Shield)

•ADC Inputs
Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz):
Dynamic Range: 113dB A-weighted

•DAC Outputs
Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance:
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):
Dynamic Range: 113dB A-weighted
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

•Headphone Output
Output Impedance:
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz):
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)

•DSP Mixer Roundtrip Latency:
(in to out)
44.1 kHz 0.594ms
48.0 kHz 0.552ms
88.2 kHz 0.302ms
96.0 kHz 0.281ms

•DAW Playback Latency
@ 32 Sample Buffer for Software Instrument Playback
44.1 kHz ~2.5ms
96.0 kHz ~2ms

•USB 2.0 High Speed
No. Of Input Channels 24 Analogue
No. Of Output Channels 4 Digital
Connector: USB Type-C
Included Cables: 1m USB 2.0 Type-C to USB Type-C

•Weight & Dimensions
Weights: Unit: 0.475kg
Packaged: 0.815kg
Dimensions: Unit:
190mm (w) x 70mm (h) x 70mm (d)
Packaged:
230mm (w) x 105mm (h) x 95mm (d)
