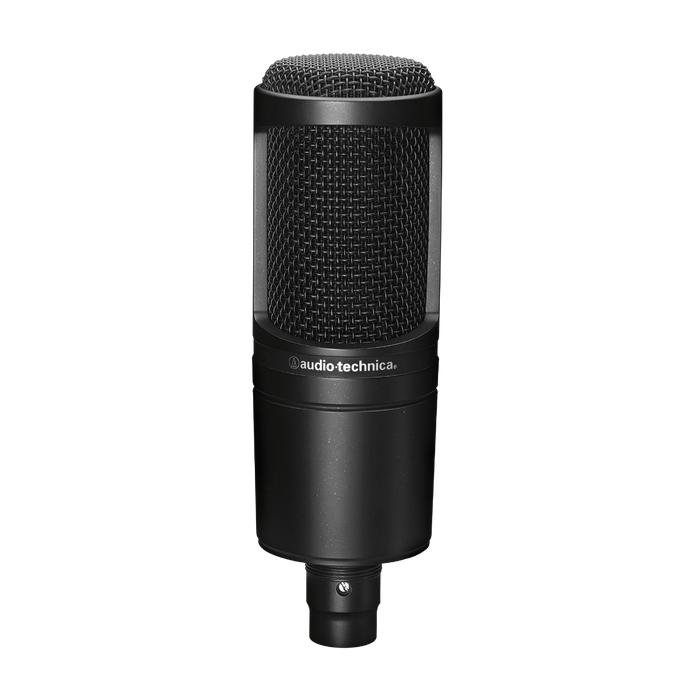

Audio Technica AT2020
CARDIOID CONDENSER MICROPHONE

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN
AUDIO TECHNICA INDONESIA

FEATURES

• The price/performance standard in side-address studio
condenser microphone technology
• Ideal for project/home-studio applications
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom-engineered 16 mm low-mass diaphragm provides
extended frequency response and superior transient response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

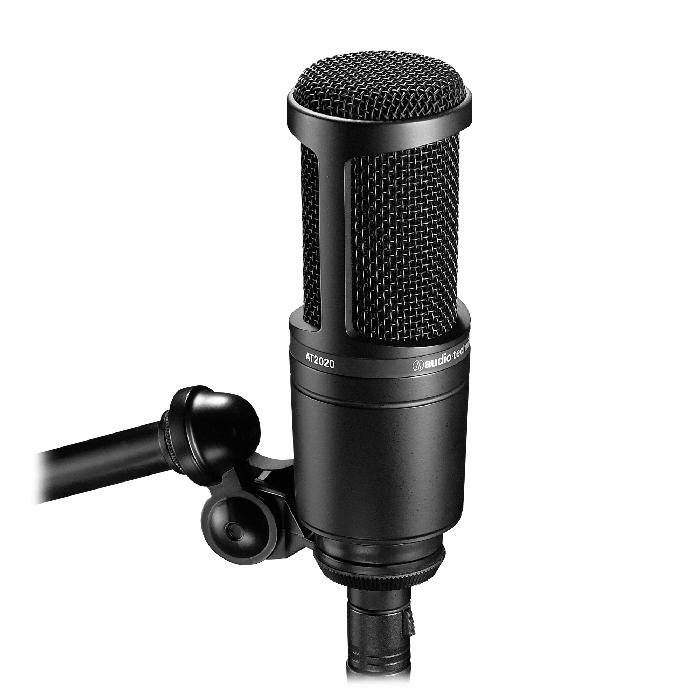

• Pivoting, threaded stand mount attaches securely for easy and
precise placement of the microphone

SPECIFICATIONS

ELEMENT Fixed-charge back plate
permanently polarized condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY –37 dB (14.1 mV) re 1V at 1 Pa*
IMPEDANCE 100 ohms
MAXIMUM INPUT SOUND LEVEL 144 dB SPL, 1 kHz at 1% T.H.D.
NOISE1 20 dB SPL
DYNAMIC RANGE (typical) 124 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO1 74 dB, 1 kHz at 1 Pa*
PHANTOM POWER 48V DC, 2 mA typical
REQUIREMENTS
WEIGHT (less accessories) 12.1 oz (345 g)
DIMENSIONS 6.38" (162.0 mm) long,
2.05" (52.0 mm) maximum body
diameter
OUTPUT CONNECTOR Integral 3-pin XLRM-type
