Audient iD4
2in | 2out Audio Interface / Sound

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN
(Dapatkan Perpanjangan Masa Garansi Menjadi 3 Tahun**)

**Untuk mendapatkan masa perpanjangan Garansi menjadi 3 Tahun,Customer Wajib Mendaftarkan serial number produk Audient dan EVO pada web yang terdapat pada Sticker didus unit

FEATURES

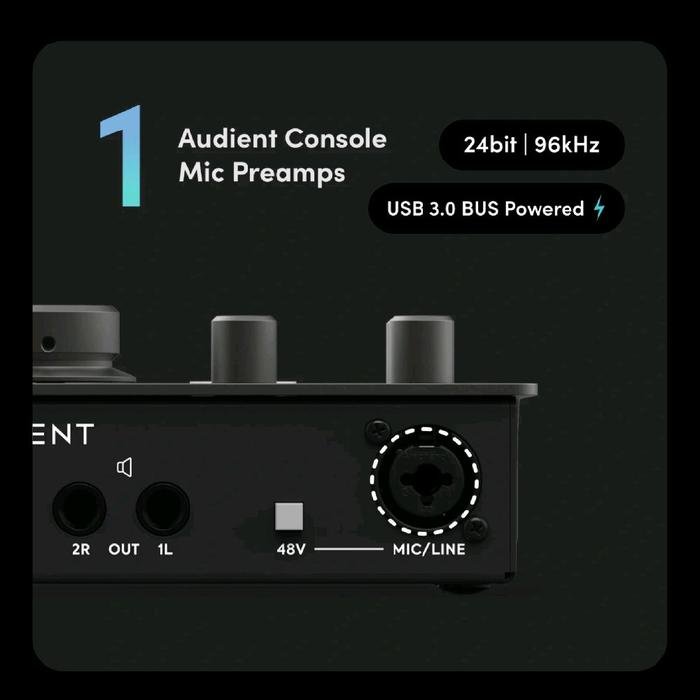

◉ 1 x Audient Console Mic Preamp
◉ Class Leading AD/DA Converters

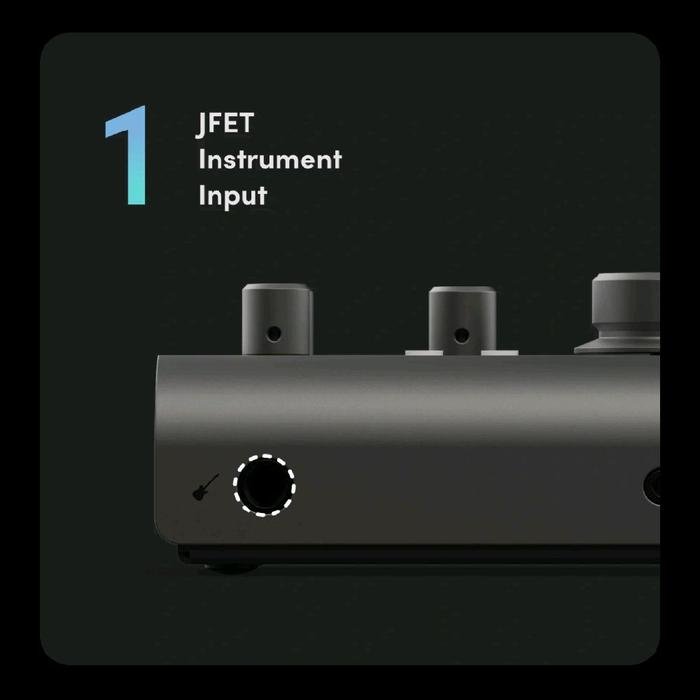

◉ 1 x JFET Instrument Input

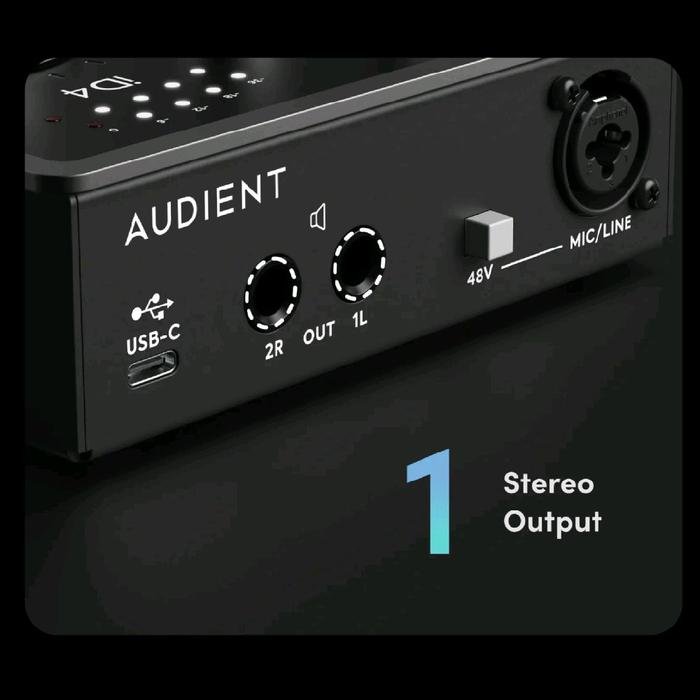

◉ 2 x Line Outputs

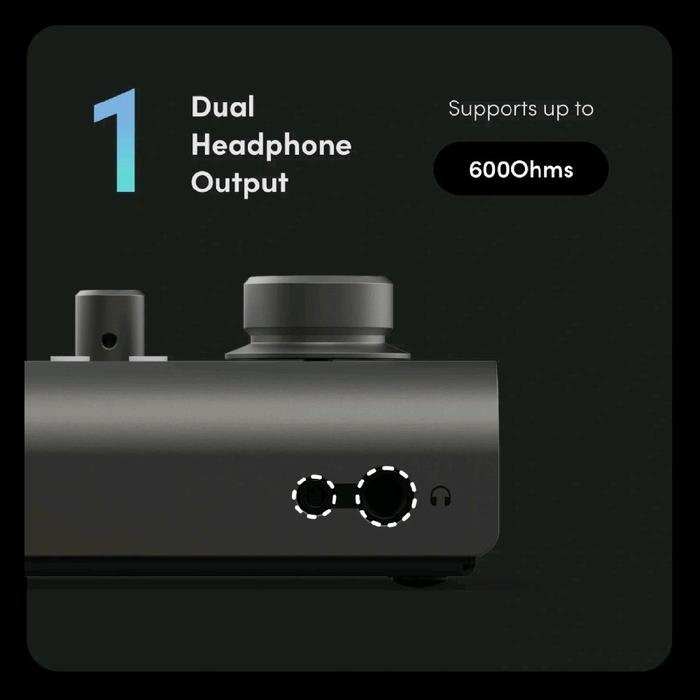

◉ 1 x Dual Headphone Output
◉ Speaker On/Off Button
◉ ScrollControl
◉ Monitor Pan
◉ Monitor Mix (Direct Monitoring)
◉ Audio Loop-back
◉ True Phantom Power over USB
◉ USB3.0 Bus Powered
◉ 24bit/96khz
◉ Mac, Windows & iOS Compatible
◉ All Metal Design
◉ Free Software + Plugins
Introducing iD4, our ultracompact but hugely powerful audio interface designed to let you make music like a pro. Though small in size iD4 is big on features – packing in one fully analogue Audient Console Mic Preamp, Advanced 32-bit AD/DA Converters, one JFET instrument output and Dual Headphone Outputs all in a 13 x 12cm footprint. Plus iD4 is completely bus powered, letting you capture studio quality recordings at home and on the road.
SPECIFICATION
D.I / Instrument Input
•RANGE:40dB
•LINEUP:12dBu = 0dBFS
•THD+N @ 0dBu:0.1%
•SNR:100dBu A-Weighted
•FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 20kHz
Microphone Preamplifier
•GAIN RANGE: 58dB
•LINEUP:12dBu = 0dBFS
•MIC MAX INPUT LEVEL:12dBu
•LINE MAX INPUT LEVEL:21dBu
•INPUT IMPEDANCE (Mic):2.8k
•INPUT IMPEDANCE (Line):>8k
•PHANTOM POWER: (48V +/-4V @ 10mA/Channel)
•THD+N @ 0dBu:0.00170%
•THD+N @ 0dBu MAX GAIN:•SNR:101dBu A-Weighted
•EIN:129dB A-Weighted
•CMRR @ 1k:>75dB
•FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 40kHz
Analogue to Digital Converter
•THD+N @ -1dBFS:0.001%
•DYNAMIC RANGE:120dB A-Weighted
•FREQUENCY RESPONSE:±0.5dB 10Hz to 40kHz
Line Outputs (DAC)
•LINEUP:12dBu = 0dBFS
•THD+N @ -1dBFS:0.0006%
•DYNAMIC RANGE:125.5dB A-Weighted
•CROSSTALK:>120dB
•FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
•1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)
Headphone Outputs
•LINEUP:18dBu = 0dBFS
•THD+N @ -1dBFS:0.0009%
•DYNAMIC RANGE:125.5dB A-Weighted
•CROSSTALK:>116dB
•FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
•MAXIMUM LEVEL @ 30R:2.59V Peak, 1.827V RMS, 223mW
•MAXIMUM LEVEL @ 62R:4.18V Peak, 2.95V RMS, 280mW
•MAXIMUM LEVEL @ 600R:7.72V Peak, 5.46V RMS, 100mW
•1/4” TRS JACK:Tip (Left), Ring (Right) & Sleeve (Shield)
USB-C High Speed
•BUS POWER:
•MIN REQUIREMENT:0.9A @ 5V >=USB 3.0 Port
•MAX REQUIREMENT:1.5A @ 5V USB-C: Provides higher headphone outputs levels
•No. of INPUT CHANNELS:2 (2 Analogue)
•No. of OUTPUT CHANNELS:2 (2 Analogue)
•DSP MIXER LATENCY ROUND TRIP (in-to-out):44.1kHz 0.65mS
•DSP MIXER LATENCY ROUND TRIP (in-to-out):48.0kHz 0.6mS
•DSP MIXER LATENCY ROUND TRIP (in-to-out):88.2kHz 0.33mS
•DSP MIXER LATENCY ROUND TRIP (in-to-out):96.0kHz 0.31mS
