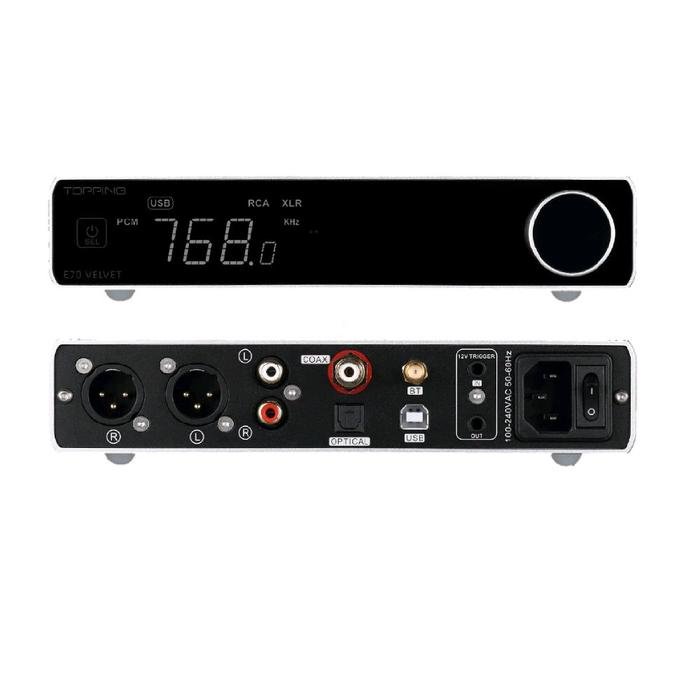

TOPPING E70V / E70 Velvet
AK4499EX Digital to Analog Convertor (DAC)

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES

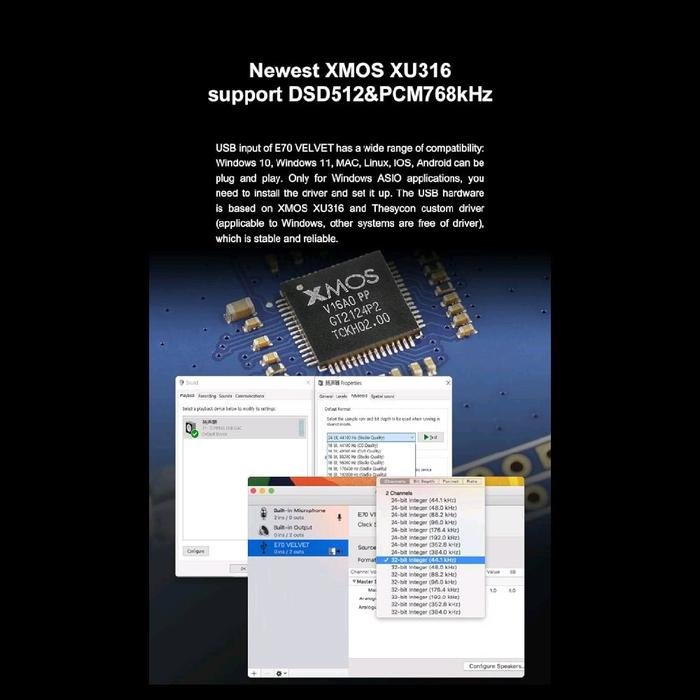

◉ XMOS XU316

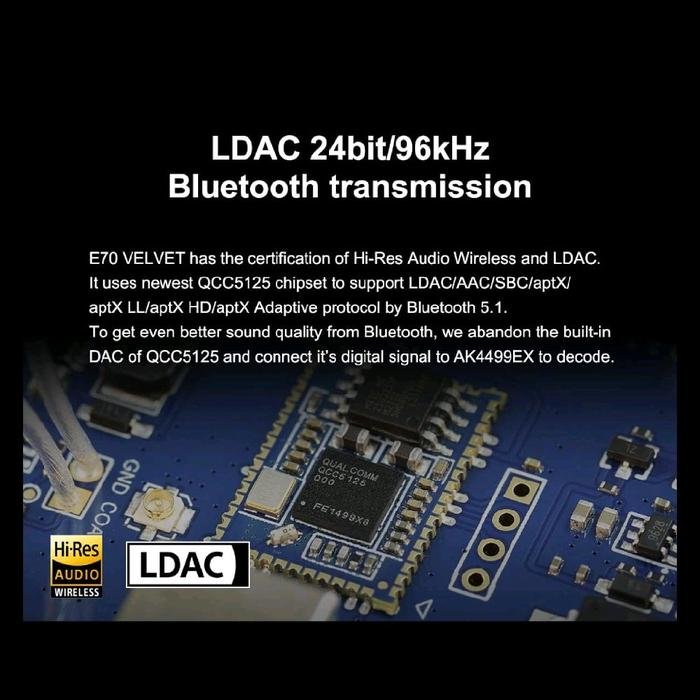

◉ Bluetooth 5.1 LDAC transmission
◉ THD+N:
◉ AK449EX Velvet Sound Verita DAC chip
◉ Selectable RCA & XLR outputs
◉ Low-noise voltage reference power supply

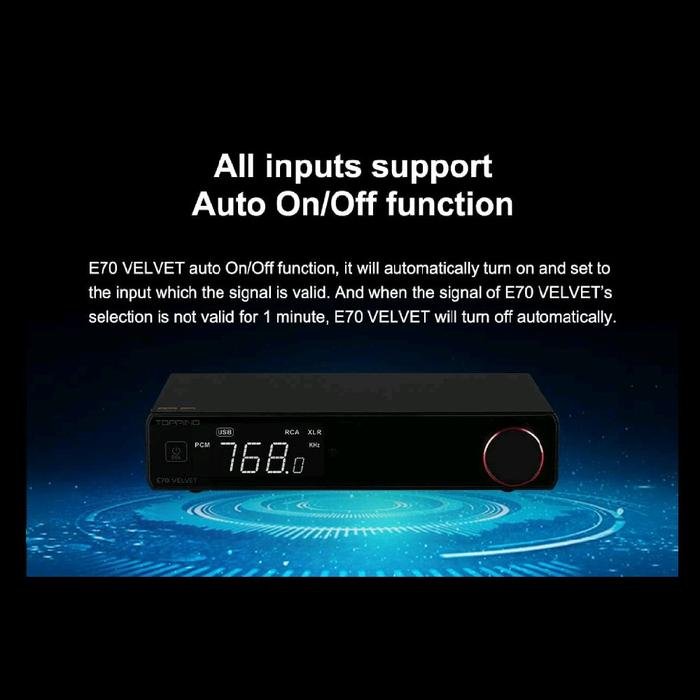

◉ Auto on/off function
◉ Ultra-low-noise preamp
◉ Remote control

SPECIFICATION
•USB IN
°PCM: 44.1kHz - 768kHz/ 16bit - 32bit
°DSD (Native): DSD64 - DSD512
°DSD(DoP): DSD64 - DSD256

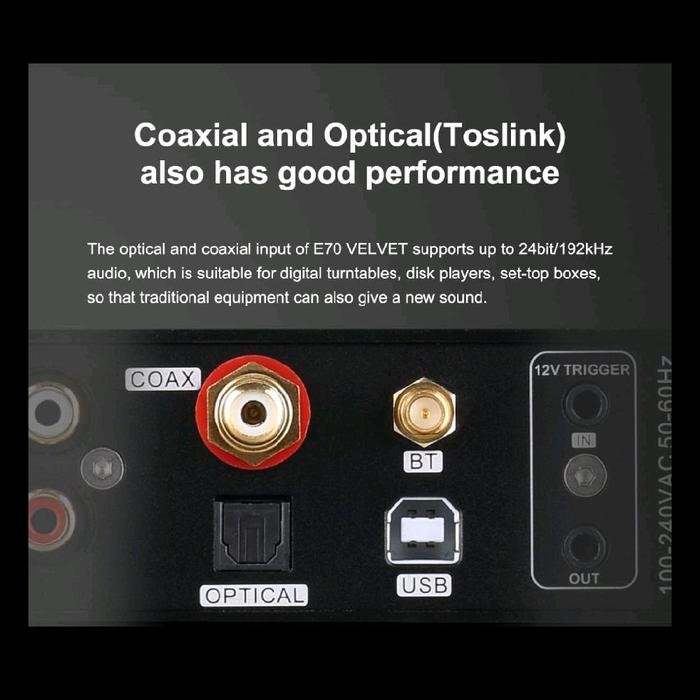

•COAX/OPT IN:
°PCM: 44.1kHz - 192kHz/ 16bit - 24bit
•BT IN:
°AAC/SBC/APTX/APTX LL/APTX HD/APTX-Adaptive/LDAC
•RCA parameters
°THD+N (A-wt):
°THD @90kBw (No-wt):
°SNR (A-wt): 125dB @1kHZ
°Dynamic range (A-wt): 125dB @1kHZ
•Frequency Response
°20Hz-40kHz(0.3dB)
°20Hz-40kHz (1.0dB)
•Output Level
°2.1Vrms @OdBFS(4V Mode)
°2.5Vrms @OdBFS(5V Mode)
•Noise (A-wt):
°Channel Crosstalk: -130dB @1kHZ
°Channel Balance: 0. 3dB
•Output Impedance: 50Ω
•XLR parameters
°THD+N (A-wt):
°THD @90kBw (No-wt):
°SNR (A-wt): 131dB @1kHZ
°Dynamic range (A-wt): 131dB @1kHZ
•Frequency Response
20Hz-40kHz(0.2dB)
20Hz-40kHz (0.8dB)
•Output Level
4.2Vrms @OdBFS(4V Mode)
5.0Vrms @OdBFS(5V Mode)
•Noise (A-wt):
•Channel Crosstalk: -143dB @1kHZ
•Channel Balance: 0. 3dB
•Output Impedance: 100Ω
