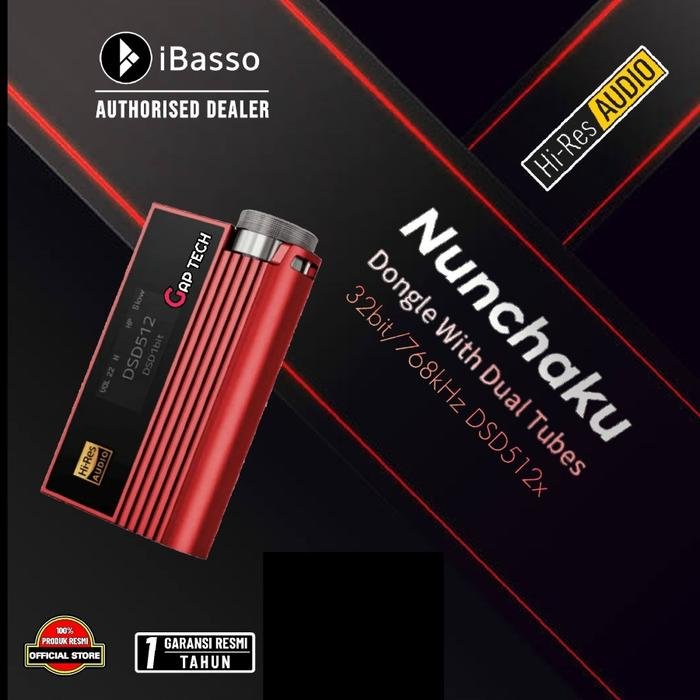

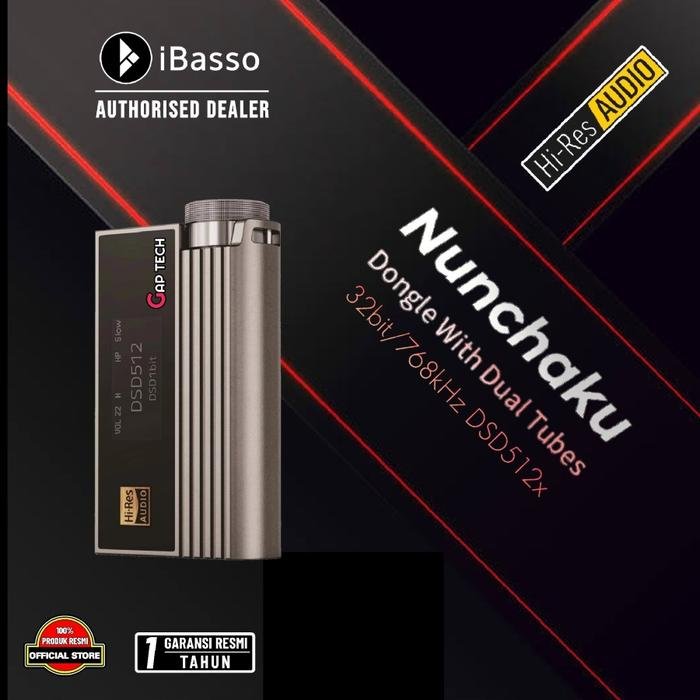

iBasso Nunchaku Portable USB DAC & Tube Amplifier with Dual CS43198 DAC / DAC AMP Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ Portable DAC and headphone amplifier

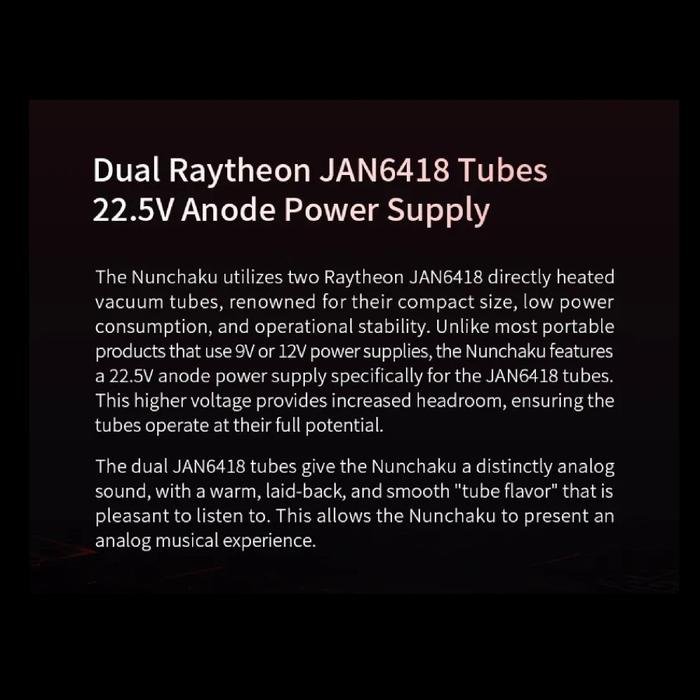

◉ Features 2x CS43198 Flagship DAC chipsets and 2x Raytheon JAN6418 vacuum tubes
◉ Dual output modes: Tube and Class AB
◉ Balanced 4.4mm + single-ended 3.5mm outputs

SPECIFICATION
•DAC Chipset: Dual Cirrus Logic CS43198
•PCM: Up to 32bit/768kHz
•DSD: Native DSD 512x
•Weight: 50g
•Size: 65mm*34.6mm*15mm

4.4mm Balanced Output (AB Mode)
•THD+N: -119dB (0.00011%) @1kHz 200k Load
•Output Voltage:
2.8Vrms (Low Gain)
4.1Vrms (High Gain)
•Output Power: 450mW@320
•S/N: 130dB
•Dynamic Range: 130dB
•Crosstalk: 145dB
•Frequency Response: 15Hz-40kHz ±0.5dB

4.4mm Balanced Output (TUBE Mode)
•Output Voltage:
2.3Vrms (Low Gain)
4.5Vrms (High Gain)

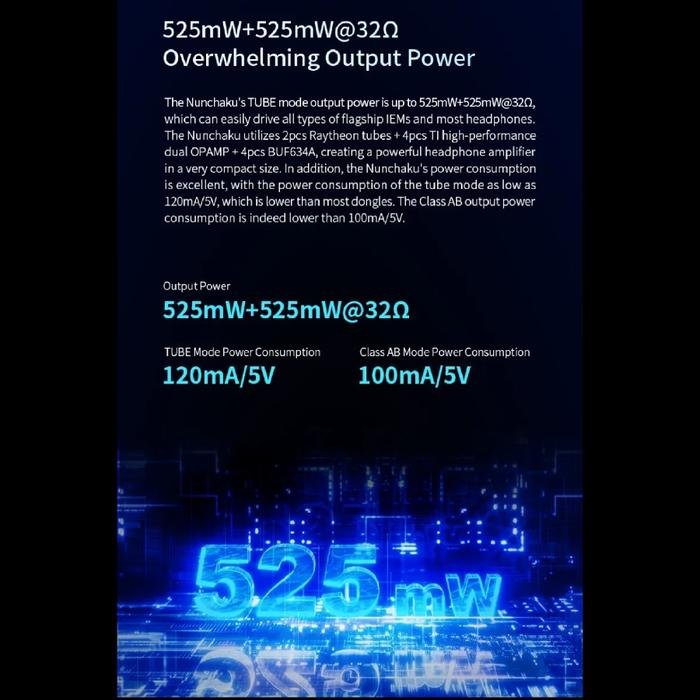

•Output Power: 525mW@320
•S/N: 107dB
•Dynamic Range: 110dB
•Crosstalk: 82dB
•Frequency Response: 15Hz-40kHz ±1dB

3.5mm Single-ended Output (AB Mode)
•THD+N: -115dB (0.00017%) @1kHz 6000 Load
•Output Voltage:
1.4Vrms (Low Gain)
2Vrms (High Gain)
•Output Power: 125mW@32Ω
•S/N: 125dB
•Dynamic Range: 125dB
•Crosstalk: 116dB
•Frequency Response: 15Hz-40kHz ±0.5dB

3.5mm Single-ended Output (TUBE Mode)
•Output Voltage:
1.15Vrms (Low Gain)
2.25Vrms (High Gain)
•Output Power: 150mW@320
•S/N: 112dB
•Dynamic Range: 112dB
•Crosstalk: 82dB
•Frequency Response: 15Hz-40kHz ±1dB
