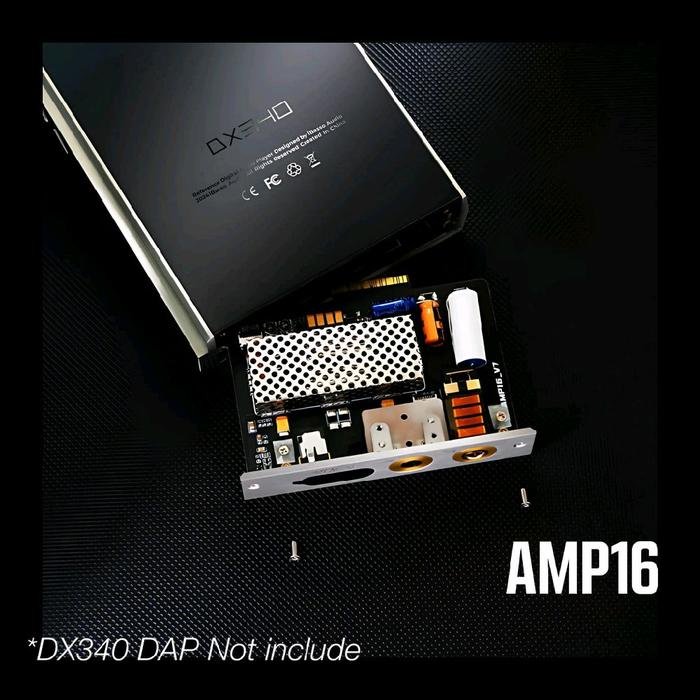

iBasso AMP16 / AMP17
Amp Card for DX340

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

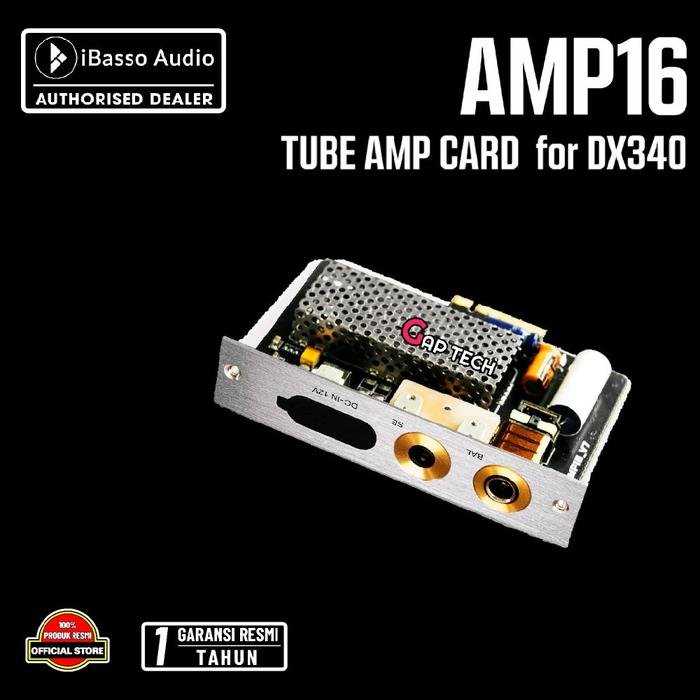

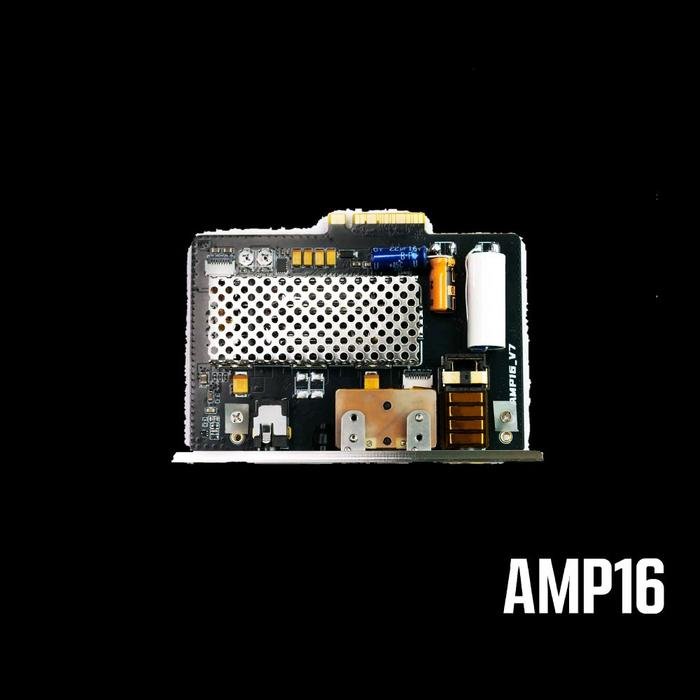

SPECIFICATIONS (AMP16)
Class AB Mode
4.4mm Balanced Output
•Output Level: Super Gain 8.3Vrms, High Gain 6.0Vrms
•Output Power: 2000mW + 2000mW @ 32Ω (12V DC-IN) 1000mW + 1000mW @ 32Ω (Battery)
•THD+N: -117dB (A-weighted, 300Ω load)
•SNR: 122dB
•Dynamic Range: 122dB
•Frequency Response: 10Hz – 40kHz ±0.5dB
•Crosstalk: -120dB
3.5mm Single-End Output
•Output Level: Super Gain 4.1Vrms, High Gain 3.0Vrms
•Output Power: 500mW + 500mW @ 32Ω (12V DC-IN) 260mW + 260mW @ 32Ω (Battery)
•THD+N: -108dB (A-weighted, 300Ω load)
•SNR: 120dB
•Dynamic Range: 120dB
•Frequency Response: 10Hz – 40kHz ±0.5dB
•Crosstalk: -117dB
Tube Mode
4.4mm Balanced Output
•Output Level: Super Gain 7.5Vrms, High Gain 4.6Vrms
•Output Power: 1500mW + 1500mW @ 32Ω (12V DC-IN)
660mW + 660mW @ 32Ω (Battery)
•Frequency Response: 20Hz – 40kHz ±1dB
3.5mm Single-End Output
•Output Level: Super Gain 3.75Vrms, High Gain 2.3Vrms
•Output Power: 400mW + 400mW @ 32Ω (12V DC-IN)
150mW + 150mW @ 32Ω (Battery)
•Frequency Response: 20Hz – 40kHz ±1dB

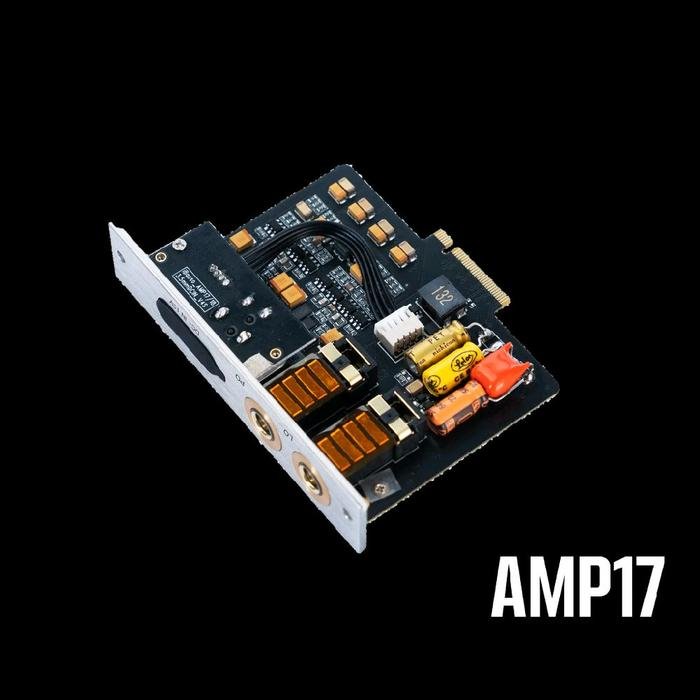

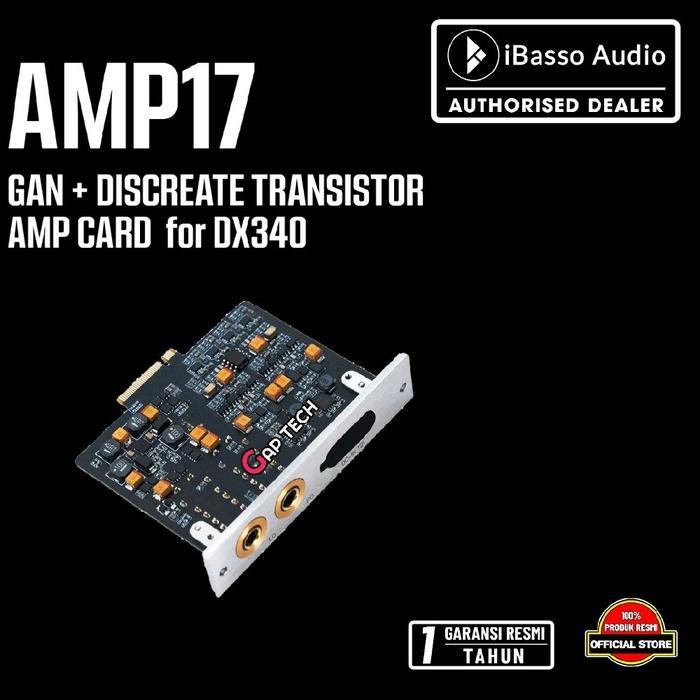

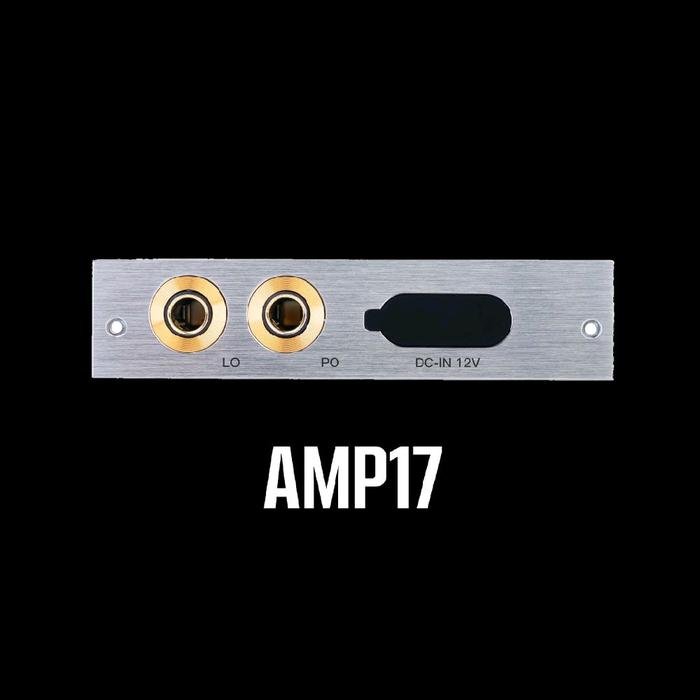

SPECIFICATION (AMP17)
4.4mm Balanced PO Output
•THD+N
116dB (No load)
-110dB (600 ohms load)
•Dynamic Range: 120dB
•SNR: 122dB
•Crosstalk: -117dB
•Frequency Response: 10Hz-40kHz (+/- 0.5dB)
•Output Impedance: 1.1 ohms
•Output Power: 1030mW + 1030mW@32 ohms (Battery powered)
•Output Power: 1900mW + 1900mW@32 ohms (12V DC Power supply)
4.4mm Balanced LO Output
•THD+N: -116 (No load)
•Dynamic Range: 126dB
•SNR: 123dB
•Crosstalk: -97dB
•Output Level
1.6Vrms (Low gain)
2.6Vrms (Mid gain)
3Vrms (High gain)
