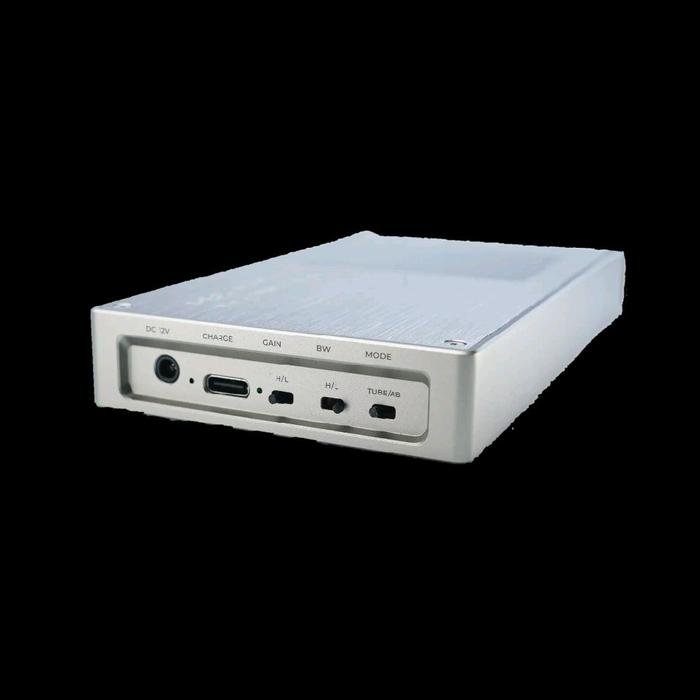

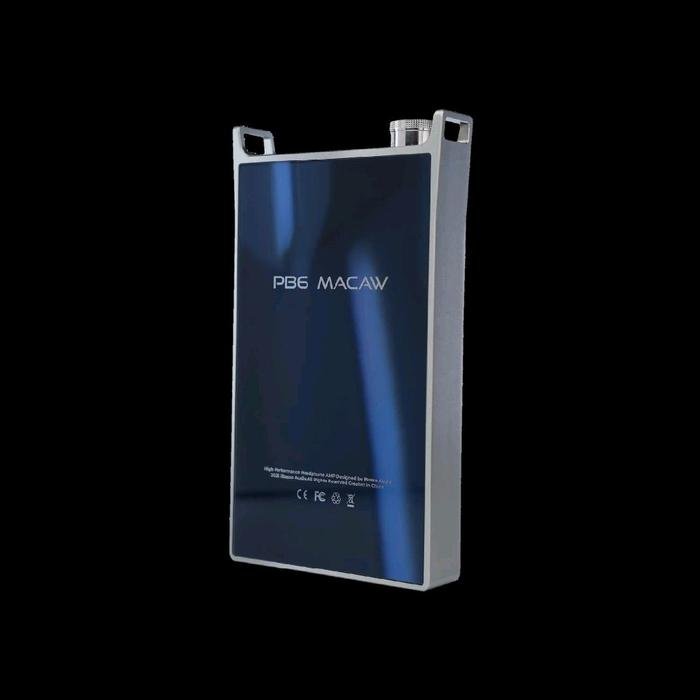

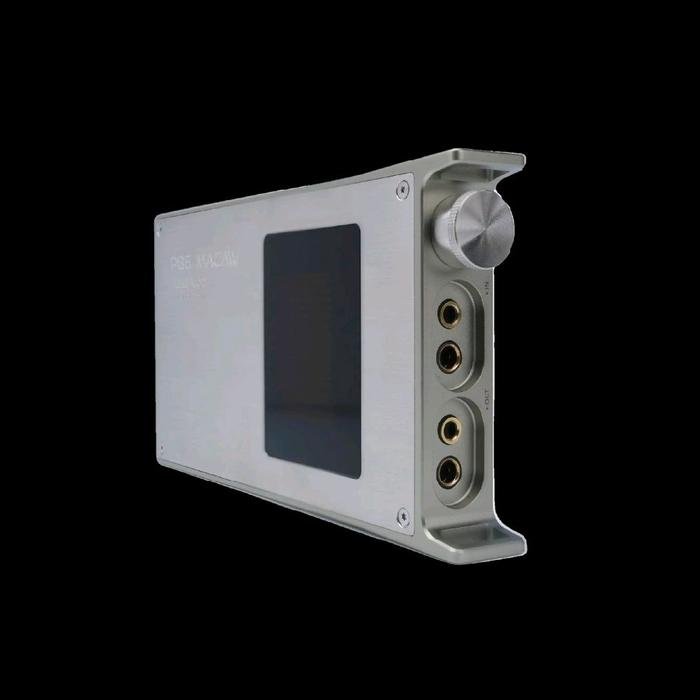

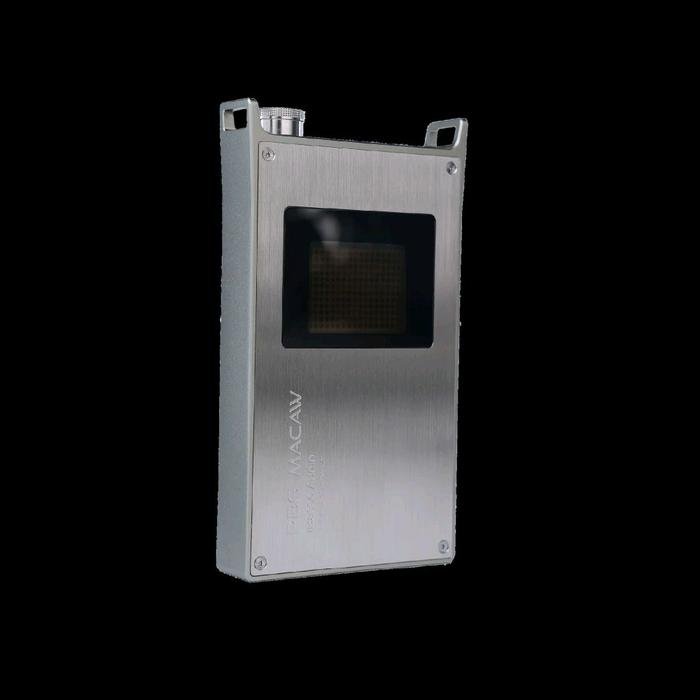

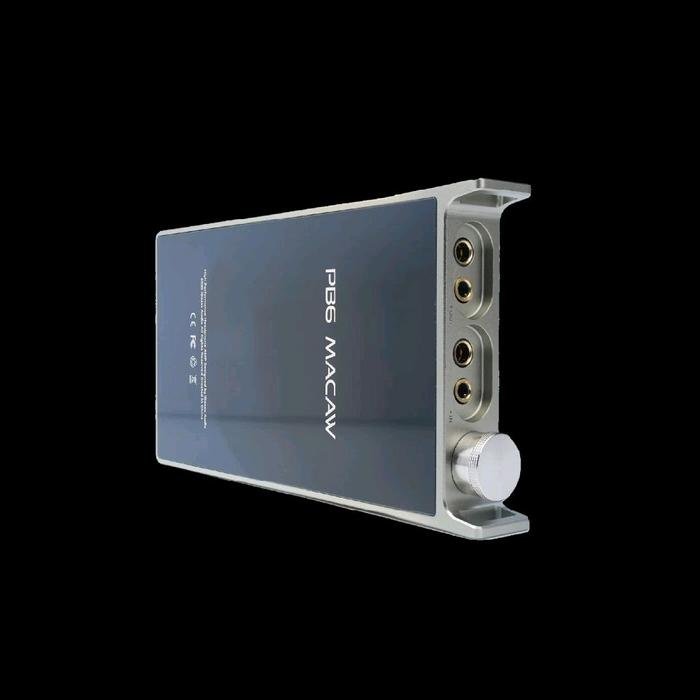

iBasso PB6 / PB 6 Macaw Balanced Portable Tube Amp Headphone Amplifier

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ High Output Power Headphone Amp
◉ Powered by four Military-Grade JAN6418 Tubes
◉ Supports both Tube and Class AB output modes for different flavors
◉ Perfectly matched 4-channel output
◉ Desktop-grade performance

SPECIFICATION
•Average Play Time
13.5 hours (Class AB mode/ BAL output/ high gain/ low bandwidth)
9.5 hours (Tube mode/ BAL output/ high gain/ low
•Charging Time: 2.5hrs
•Size: 140.7mm x 78.9mm x 19.6mm
•Weight: 293g

4.4mm Input to 4.4mm Output
•Gain: Low gain+6dB, high gain+12dB (Class AB Mode)
Low gain+8dB, high gain+14dB (Tube Mode)
Note: When using 3.5mm Input and 4.4mm Output, this will result an additional +6dB gain.
•THD+N: -112dB（2V Input 300Ω Load) (Class AB Mode）
•Frequency Response: 10Hz-80kHz -0.1dB（Class AB Mode）
15Hz-80kHz -0.5dB（Tube Mode）
•Dynamic Range:
125dB (Class AB Mode)
116dB (Tube Mode)
•Crosstalk:
135dB（Class AB Mode) 100dB（Tube Mode）
•Maximum Output Level：9.5Vrms（DC 12V）
8.5Vrms (Battery)
•Maximum Output Power：2300mW+2300mW@32ohm (DC 12V, THD
1600mW+1600mW@32ohm (Battery, THD
•Output Impedance: 1.2ohm
•Noise Floor: 2.3μV

3.5mm Input to 3.5mm Output
•Gain:
Low gain+6dB, high gain+12dB (Class AB Mode)
Low gain+9dB, high gain+15dB (Tube Mode)
•THD+N：-110dB（1V Input 300Ω Load) (Class AB Mode）
•Frequency Response:
10Hz-80kHz -0.1dB（Class AB Mode）
15Hz-80kHz -0.5dB（Tube Mode）
•Dynamic Range:
125dB (Class AB Mode)
110dB (Tube Mode)
•Crosstalk：
121dB（Class AB Mode）
100dB（Tube Mode）
•Maximum Output Level：4.6Vrms（DC 12V）
4.5Vrms (Battery)
•Maximum Output Power：660mW+660mW@32ohm（DC 12V, THD
660mW+660mW@32ohm（Battery, THD
•Output Impedance: 0.5ohm
Noise Floor: 1.8μV
