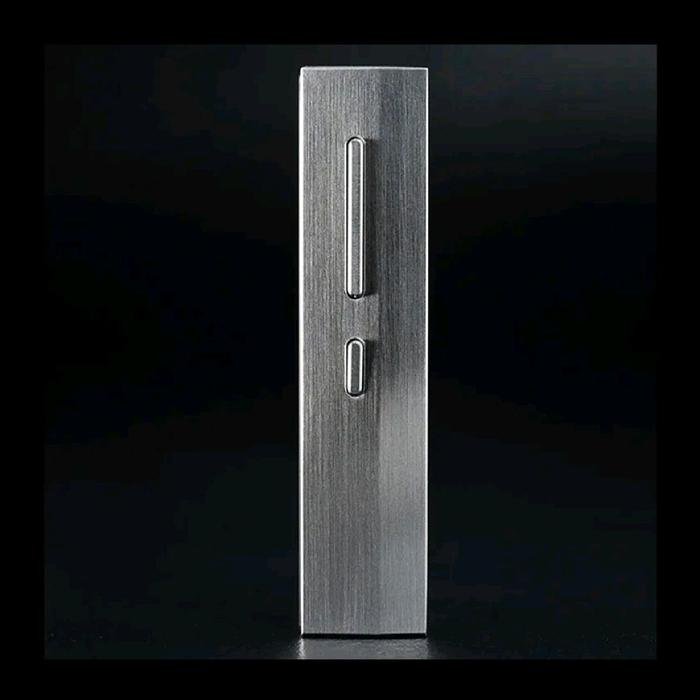

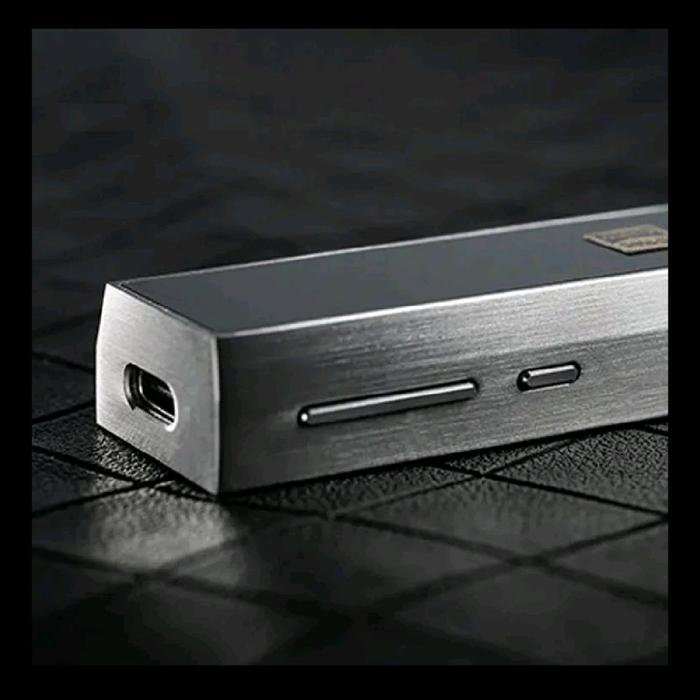

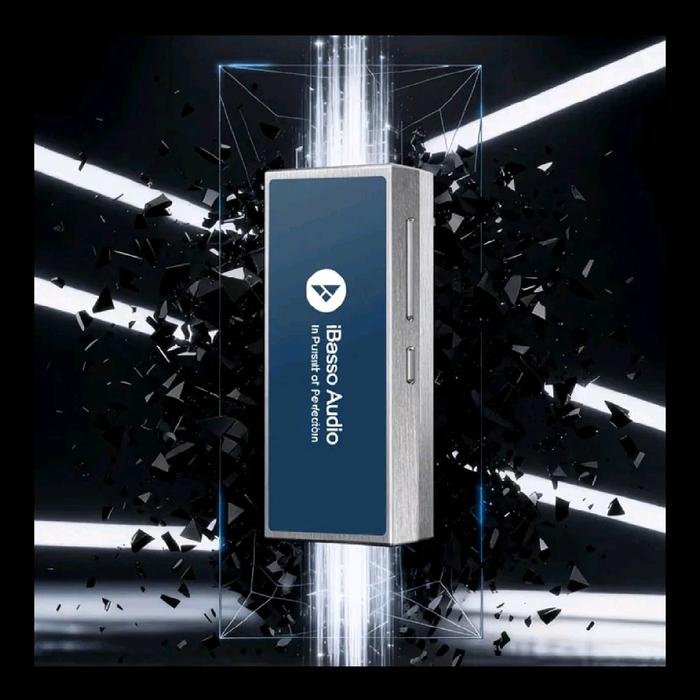

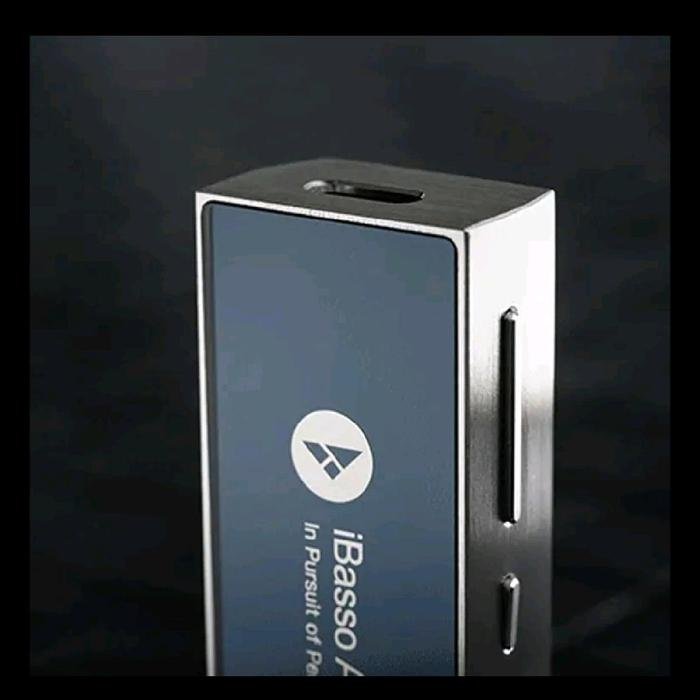

iBasso DC04 Ultra
High Power Portable Dongle DAC and Headphone Amplifier

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ 980mW + 980mW@32Ω Powerful output.
◉ Supports 3.5mm microphone for talking.
◉ UAC1.0 + UAC2.0 support.

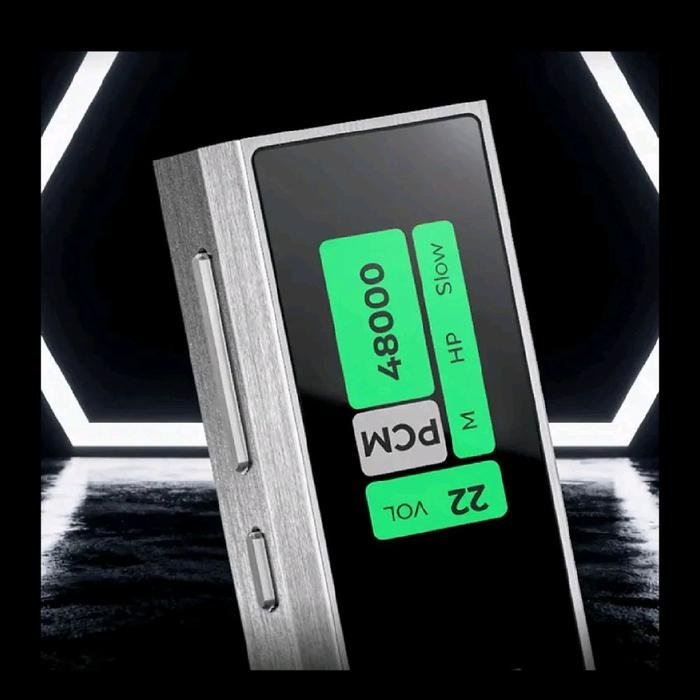

◉ Fully laminated vibrant screen + physical buttons, all settings are integrated into the device.
◉ Full-featured Android APK + 10-band PEQ for precise sound control.
◉ CS43198 DAC, THD+N: -119dB.
◉ FPGA + system operation, system operation, and system operation.
◉ DSD512, PCM 32bit/768kHz.
◉ Mechanical CNC, mechanical lumbar CNC.
◉ 4.4 mm + 3.5 mm.

SPECIFICATIONS
•DAC
CS43198 ×2
•PCM
32bit/768kHz
•DSD
Native DSD asli 512x
•Output Levels
4.4mm: 1.5Vrms (Penguatan Rendah) | 4.2Vrms (Penguatan Sedang) | 6.1Vrms (Penguatan Tinggi)
3.5mm: 0.76Vrms (Penguatan Rendah) | 2.1Vrms (Penguatan  Sedang | 3Vrms (Penguatan Tinggi)
•Output Power
4.4mm: 980mW + 980mW@32Ω Distortion 3.5mm: 280mW + 280mW@32Ω Distortion •Signal-to-Noise Ratio
4.4mm: 132 dBA
3.5mm: 126 dBA
•Dynamic Range
4.4mm: 132 dB
3.5mm: 129 dB
•Output Impedance
4.4mm: 3.5mm: •Separation
4.4mm: 148 dB
3.5mm: 136 dB
•Frequency Response
4.4mm: 10 ~  80000Hz (-0.5dB)
3.5mm: 5 ~ 75000Hz (-0.5dB)
•THD+N
4.4 mm: -119 dB (0.00011%) @ 1 kHz Beban 300 Ω
3.5 mm: -113 dB (0.00022%) @ 1 kHz Beban 300 Ω
•Dimensions
58 × 23.5 × 13.1 mm
•Weight
37 g
