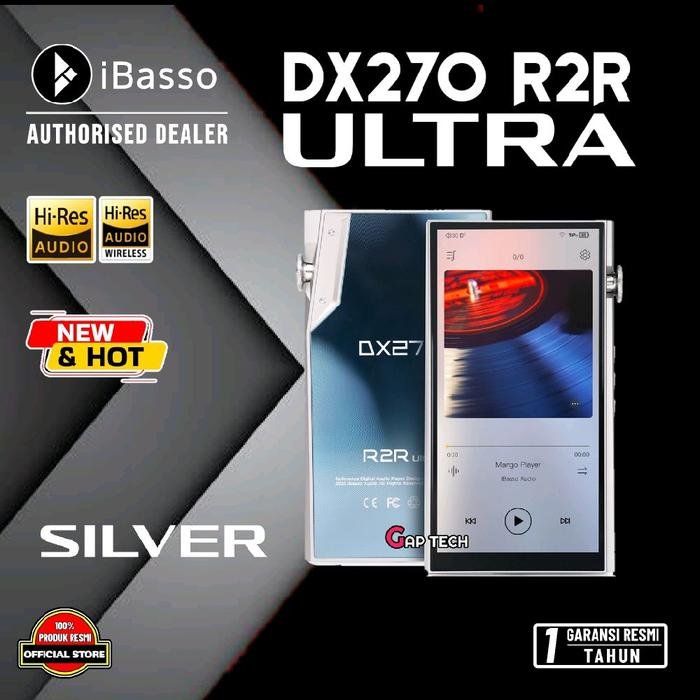

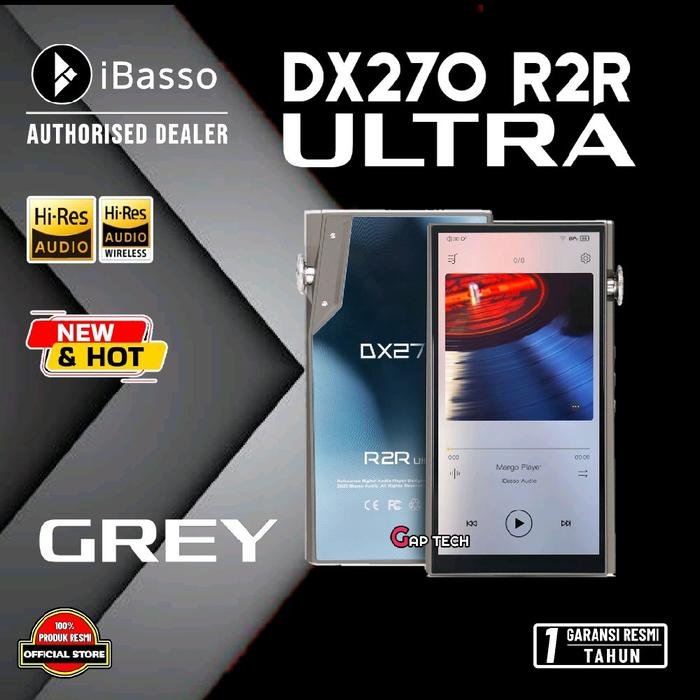

iBasso DX270 R2R Ultra
Premium Digital Audio Player

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES

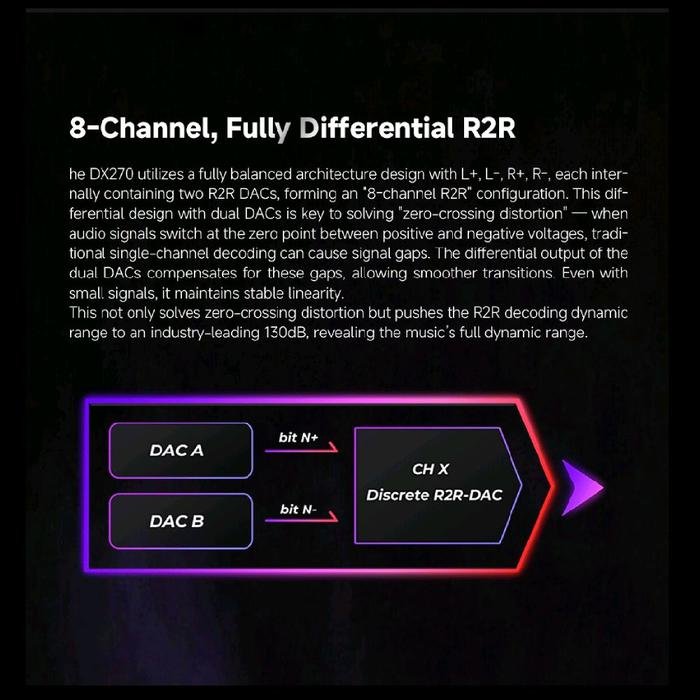

◉ 8-Channel R2R, fully differential design

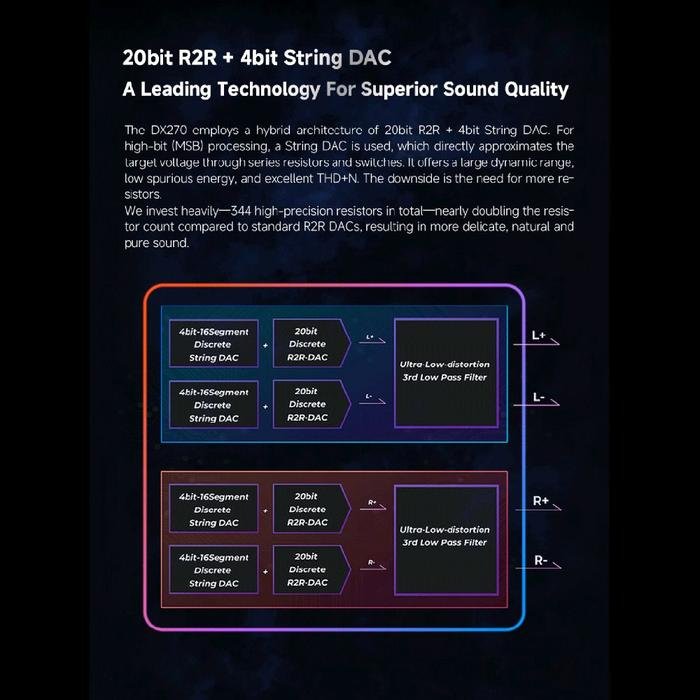

◉ 20bit R2R + 4bit String DAC
◉ Qualcomm Snapdragon 665 SoC
◉ FPGA-Master 3.0 inside, supporting NOS mode and four in-house developed digital filters

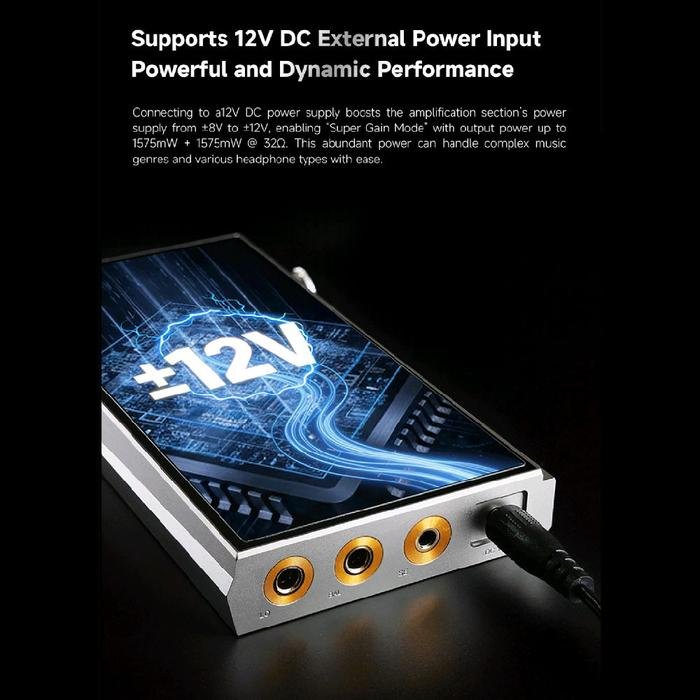

◉ Supports 12V DC external power input
◉ Features 4.4mm BAL + 3.5mm SE outputs
The iBasso DX270 Reimagines R2R From the Ground Up With its R2R Ultra Architecture, Delivering Exceptional Linearity and Remarkably Low Distortion

SPECIFICATIONS
•Model: DX270
•Chassis Material: Aluminum alloy
•Screen: 5.5inch, 1080*2160 resolution, In-cell capacitive touch screen
•Audio Formats: APE, FLAC, WAV, WMA, ACC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD, DST, including CUE, ISO, M3U, M3U8
•USB: USB-C USB 3.1 (high-speed data transfer and fast charging)

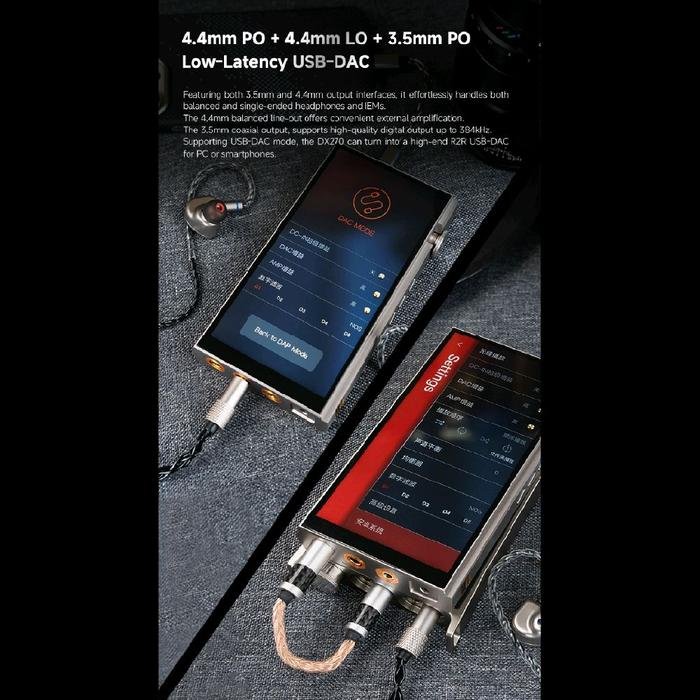

•Output Port: 4.4mm Balanced Phone Out, 4.4mm Balanced Line Out, 3.5mm
Single-ended Phone Out, 3.5mm Coaxial Output, USB Digital Output
•WiFi: 802.11a/b/g/n/ac（2.4Ghz/5Ghz）
•Bluetooth: V5.0
•Storage：4G RAM +128G ROM, supports Micro SD card up to 2TB
•Battery: 4400mAh, 3.8V Li-polymer battery
•Charging Time: 2.3 hours
•Play Time: Up to 13.5 hours (The play time varies with different gains, resolutions,volume used and headphone/IEM loads.)
•Size：136mm x 73.5mm x 19mm
•Weight：265g
4.4mm Balanced Phone Out
•Output Voltage: 7.3Vrms (12V DC-IN), 6Vrms (Battery)
•Output Power: 1575mW + 1575mW @32Ω, THD
@32ohm，THD＜0.1% (Battery)
•Frequency Response: 10Hz-40kHz, -1dB
•Signal-to-Noise Ratio: 128dB
•Dynamic Range: 128dB
•THD+N: -95dB (A-weighted, 600Ω load)
•Crosstalk: 135dB
•Output Impedance: 0.7Ω

3.5mm Single-Ended Phone Out
•Output Voltage: 3.7Vrms (12V DC-IN), 3Vrms (Battery)
•Output Power: 416mW + 416mW @32Ω, THD
•Frequency Response: 10Hz-40kHz, -1dB
•Signal-to-Noise Ratio: 122dB
•Dynamic Range: 122dB
•THD+N: -91dB (A-weighted, 600Ω load)
•Crosstalk: 118dB
•Output Impedance: 0.5Ω

4.4mm Balanced Line Out
Voltage: 4Vrms (DAC High Gain), 3Vrms (DAC Low Gain)
Frequency Response: 10Hz-40kHz, -1dB
Signal-to-Noise Ratio: 130dB
Dynamic Range: 130dB
THD+N: -97dB (A-weighted, 200kΩ load)
Crosstalk: 135dB
