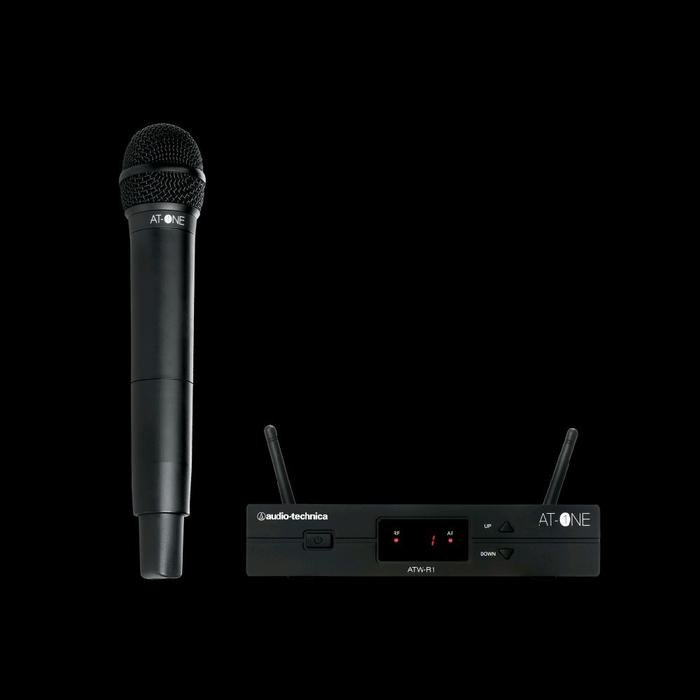

Audio Technica ATW-13DE3 AT-One Handheld Transmitter System

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ Designed for quick and easy use
◉ Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
◉ The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
◉ Users can choose up to 4 channels in a group
◉ The ATW-13 system is equipped with a cardioid condenser handheld transmitter
◉ RF transmission power 10mW
◉ Up to 10 hours' battery life with 2 x 1.5V AA batteries
◉ RF Indicator light
◉ Robust construction from high quality components
◉ Delivered in a transport case with a rack mount kit and detachable antennas

SPECIFICATIONS
Overall System
•Operating Frequencies DE3 Band: 482 - 512 MHz
•Number Of Channels
2 x 4 frequencies
•Frequency Stability +/- 0.005%, Phase lock loop frequency control
Modulation Mode FM
•Frequency Response
60 Hz - 16 kHz
•Operating Range
60m, typical

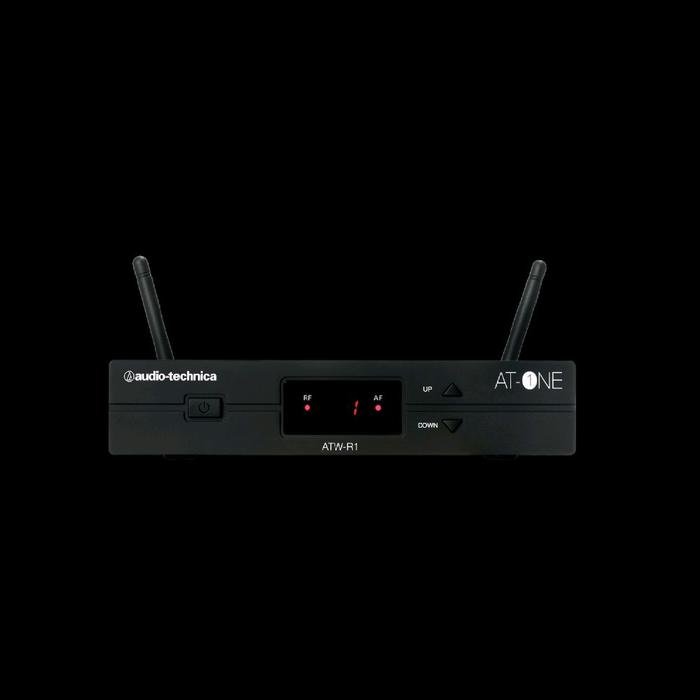

Receiver
•Receiving System
Antenna switching diversity
•Image Rejection
55dB minimum
•Dynamic Range
HH: 108 dB, BP 103 dB (@ max deviation)
•Sensitivity
10dBµV (S/N 60dB @ 20 kHz deviation)
•Total Harmonic Distortion
•Audio Output Unbalanced
-2dBV
•Audio Output Balanced
4dBV
•Output Connectors (Microphone) Balanced: XLRM-type
•Output Connectors (Instrument) Unbalanced: 6.3 mm mono jack
•Maximum Output Level
Mic / Line (0 / -20dB)
•Antenna Input
BNC type, 50 - BIAS voltage 12V DC 100mA each
•Dimensions
200 mm x 42 mm x 122 mm (W x H x D)
•Weight 418 g without accessories

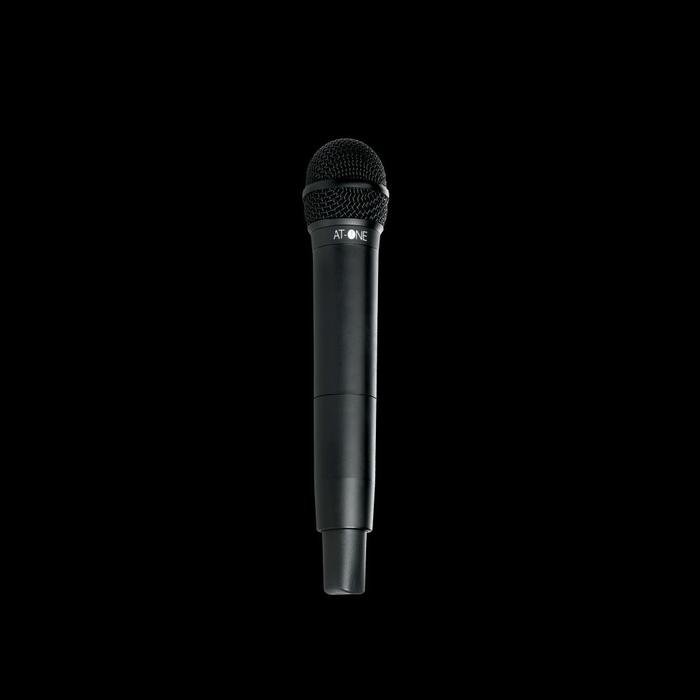

Handheld Transmitter
•RF Power Output
10 mW
•Spurious Emissions
Following national regulatios
•Microphone Element
Condenser Cardioid
•Battery Type Two 1.5V AA alkaline
•Battery Life
10 hours - depending on battery type and use pattern
•Dimensions 268 mm long - 52 mm (diameter)
