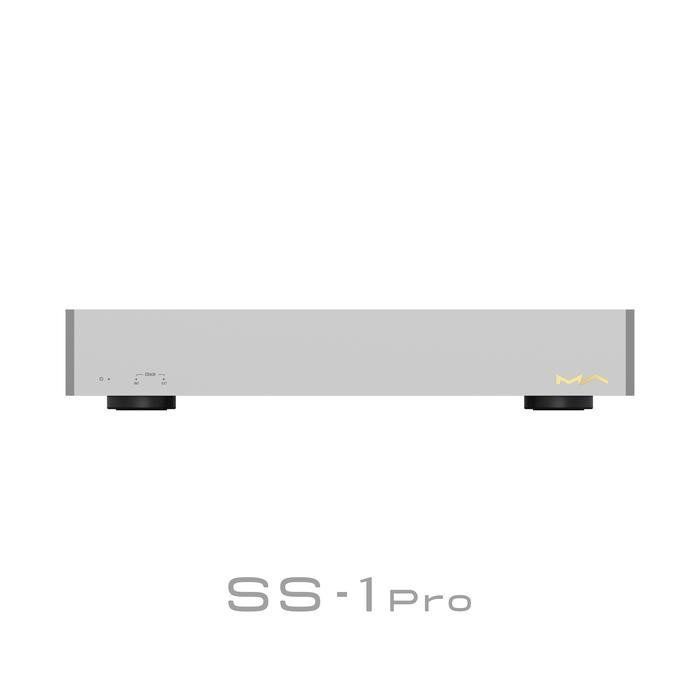

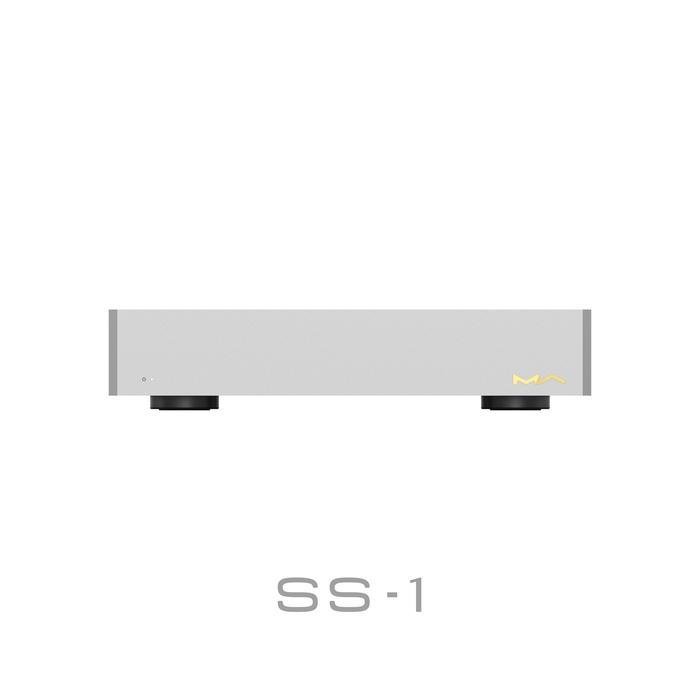

MATRIX AUDIO SS-1 / SS-1 PRO Audio Grade Desktop Network Switch Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

SpecificationsStandards and ProtocolIEEE 802.3：10BASE-T
IEEE 802.3 u：100BASE-X
IEEE 802.3 z：1000BASE-T
IEEE 802.3 ab：1000BASE-T
IEEE 802.3 ae：10G BASE-SR/LR
IEEE 802.3 bz：2.5G/5G BASE-T
IEEE 802.3 cb：2500BASE-X

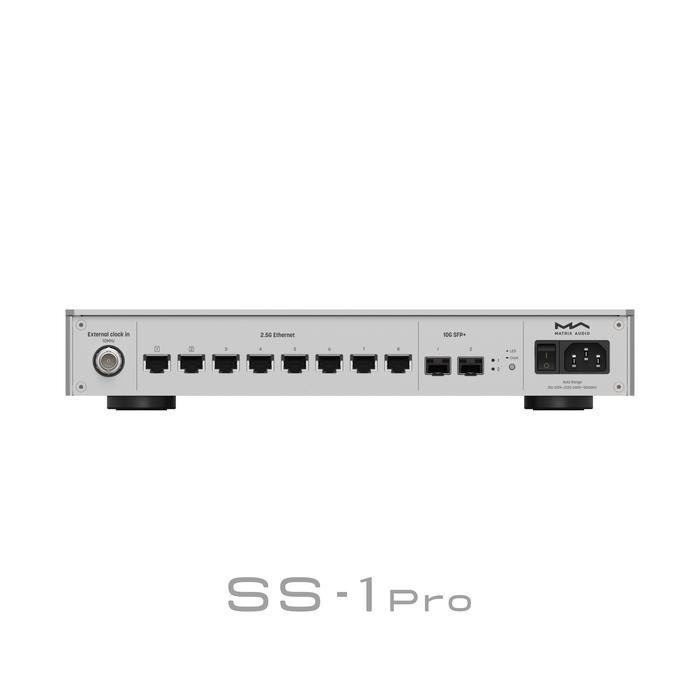

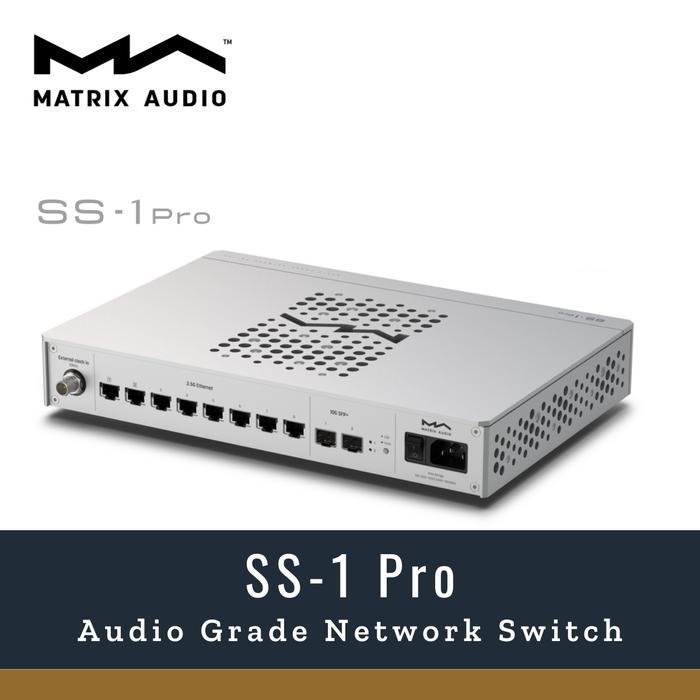

PortsSS-1 Pro
2x 100Mbps/10Mbps RJ45
6x 2.5Gbps/1Gbps/100Mbps/10Mbps RJ45
2x 10Gbps SFP/SFP+

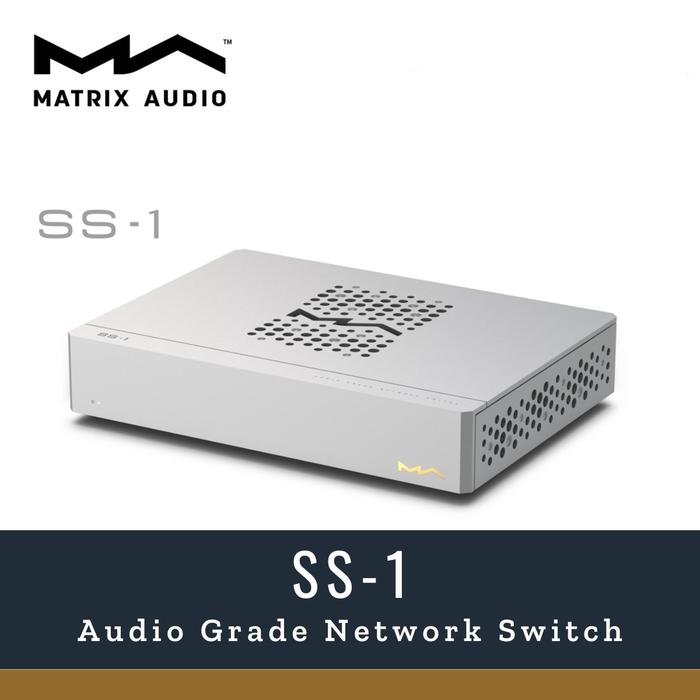

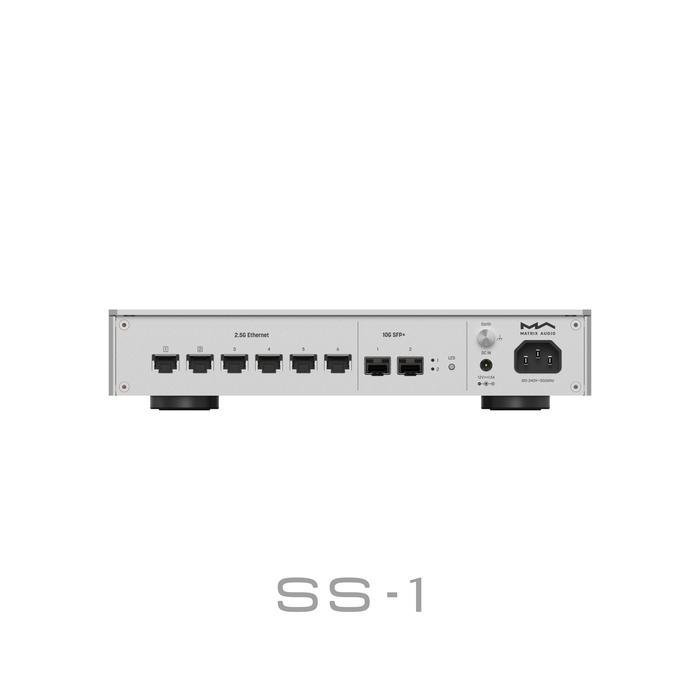

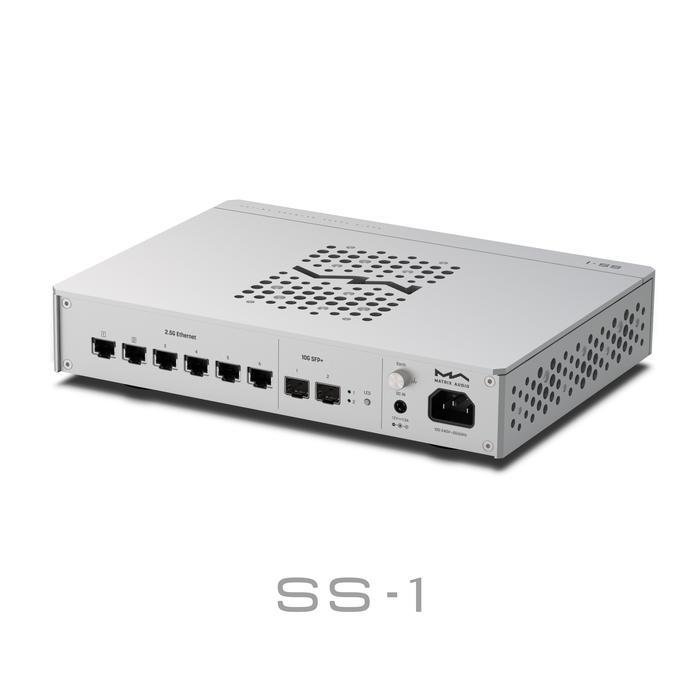

SS-1
2x 100Mbps/10Mbps RJ45
4x 2.5Gbps/1Gbps/100Mbps/10Mbps RJ45
2x 10Gbps SFP/SFP+

External Clock InputExclusive on SS-1 Pro
10MHz / 50Ω impedance / Sine wave or square wave input

LED Indicators1x LED - Power/Status
2x LED - Clock mode (SS-1 Pro only)
Each LAN Port has 2 LEDs - Speed, Link & Activity

Max MAC entries16K MAC address table

Power SpecsSS-1 Pro
AC input
Power Supply Type: Auto voltage range linear power supply
Power Voltage: AC 100V-120V 50/60Hz / AC 220V-240V 50/60Hz. Voltage auto adaptive.
Power Consumption: < 15W

SS-1
AC input
Power Supply Type：Wide voltage input switching power supply
Power Voltage: AC 100V-240V 50/60Hz
Power Consumption: < 15W

DC input
External power voltage: DC 12V ±10%
External power wattage: Larger than 18W
Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)

Weight & sizeSS-1 Pro
Weight
Dimensions
3.4kg (7.50 pounds)
Width: 330 mm (12.99 inches)
Depth: 235 mm (9.25 inches)
Height: 58.5 mm (2.30 inches)

SS-1
Weight
Dimensions
2.3kg（5.07 pounds）
Width: 280 mm (11.02 inches)
Depth: 206 mm (8.11 inches)
Height: 58.5 mm (2.30 inches)
