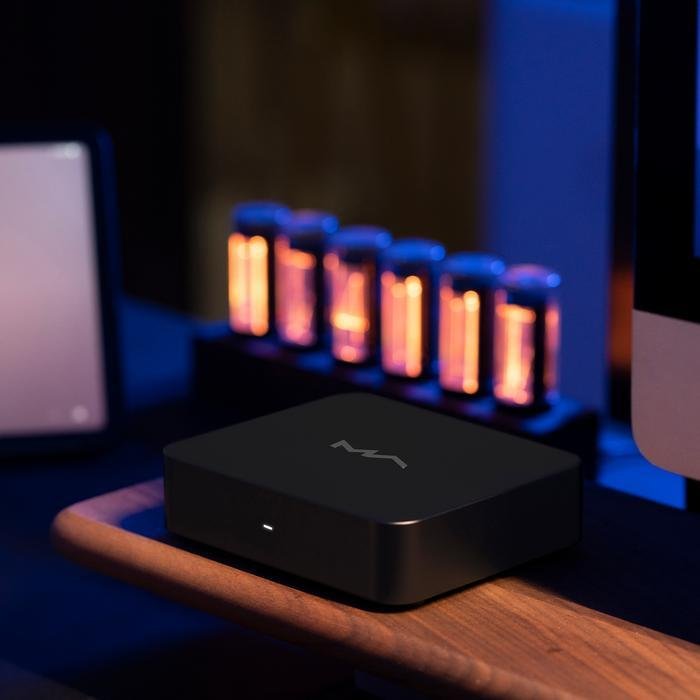

MATRIX Audio X-SPDIF3 USB Digital Audio Interface Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

SpecificationsSupported Sample Rate Optical/Coaxial/AES : PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD64 (DoP)Supported Sample Rate IIS-LVDS : PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
DSD 64/128/256/ (DoP), DSD 64/128/256/512 (Native)
NOTE: Please see the X-SPDIF3 user manual for the IIS-LVDS definition.
System Support : Windows7/8/8.1/10/11 system needs to install the supplied driver.
Mac OS X10.6.4 or above without installing the driver.
Most Android devices can be used via OTG cable.
The iOS devices can be used via Lightning to USB Camera Kit.
Weight : 1 kg (2.2 pounds)
Size : Width: 142 mm (5.59 inches), Depth: 124 mm (4.88 inches), Height: 38 mm (1.53 inches)
Power Supply SpecsUSB bus power supply: 5V/1000mA
External power supply: DC 12V, ≥400mA
Power supply plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, – for outer)
NOTE : The input power supply should not be higher than 12V, otherwise the product could be damaged.
The USB bus power supply will be disconnected when the external power supply is connected.
An external power supply is required when using the product with low USB output current devices such as mobile phones or tablets.
