Matrix Audio MD-1P Hifi Music Streamer and Integrated Amplifier Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

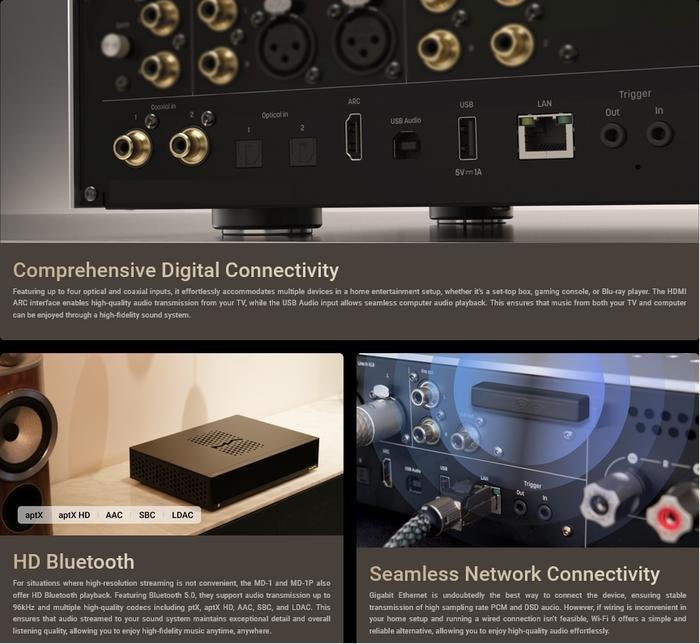

Digital Input
COAXIAL & OPTICAL
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSD 2.8MHz (DoP)
HDMI ARC
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
USB Audio
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

Output Power：2 x 300WRMS@8Ω
Output impedance：＜3mΩ
Frequency Response：20-20kHz ±0.1, 45kHz@-3dB
SNR：122dB A-weighting
Crosstalk：-120dB
Gain：+33dB

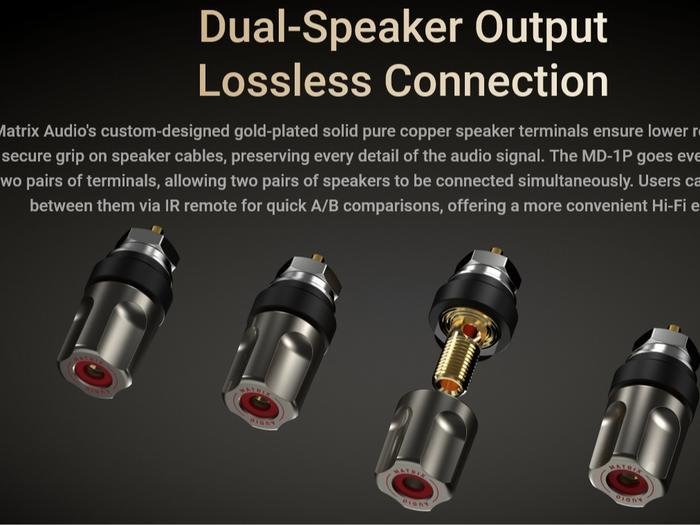

Speaker Impedance：A or B 2–16Ω, A and B 4-16Ω

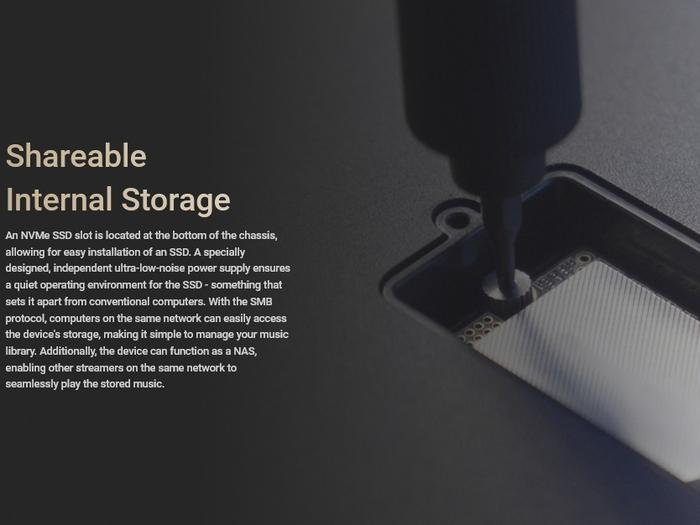

Storage ExtensionM.2 2280 2242 2230 NVMe PCIe SSD slot
SSD supporting PCIe 3.0/4.0/5.0 standards，The maximum power specification provided by the expansion slot is DC 3.3V3A.

PowerPower Voltage
AC 100V-240V 50/60Hz
MD-1P
Standby Power Consumption:
Idle Power Consumption: < 45W
MAX Power Consumption: < 1250W

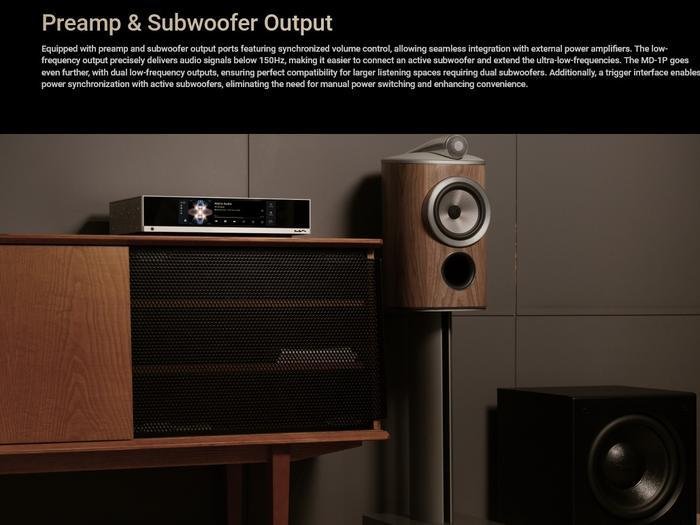

Pre outRCA
Output Impedance：< 20Ω
Output Level：0~2.2VRMS Adjustable
SNR: 120dB A-weighting
THD+N: < 0.0005%@1k，< 0.0005%@20Hz-20kHz
Frequency Response：20Hz-20kHz ±0.2 -3dB@80kHz
Crosstalk：> -115dB
SUB
Output Impedance：< 20Ω
Cutoff Frequency：150Hz
Output Level：0~2.2VRMS Adjustable

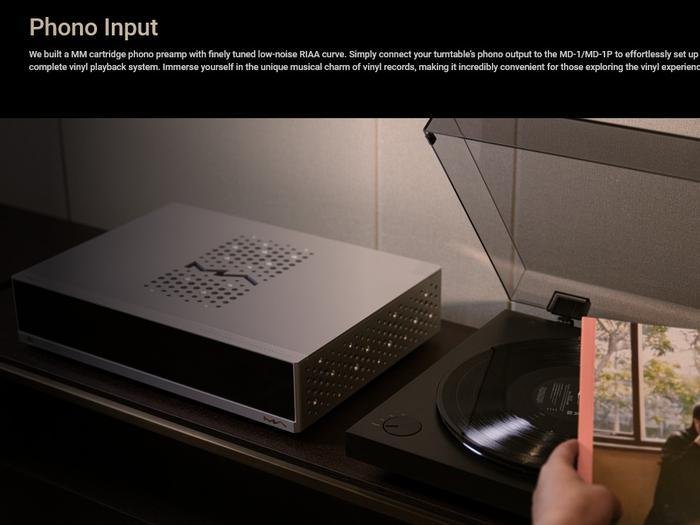

Phono InputMM Phono Stage
Frequency Response：RIAA
Input Impedance：47kΩ/100pF
Gain：+40dB

AccessoriesPower cable *1
IR Remote *1
Printed material *1
