MATRIX AUDIO TS-1 Desktop Music Streamer with Headphone Amplifier Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

SpecificationsDigital InputCOAXIAL & OPTICAL
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSD 2.8MHz (DoP)
HDMI ARCPCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHzUSB Audio
PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

Aux InSNR
100dB A-weighting
THD+N
< 0.004%@1k,
Frequency Response
20Hz-20kHz ±0.1 -3dB@40kHz
Crosstalk
>-105dB
MAX Input Level
2.1VRMS

Line OutXLR
SNR：123dB A-weighting
THD+N：< 0.00018%@1k, < 0.00022%@20Hz-20kHz
Frequency Response：20Hz-20kHz ±0.1 -3dB@80kHz
Crosstalk：>-140dB
Output Level：4.5VRMS @ 0dB / 0~4.5VRMS Adjustable
RCA
SNR：120dB A-weighting
THD+N：< 0.00020%@1k,
Frequency Respons：20Hz-20kHz ±0.1 -3dB@80kHz
Crosstalk：> -120dB
Output Level：2.2VRMS @ 0dB / 0~2.2VRMS Adjustable
SUB
Cutoff Frequency：150Hz@-3dB
Output Level：2.2VRMS @ 0dB / 0~2.2VRMS Adjustable

Headphone Output4.4mm Blanced
SNR：119dB A-weighting
THD+N：< 0.0004%@20Hz-20kHz 4VRMS
Frequency Response：20Hz-20kHz ±0.5 -3dB@22kHz
Output Impedance：< 2Ω
Output Power：1000mW@33Ω, 1000mW@300Ω, 500mW@600Ω, 1%THD
Gain：+12dB
6.35mm Unbalanced
SNR：116dB A-weighting
THD+N：< 0.0004%@20Hz-20kHz 2VRMS
Frequency Response：20Hz-20kHz ±0.5 -3dB@22kHz
Output Impedance：< 1Ω
Output Power：1400mW@33Ω, 250mW@300Ω, 130mW@600Ω, 1%THD
Gain：+12dB

NetworkLAN
10/100/1000 MbpsWi-Fi2.4 GHz / 5 GHz

USB2 x USB 3.0
The USB port provides a maximum power of 5V/1A.
The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

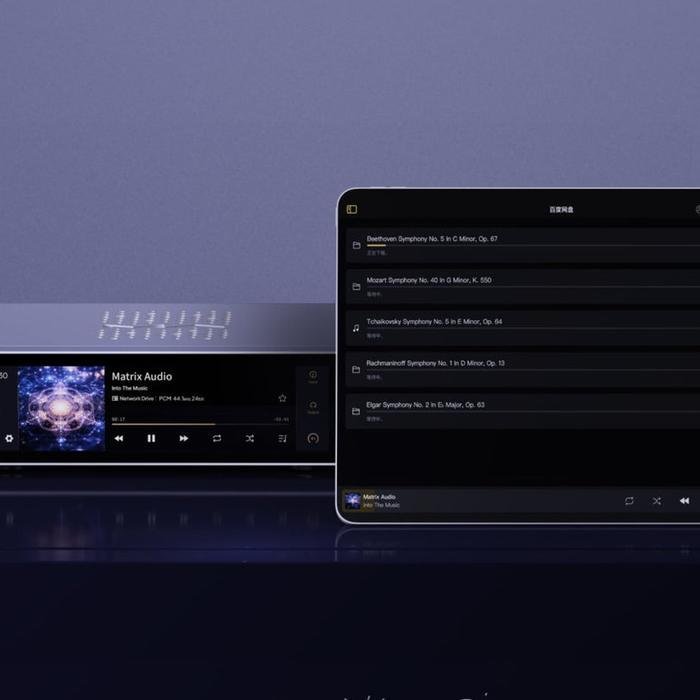

MA PlayerController appMA Remote App
Local Playback
Format Supported：MP3、WMA、WAV、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF、CUE、ISO
PCM  16-24Bit/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz
DSD  2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz
Roon Ready
PCM  16-24 Bit /44.1 kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz
DSD  2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz
QQ
The audio specs depend on the service provider
AirPlay 2The audio specs depend on the service providerDLNA/UPnPThe audio specs depend on the service providerTIDAL ConnectThe audio specs depend on the service providerSpotify ConnectThe audio specs depend on the service providervTunerThe audio specs depend on the service providerRadio ParadiseThe audio specs depend on the service provider

TriggerTrigger in
DC 6-12V
Trigger out
DC 12V/50mA MAX

Storage ExtensionM.2 2280 2260 2242 NVMe PCIe SSD slot

SSD supporting PCIe 3.0/4.0/5.0 standards，The maximum power specification provided by the expansion slot is DC 3.3V3A.

Power AC input
Wide voltage switching power supply
Power Voltage: AC 100V-240V 50/60Hz
Standby Power Consumption: < 5W
MAX Power Consumption: < 35W

DC input
External power voltage: DC 12V ±10%
External power wattage: Larger than 36W
Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer)

Weight & sizeWeight
2.89kg (6.37 pounds)

Dimension
Width: 280 mm (11.02 inches)
Depth: 210 mm (8.27 inches)
Height: 82 mm (3.23 inches)

AccessoriesPower cable *1
IR Remote *1
Printed material *1
