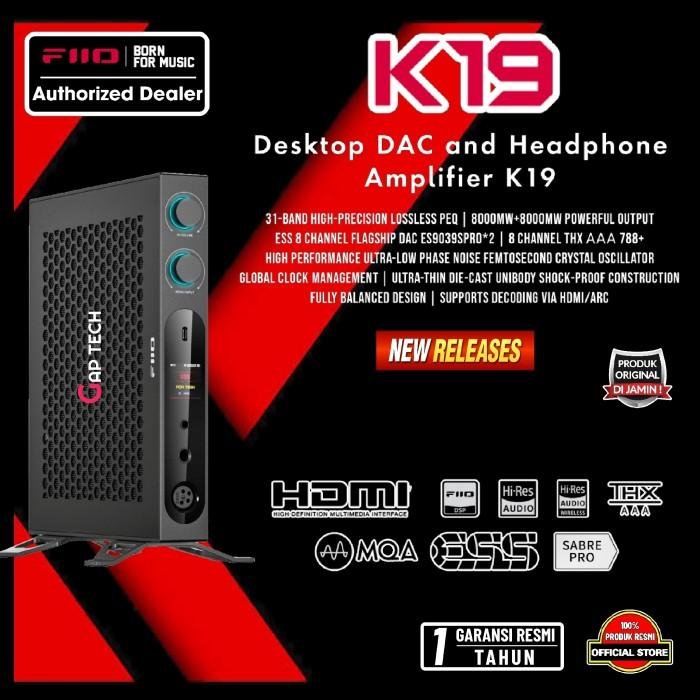

Fiio K19
Premium Desktop DAC and Headphone Amplifier with Flagship DAC ES9039SPRO*2

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ 31-band high-precision lossless PEQ
◉ 8000mW+8000mW powerful output

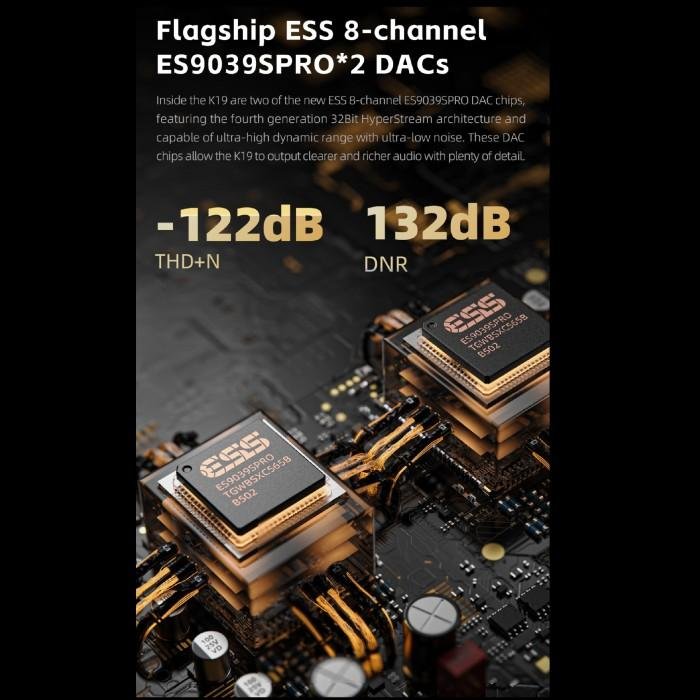

◉ ESS 8 channel flagship DAC ES9039SPRO*2

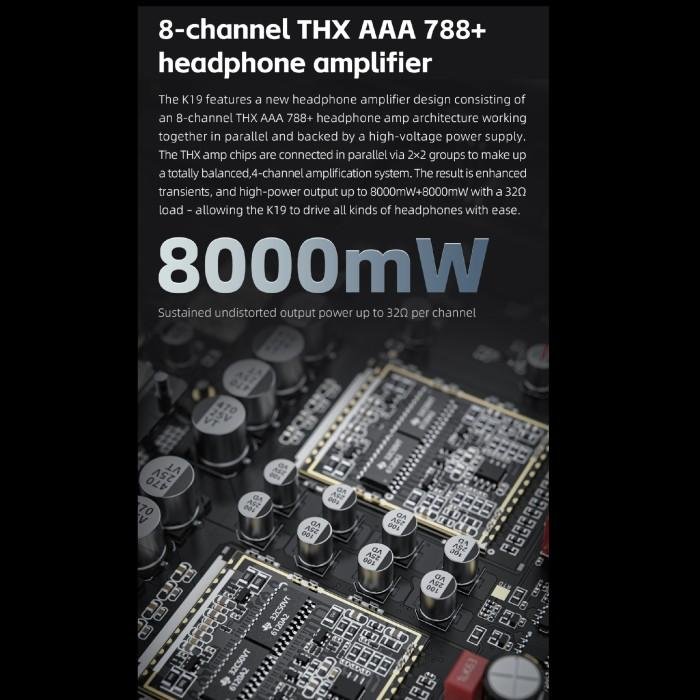

◉ 8 channel THX ΑΑΑ 788+
◉ High performance ultra-low phase noise femtosecond crystal oscillator
◉ Global clock management

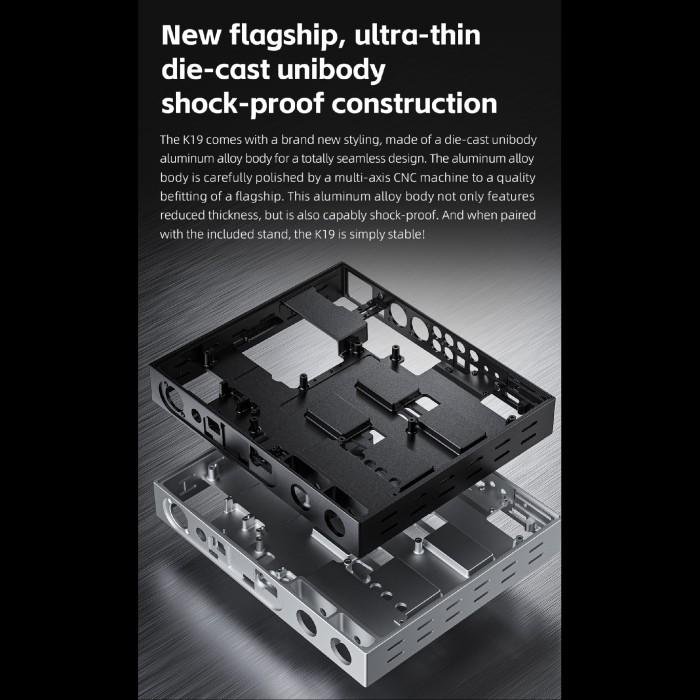

◉ Ultra-thin die-cast unibody shock-proof construction
◉ Fully balanced design

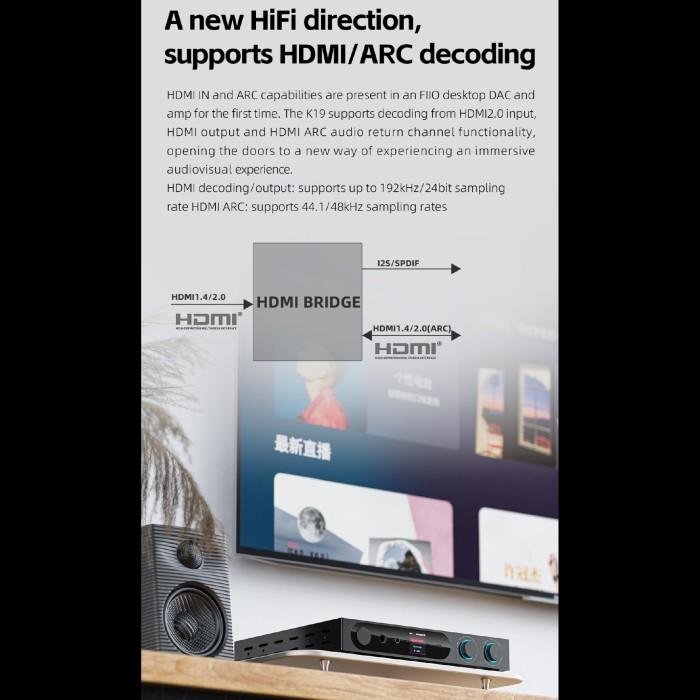

◉ Supports decoding via HDMI/ARC

SPECIFICATIONS
•Name/Model No. K19
•Working mode USB DAC mode/Coaxial decoding mode/Optical decoding mode/HDMI decoding mode/HDMI ARC decoding mode/Bluetooth receiving mode
•Dimensions:
About 250x225x36.7mm
•MQA: Support MQA global decoding
•Gain: Ultra high gain/Super high gain/High gain/Medium gain/Low gain
•Display: 1.30-inch TFT (240*240) fully laminated screen
•Bluetooth format indication: Surpported
•FIIO Control : Surpported
•Remote control:
Supports infrared remote control (only the delivered remote control is supported)
•Maximum supported sampling rate: USB decoding: supports up to 768kHz/32bit; DSD512 (Native)
Coaxial input decoding: supports up to 192kHz/24bit; DSD64
Optical input decoding: supports up to 96kHz/24bit
Coaxial output: supports up to 192kHz/24bit; DSD64
Optical fiber output: supports up to 192kHz/24bit
HDMI decoding: supports up to 192kHz/24bit
HDMI output: supports up to 192kHz/24bit
HDMI ARC decoding: supports 44.1/48kHz
•Adaptation impedance
PO：8~150Ω
BAL：8~350Ω
•Hardware solution:
DAC: ES9039SPRO*2;
USB: XMOS XU316;
Bluetooth decoding: QCC5125;
AMP: 8-way THX788+
•Weight: About 1800g
•Volume control type:
Knob/Remote control
•Drive-free mode (Switch mode): Surpported
•Bluetooth reception (5.1):
SBC/AAC/aptX/aptX LL/aptX HD/atpX Adaptive/LDAC
•Display status indication:
Display indication: volume, gain, output mode, working mode, transmission format, sampling rate, EQ, etc.
•Sample rate indication:
Surpported
•Firmware upgrade :
System firmware: upgrade through front panel USB interface
XMOS firmware: upgrade via front or rear panel USB interface
Bluetooth Firmware: Upgrade via FIIO Control
•Sample rate indication
(Knob indicator light):
Blue: 44.1/48kHz
Yellow:88.2/96/176.4/192/352.8/384/705.6/768kHz
Green: DSD64/128/256/512
Magenta: MQA
•Bluetooth format indicator
(Knob indicator light):
Bule: SBC
Cyan: AAC
Purple: aptX/aptX LL
Yellow: aptX HD
Green: aptX Adaptive
White: LDAC
