WiiM Vibelink Amp
Premium Power Amplifier with Premium ESS 9039Q2M DAC and TI TPA3255

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ Premium Build, Modern Aesthetic
◉ High-Fidelity Audio with Premium Components
◉ Post Filter Feedback Technology
◉ Advanced Thermal Management
◉ Smart, Energy-Efficient Performance
◉ Pure Analog Input - No ADC Conversion, No Compromise
◉ Bit Perfect Music Playback - Pure High-Resolution Sound
◉ The Perfect Match for WIIM Streamers

SPECIFICATION
•Dimensions： 7.9 x 7.9 x 2.58 inches (200 x 200 x 63 mm)
•Weight： 2.05 kg (4.5 lbs)
•Power input: 100-240V, 50/60Hz AC, 3A Max
Power & Amplification
• Output Power : 100W per channel at 8Ω (stereo)
• Amplifier Technology : Class-D with PFFB (Post-Filter Feedback) technology
• Total Harmonic Distortion (THD+N) : ≤0.0005%
• Signal-to-Noise Ratio (SNR) : ≥120dB
• Frequency Response: 20Hz – 20kHz ± 0.5dB
• Impedence Range: 3~8 ohms

Audio Processing
• Premium DAC : ESS 9039Q2M high-performance DAC
• Bit-Perfect Playback : Supports up to 192kHz/24-bit audio
• Dynamic Range : ≥120dB for high-resolution sound
• Pure Analog Input : No ADC conversion, maintaining signal integrity

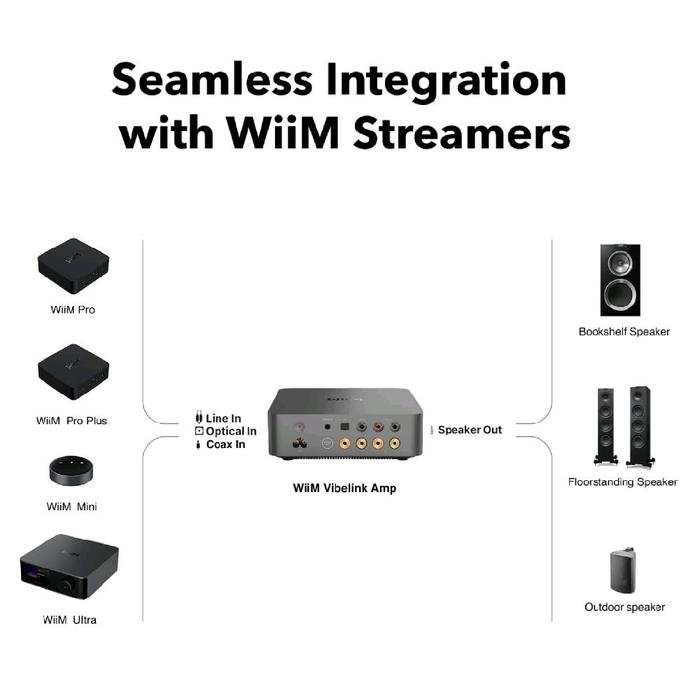

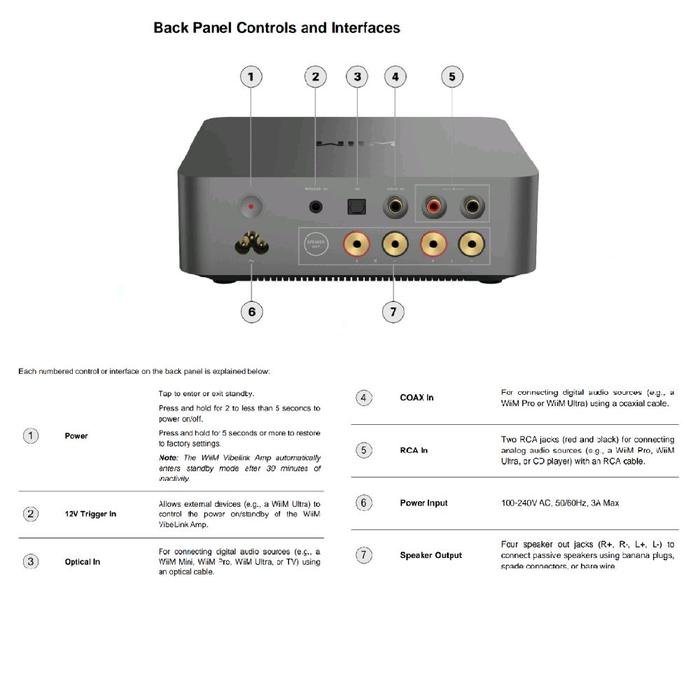

Input & Output Options
◉Analog Inputs:
• 1x RCA Stereo (Line-In, pure analog signal path)
◉Digital Inputs:
• 1x Optical (TOSLINK) – Up to 192kHz/24-bit
• 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit
◉Speaker Outputs:
• Gold-plated binding posts (supports banana plugs or bare wire connections)
◉Trigger & Power Management:
• 12V Trigger In: Auto power-on with compatible devices
• Auto Standby Mode: Powers down after 30 or 60 minutes of inactivity

Supported Audio Formats:
PCM up to 192kHz/24-bit (through digital sources)
Control Interfaces
Volume Knob: Adjusts volume
LED Indicator: Three 4-color RGBW LED indicates source input and device status
Build & Design

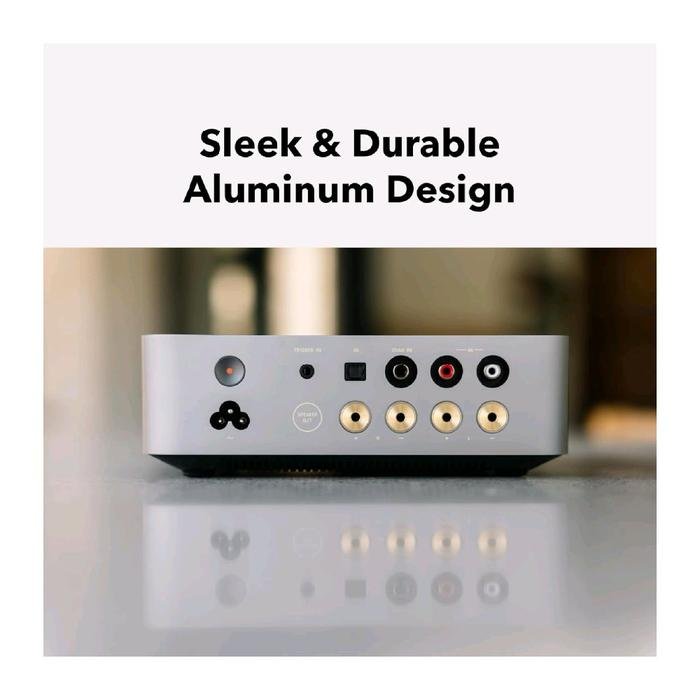

• Chassis: Premium unibody aluminum for durability & heat dissipation
• Thermal Management: Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control
• Cooling System: Passive, silent operation
