Cambridge Audio DacMagic 200M
MQA HiFi DAC and Headphone Amplifier with Bluetooth

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 2 TAHUN

FEATURES

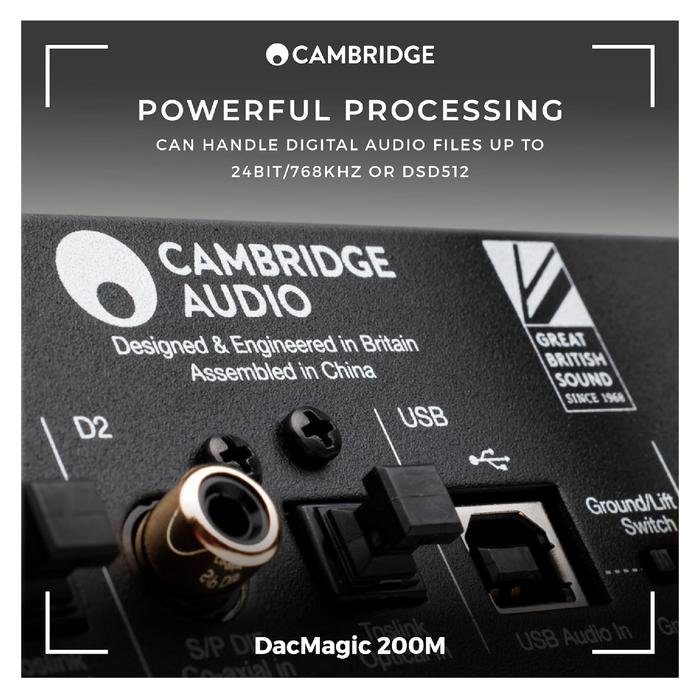

◉ Dual ESS SABRE ES9028Q2M Reference DACs – one per channel, handles digital audio up-to 24-bit/768kHz or DSD512

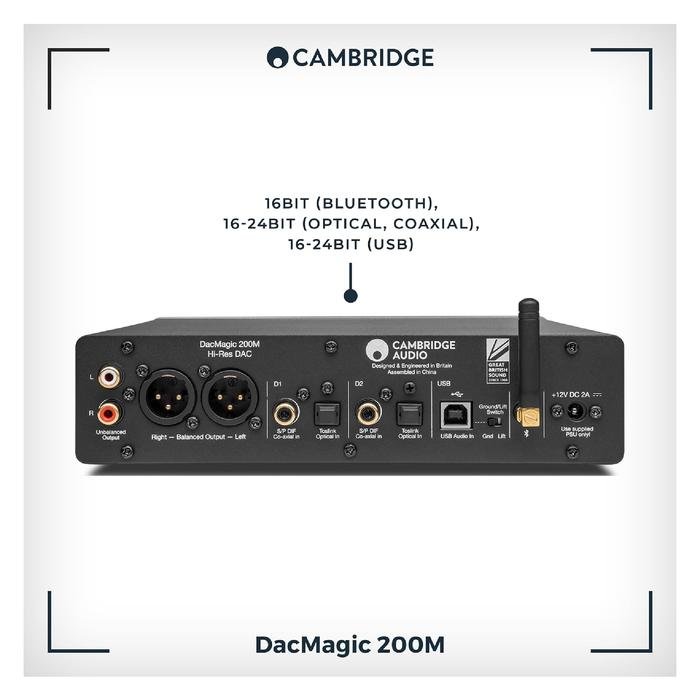

◉ Digital Inputs: 2 pairs of optical & coaxial terminals, plus USB Audio – for audio sources incl. CD & Blu-ray players, laptops, games consoles etc.
◉ Analogue Outputs: ¼” headphone, XLR & RCA connectors – for max. versatility
◉ Bluetooth aptX input – wirelessly receive digital audio from smart devices
◉ Supports MQA – for approved studio-quality digital audio
◉ Compact half-width hi-fi unit – available in lunar grey or special edition black

SPECIFICATIONS
•DIGITAL TO ANALOGUE CONVERTERS
Dual ESS ES9028Q2M DACs

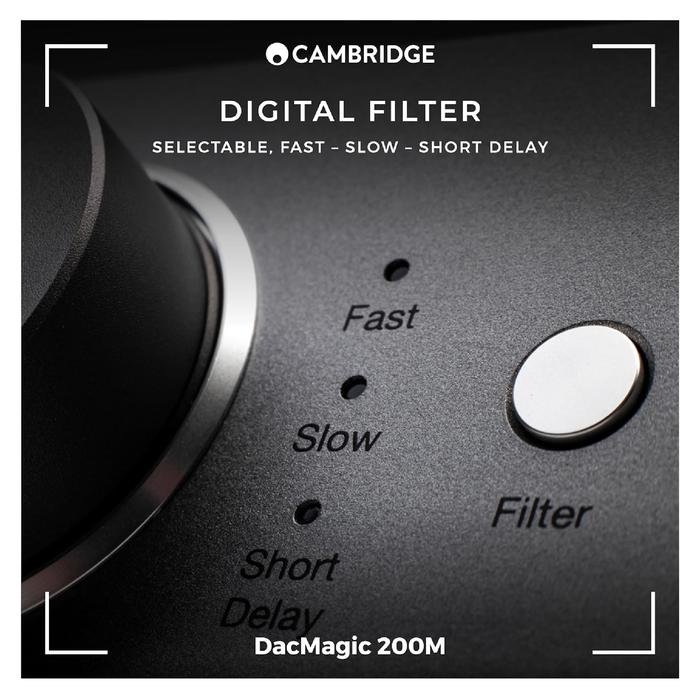

•DIGITAL FILTER
Selectable, Fast – Slow – Short delay
•FREQUENCY RESPONSE
10Hz to 50kHz (±1dB)
•THD+N @ 1KHZ 0DBFS
•SIGNAL TO NOISE RATIO
>115dB (A-Weighted)
•CROSSTALK @ 10KHZ
< -110dB
•OUTPUT IMPEDANCE
•MAX. OUTPUT LEVEL (UNBALANCED)
2.1V rms (fixed or variable – user selectable)
•MAX. OUTPUT LEVEL (BALANCED)
4.2V rms (fixed or variable – user selectable)
•DIGITAL INPUT WORD WIDTHS SUPPORTED
16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB)
•DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED
44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB)
•MQA COMPATIBILITY
Full decoding (Core + Renderer)
•BLUETOOTH
v4.2, A2DP profile, SBC and AptX codecs
•ROON TESTED
Yes
•HEADPHONE OUTPUT THD+N
< 0.001% at 1kHz 0dBFS @ 100mW into 32ohm
•HEADPHONE OUTPUT S/N
> 115dB (A-Weighted)
•MAX OUTPUT POWER
>300mW @ 32ohm, >65mW @ 150ohm
•FREQUENCY RESPONSE
10Hz - 50kHz (±1dB)
•RECOMMEND HEADPHONE IMPEDANCE
10 Ohm to 600 Ohm
•MAX POWER CONSUMPTION
12W
•COLOUR
Lunar Grey
•DIMENSIONS (HXWXD)
52 x 215 x 191mm; (2.0 x 8.6 x 7.6”)
•WEIGHT
1.2kg/2.6lbs
