iBasso DC-Tonfa 8CH R2R Portable DAC & Headphone Amplifier / DAC Amp

100% PRODUK RESMI
100% PRODUK ORIGINAL
100% BARANG BARU
GARANSI RESMI 1 TAHUN

FEATURES
• Advanced R2R Portable DAC/AMP.

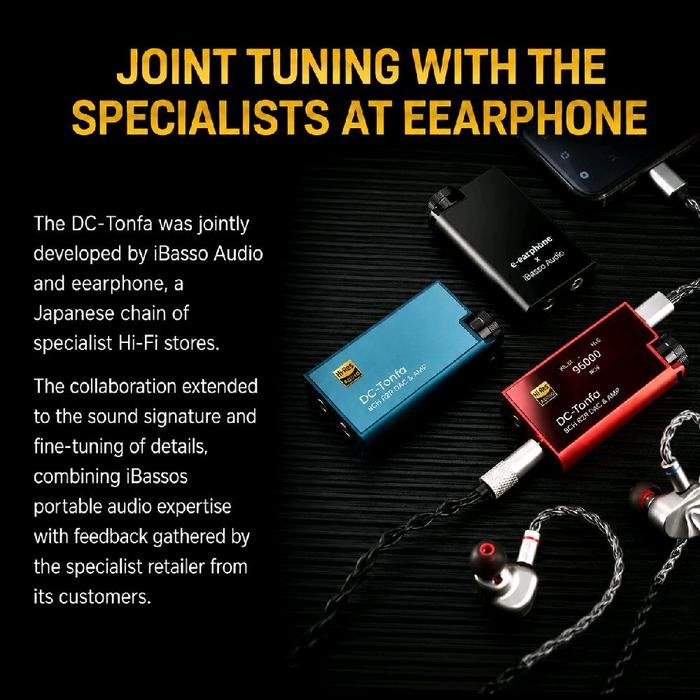

• Co-Developed by iBasso Audio and Japan’s E-Star Earphone.
• True 24-Bit 8-Channel Fully Balanced R2R Architecture.
• Total 312 High-Precision Viking Metal Film Resistors.

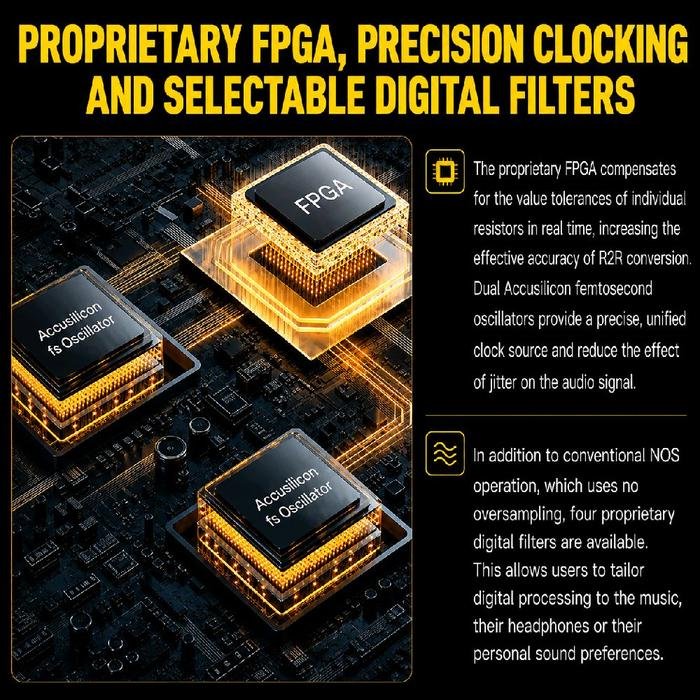

• Proprietary FPGA Algorithm & Dual Accusilicon Femtosecond Clocks.
• Powerful Player-Grade Amplifier Section (2x TI Dual OPAMPs + 4x BUF634A).
• Strong Output: 800mW Per Channel @ 32 ohm
• Linear Technology LT3042 Ultra-Low Noise LDO Power Supply.
• Dedicated NOS Mode + 4 Custom Digital Filters.
• 4.4mm Balanced and 3.5mm Single-Ended Headphone Outputs.
• 0.96” OLED Display Screen.
• Premium Quality Aluminium Alloy Chassis.
• Tempered Glass Front and Back Panels.
• Switchable UAC 2.0 & UAC 1.0 Modes.

SPECIFICATION
• DAC: 8CH R2R DAC
• USB Input: Up to PCM 768kHz
• Up to DSD512x
• Weight: 45g
• Dimensions: 61mm × 34.6mm × 15mm

4.4mm Balanced Headphone Output:
• SNR: 122dB AES17-20k A-wt
• Dynamic Range: 123dB AES17-20k A-wt
• THD+N: 0.004%
• Output Power: 800mW + 800mW @ 32 ohm; THD < 0.5%
• Output Voltage: 5.2Vrms (High Gain)
• Output Voltage: 2.6Vrms (Low Gain)
• Channel Separation: 124dB
• Frequency Response: 10Hz–22kHz (-0.3dB)
• Frequency Response: 10Hz–40kHz (-0.8dB)
• Output Impedance: 0.5 ohm

3.5mm Single-Ended Headphone Output:
• SNR: 118dB AES17-20k A-wt
• Dynamic Range: 115dB AES17-20k A-wt
• THD+N: 0.0056%
• Output Power: 219mW + 219mW @ 32 ohm; THD < 0.1%
• Output Voltage: 2.6Vrms (High Gain)
• Output Voltage: 1.3Vrms (Low Gain)
• Channel Separation: 121dB
• Frequency Response: 10Hz–22kHz (-0.3dB)
• Frequency Response: 10Hz–40kHz (-0.8dB)
• Output Impedance: 0.2 ohm
