iFi Audio ZEN CAN Signature
Premium Hi-Res Desktop Headphone Amplifier

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ Designed for IEMs and headphones with audiophile-grade components for superior sound
◉ Class A discrete balanced circuitry delivers warm and exceptional sound quality.

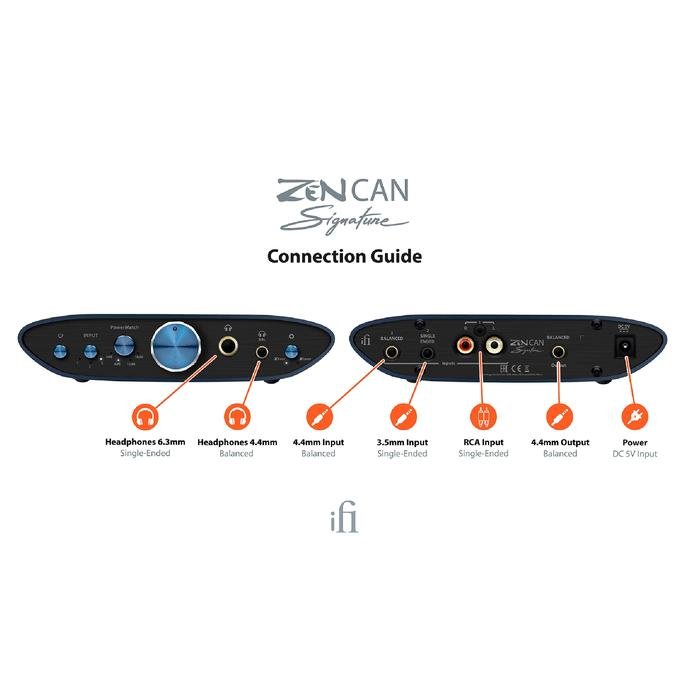

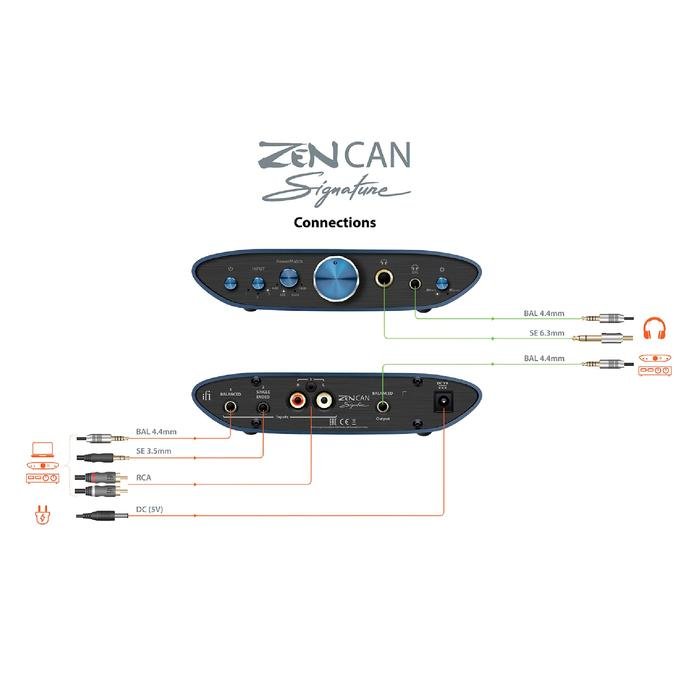

◉ Stereo RCA, 3.5mm single-ended, and 4.4mm balanced inputs
◉ 4.4mm balanced output for balanced headphones and 6.3mm jack for standard headphones

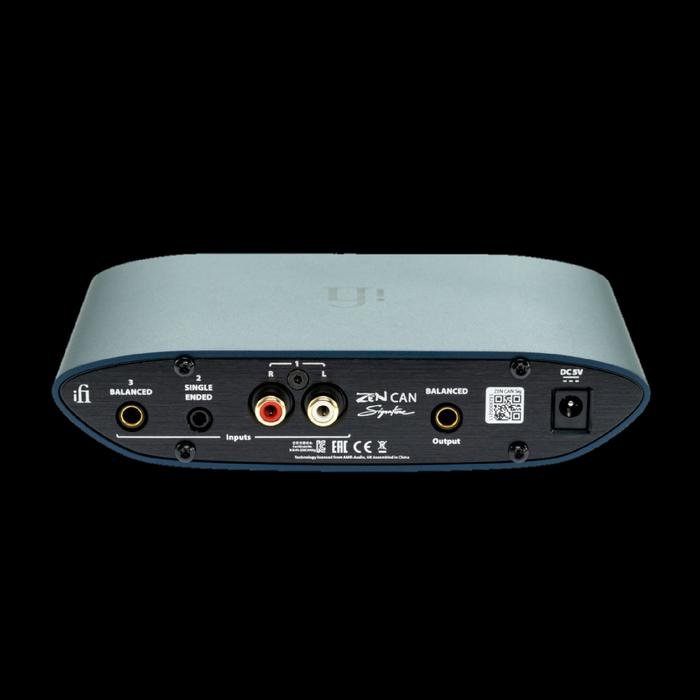

◉ Also includes analogue balanced output on back panel
◉ XSpace and Xbass enhance the soundstage and low-frequency response

TECHNICAL SPECIFICATIONS
•Input Voltage: 5V/2.5A
•Max Output Balanced: >15.1V/385 mW (@ 600 Ohm); >11.0V/1890 mW (@64Ohm); >6.2V/1200 mW (@ 32 Ohm)
•Max Output Single-Ended: >7.6V/98mW (@ 600 Ohm); >7.4V/870 mW (@ 64Ohm); >7.2V/1600 mW (@ 32 Ohm)
•THD&N: •SNR Balanced: >121dBA (@ 15.2V )
•SNR Single-Ended: >120dBA (@ 7.6V )
•Max Output Balanced: 7.4V RMS
•Max Output RCA: 3.8V RMS
•Max Output 3.5mm: 1.92V RMS
•Gain: 0dB, 6dB, 12dB and 18dB
Frequency Response: 10Hz - 200kHz (-3dB)
•Power consumption: No Signal ~5W; Max Signal ~12W
•Dimensions: 158 x 117 x 35 mm (6.2" x 4.6" x 1.4")
•Weight: 550 g (1.21 lbs)

LINE SECTION
•Outputs BAL: 6.7V max. (variable)
•Outputs UNBAL: 3.5V max. (variable)
•Output Impedance BAL: •Output Impedance UNBAL: •SNR BAL: •SNR UNBAL: •THD+N BAL: •THD+N UNBAL:
HEADPHONE SECTION
•Outputs BAL: 6.7V max. @ 600Ω
•Outputs UNBAL: 3.5V max. @ 600Ω
•Output Power BAL: >1000mW @ 32Ω; >74mW @ 600Ω
•Output Power UNBAL: >320mW @ 32Ω; >40mW @ 300Ω
•Output Impedance BAL/UNBAL: •SNR BAL: •SNR UNBAL: •THD+N:
