iFi Audio NEO Stream
Hi-Res Desktop Network Audio Streamer with Integrated DAC

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES
◉ Ultra-Res Wi-Fi/LAN/Internet network audio streamer with integrated DAC
◉ Open-source architecture – works with multiple control apps, evolves continuously

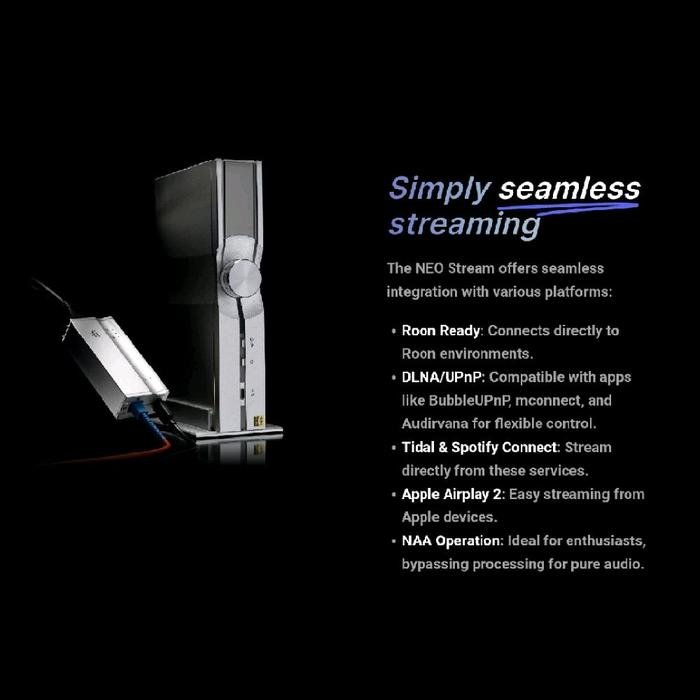

◉ Stream the way you want – Tidal Connect, Spotify Connect, Roon Ready, AirPlay, DLNA/UPnP, NAA and more

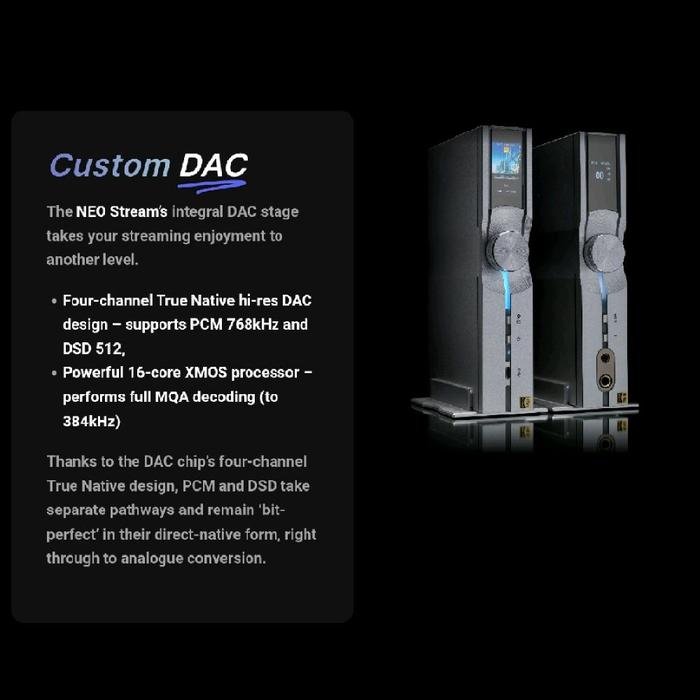

◉ Supports up to 32-bit/768kHz PCM and DSD512 – not just via USB/LAN cables but Wi-Fi too*
◉ Full MQA decoding and true-native DSD
◉ Custom-designed hardware and software – built for exceptional sound
◉ Fully balanced analogue circuitry delivers maximum sonic purity
◉ Four user-selectable digital lters – tailor the sound to suit your music
◉ Exclusive streaming modes – dedicated Tidal, Roon, NAA and DLNA modes for optimised performance
◉ USB and S/PDIF interfaces are regulated by femto-precision clock to eradicate jitter
◉ Active Noise Cancellation (ANC) and iPurier technologies remove distortion from the audio signal

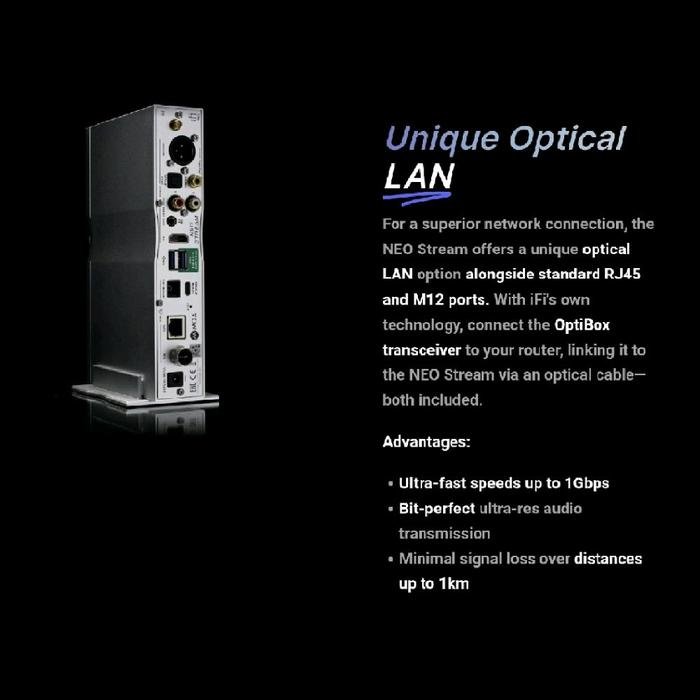

◉ Optical LAN input isolation technology - superior sound quality over gigabit Ethernet connection
◉ SilentLine retina-grade TFT screen with album cover artwork display
◉ Ultra-low noise power supply and optical LAN transmitter/receiver
* Full-strength 5GHz signal is required for playback 384kHz/DSD256 or above over Wi-Fi
SPECIFICATION

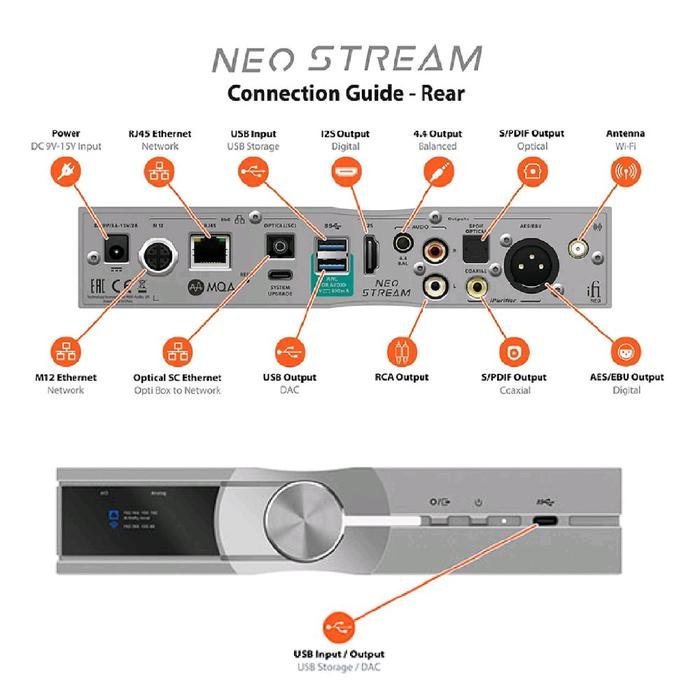

•Inputs: Wi-Fi
Ethernet (M12 X-code 8-pin/RJ45/Optical)
USB-A and USB-C (front panel) (USB DISK, HDD etc.)
•Formats:
DSD: up to 512 / 22.6MHz
PCM: up to 768kHz
MQA Full Decoder
•Analogue output:
Balanced 4.4mm 4V RMS / UnBAL RCA 2V RMS
•Digital output:
USB-C (front panel)
USB3.0 Type-A Socket x2 (USB2.0 compatible)
S/PDIF Optical (PCM up to 192kHz, 24-bit)
S/PDIF Coaxial (PCM up to 192kHz, 24-bit)
AES/EBU (XLR - single link, PCM up to 192kHz)
I2S via HDMI connector
Pinout:
1) Data - 2) Gnd 3) Data +
4) Bck + 5) Gnd 6) Bck -
7) Wck - 8) Gnd 9) Wck +
10) Mck + 11) Gnd 12) Mck -
13,14,15,16) DSD Enable; L=PCM, H=DSD
17) Gnd 18) 5V Power Enable Output; L=O, H=On
19) N/C 20,21,22,23) Gnd
•Output Impedance:
Balanced ≤74Ω
UnBAL ≤37Ω
•SNR:
<-106dB(A) @ 0dBFS (BAL/UnBAL)
•THD + N:
Power supply requirement: DC 9V/2.0A, 12V/1.8A, 15V/1.2A* (centre pin +)
•Power consumption: •Dimensions:
214 x 151 x 41 mm (8.4" x 5.9" x 1.6")
•Net weight: 1.0 kg (2.26 Ibs)

Limited Warranty: 12 months**
*A power supply unit must be able to deliver minimum rated repetitive current
**12 months typical or as permitted/required by local reseller laws.
***Specifications are subject to change without notice.
