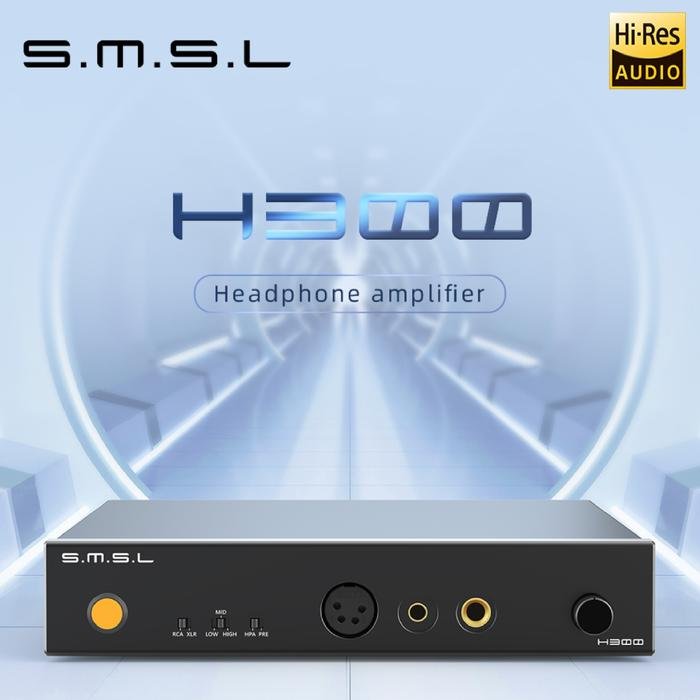

SMSL H300
New Design Headphone Amplifier

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES

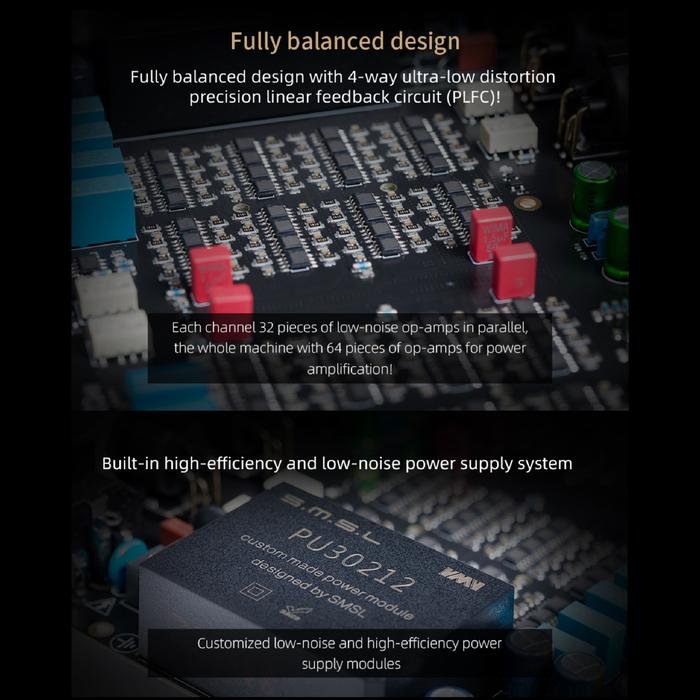

◉ Fully balanced design, 4 ultra-low distortion precision linear feedback circuit (PLFC)!
◉ The distortion is as low as 0.00006%, and the A-WTD is as low as 133dB!
◉ Each channel uses 32 low-noise op amps in parallel, a total of 64 op amps for power amplifier!
◉ High output power, 16 ohm output power up to 10W, 32 ohms up to 5W;
◉ The specially designed volume potentiometer greatly reduces channel deviation;
◉ 3 gears gain control, low gain is specially optimized for IEM;
◉ Pre-out function, can be used as Hi-End pre-amp;
◉ Vintage operation of mechanical toggle switches;

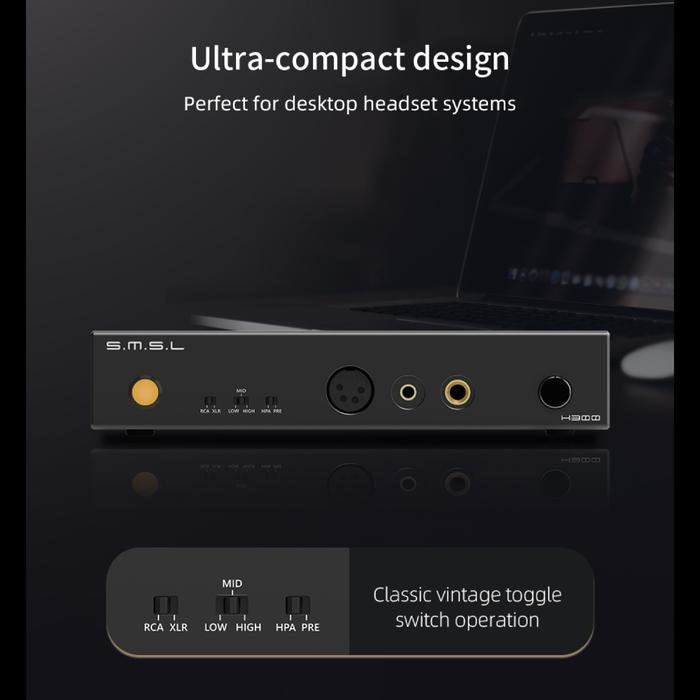

◉ Ultra-compact design, very suitable for desktop headphone system;
◉ High-precision low-temperature drift resistance, performance is not affected by temperature;
◉ High-quality relay and non-impact sound design;
◉ 20Hz to 100kHz(-0.5dB) frequency response;
◉ The headphone amplifier has comprehensive protections such as DC, overvoltage, and overload protection;
◉ Built-in high-efficiency and low-noise power system.

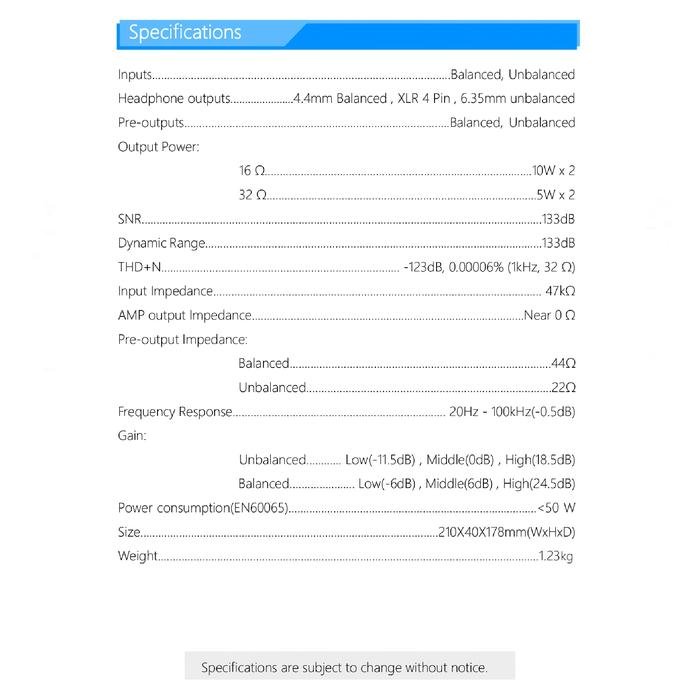

SPECIFICATIONS

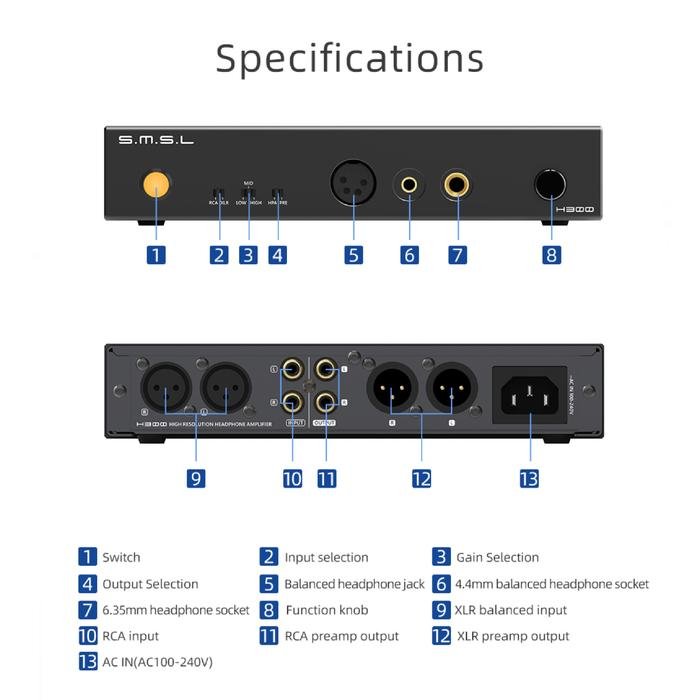

•Inputs: Balanced, Unbalanced
•Headphone outputs:
4.4mm Balanced , XLR 4 Pin , 6.35mm unbalanced
•Pre-outputs: Balanced, Unbalanced
•Output Power:
16Ω (10W x 2)
32Ω (5W x 2)
•SNR: 133dB
•Dynamic Range: 133dB
•THD+N:
-123dB, 0.00006% (1kHz, 32 Ω)
•Input Impedance: 47kΩ
•AMP output Impedance:
Near 0 Ω
•Pre-output Impedance:
Balanced: 44Ω Unbalanced: 22Ω
•Frequency Response:
20Hz - 100kHz(-0.5dB)
•Gain: Unbalanced:
Low(-11.5dB) , Middle(0dB) , High(18.5dB) Balanced
Low(-6dB) , Middle(6dB) , High(24.5dB)
•Power consumption(EN60065):
•Size: 210X40X178mm(WxHxD)
•Weight: 1.23kg
