SMSL D1
ROHM Entry Level Audio Digital Analog Converter DAC

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES

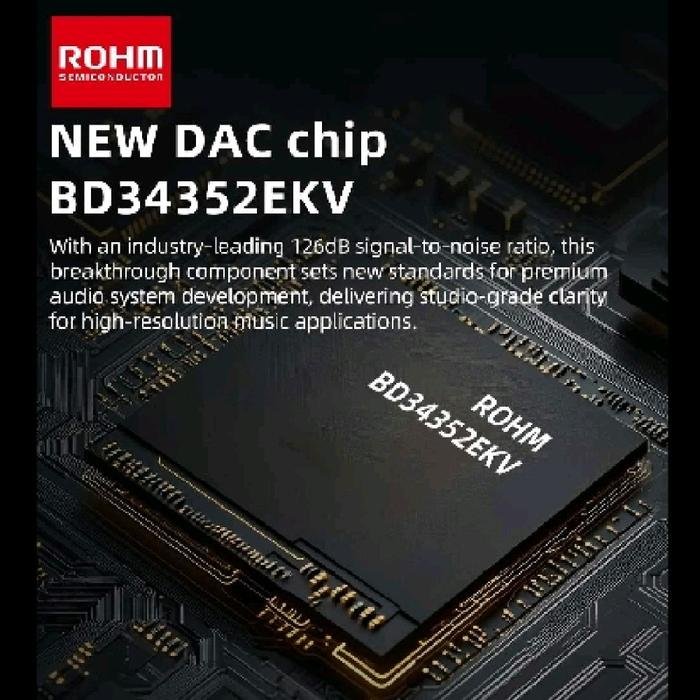

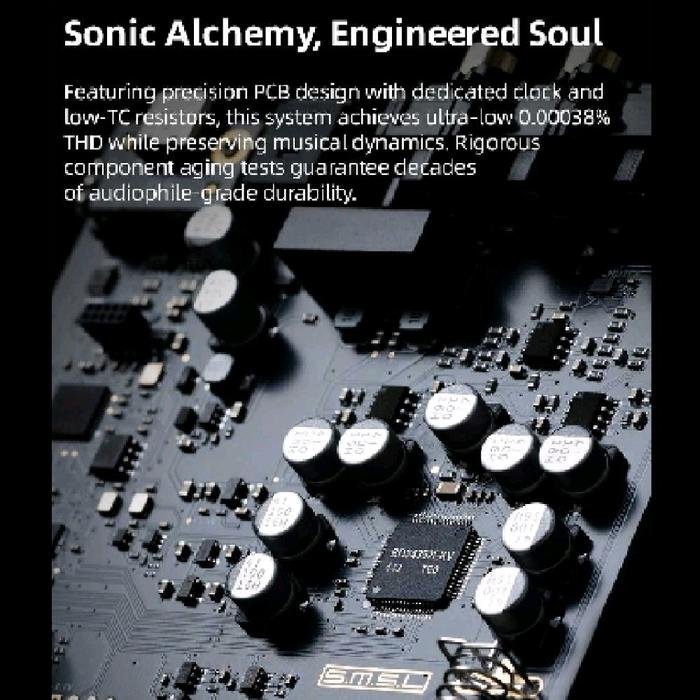

◉ Adopt a piece of ROHM new BD34352EKV, and carefully tuned to make its THD + N reached 0.00038%
◉ High-quality sound design, unique and charming tone
◉ Ultra-compact design with neat touch button panel
◉ Using the latest XMOS XU-316 program support to 32bit768kHz and DSD512
◉ Support optical, coaxial input, maximum support to 24bit/192kHz
◉ Built-in high-performance power filtering system, making it possible to achieve optimal performance using only the USB port power supply!

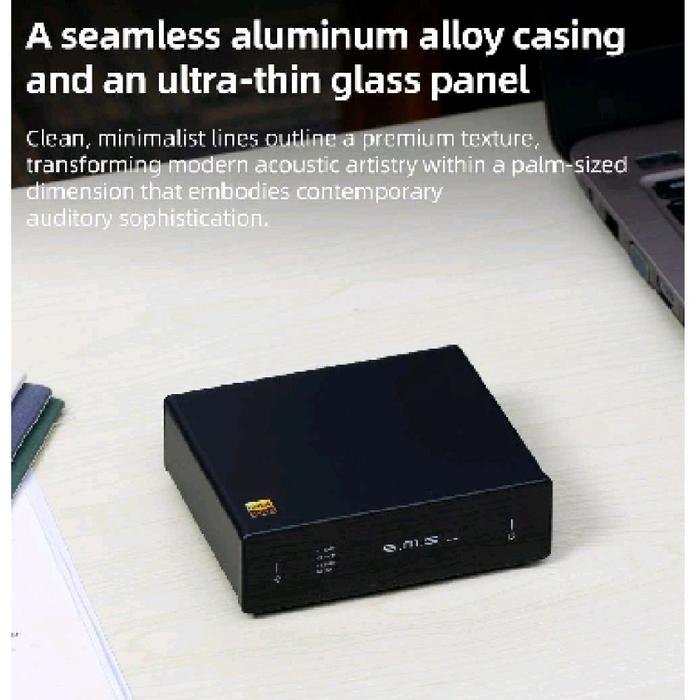

◉ Anodized CNC aluminum alloy case
◉ Japan Electronic Audio Association Hi-res certification
SPECIFICATIONS

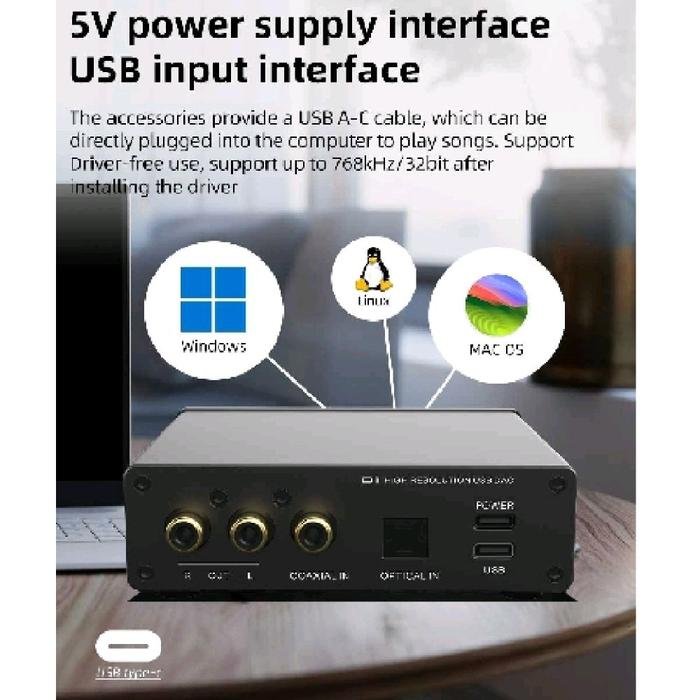

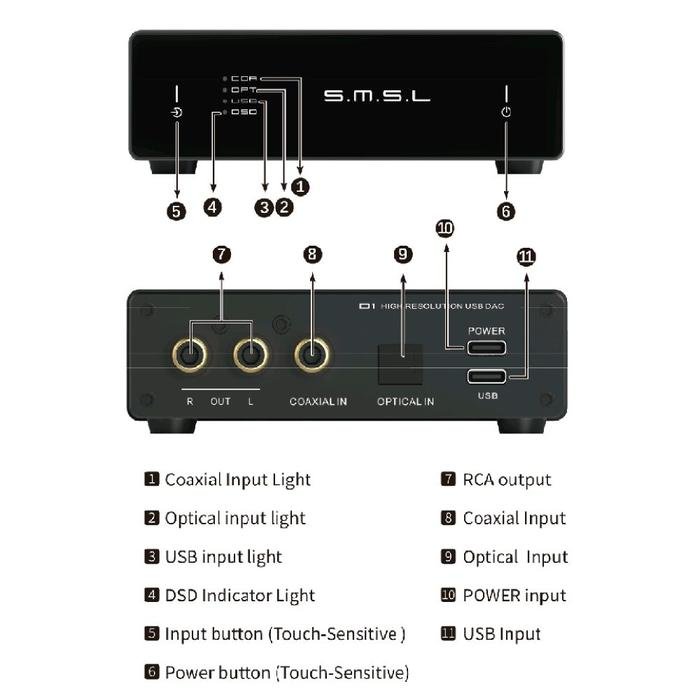

•Input: USB/Optical/Coaxial
•Output Level: 2.0Vrms
•THD+N: 0.00038%(-108dB)
•Dynamic range: 119dB
•SNR: 119dB
•USB transmission method:
Asynchronous Transmission
•USBcompatibility:
Windows 7/8/8.1/10/11
Mac OSX、Linux
•Bit depth:
USB 1bit~32bit
Optical/coaxial 16bit ~ 24bit
•Sampling rate:
USB PCM 44.1kHz~768kHz
DSD 2.8224~22.5792MHz
Optical/Coaxial 44.1kHz~192kHz
•Power Consumption:
•Standby power:

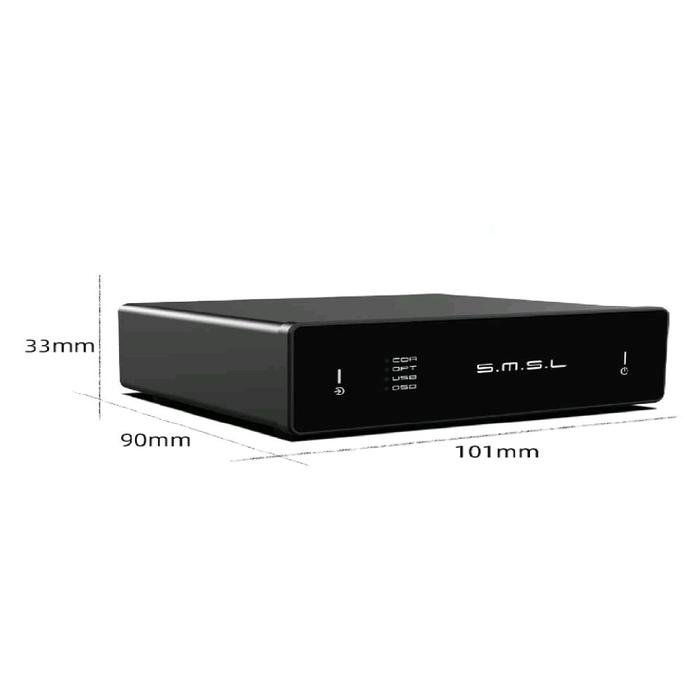

•Size: 101x33x90.1mm (WxHxD)
•Weight: 201.1g/0.443lbs
