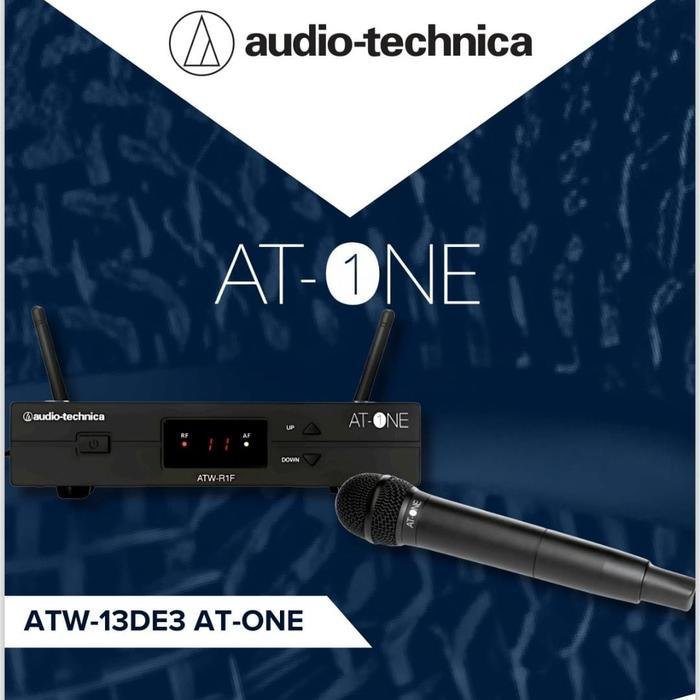

Audio Technica AT-ONE ATW-13 UHF Wireless System Mic Wireless Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

AT-One, Audio-Technica’s entry level UHF wireless system. With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion.
AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One’s frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group.
Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-13 handheld system features the ATW-T3 cardioid condenser handheld transmitter, again with 10mW RF output and 10 hour battery life.

Designed for quick and easy use
Perfect balance between price and performance, the AT-One is ideal for those looking for reliable results at low prices
The frequency plan of AT-One is divided into two groups with 4 channels available in each group, one in the range of authorized European frequencies and the other in the duplex Gap
Users can choose up to 4 channels in a group

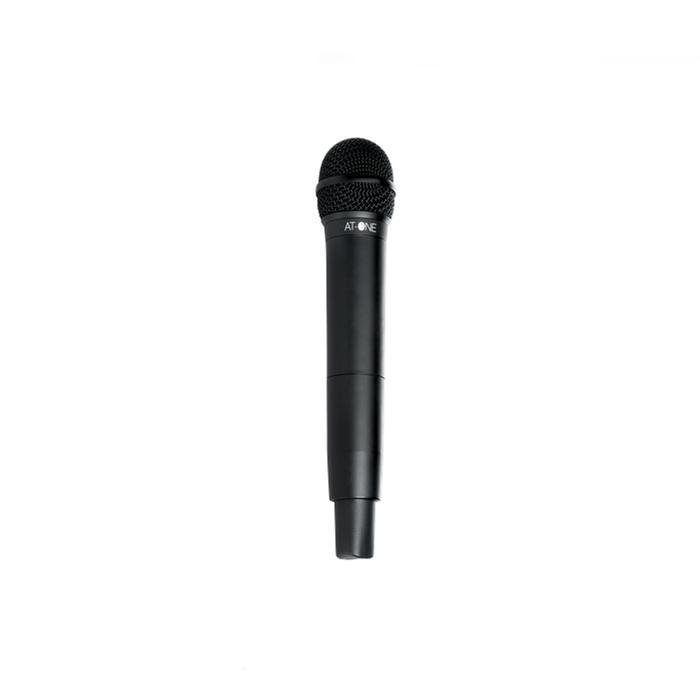

The ATW-13 system is equipped with a cardioid condenser handheld transmitter
RF transmission power 10mW
Up to 10 hours' battery life with 2 x 1.5V AA batteries
RF Indicator light
Robust construction from high quality components
Delivered in a transport case with a rack mount kit and detachable antennas
Spesifikasi:
• Operating Frequencies:
DE3-Band: 482 – 892 MHz, 495 – 512 MHz
HH2-Band: 824 - 831 MHz, 863 - 865 MHz
• Modulation Mode FM
• Frequency Response 60 Hz - 16 kHz
• Frequency Stability +/- 0.005%, Phase lock loop frequency control
• Operating Range 60m, typical
• Number Of Channels 2 x 4 frequencies
• RF Power Output 10 mW
• Spurious Emissions Following national regulations
• Microphone Element Cardioid condenser
• Battery Type Two 1.5V AA alkaline (not included)
• Battery Life 10 hours - depending on battery type and use pattern
• Dimensions 66 mm x 98 mm x 22 mm (W x H x D)
• Net Weight 277 g without batteries
• RF Power Output 10 mW Battery Life 10 hours - depending on battery type and use pattern
• Battery Type Two 1.5V AA alkaline (not included)
• Dimensions 66 mm x 98 mm x 22 mm (W x H x D)
• Input Connections Pin 1: GND Pin 2: INST Pin 3: Mic Pin 4: DC Bias +10V
• Net Weight 71 g without batteries
• Spurious Emissions Following national regulations
• Receiving System Antenna switching diversity
• Image Rejection 55dB minimum
• Sensitivity 10dBµV (S/N 60dB @ 20 kHz deviation)
• Antenna Input BNC type, 50 - BIAS voltage 12V DC 100mA each
• Dimensions 200 mm x 42 mm x 122 mm (W x H x D)
• Weight 418 g without accessories
