Audio Technica ATV-SG1
On-Camera Shotgun Microphone

100% PRODUK RESMI
100% PRODUK ORIGINAL
100% BARANG BARU
GARANSI RESMI 1 TAHUN

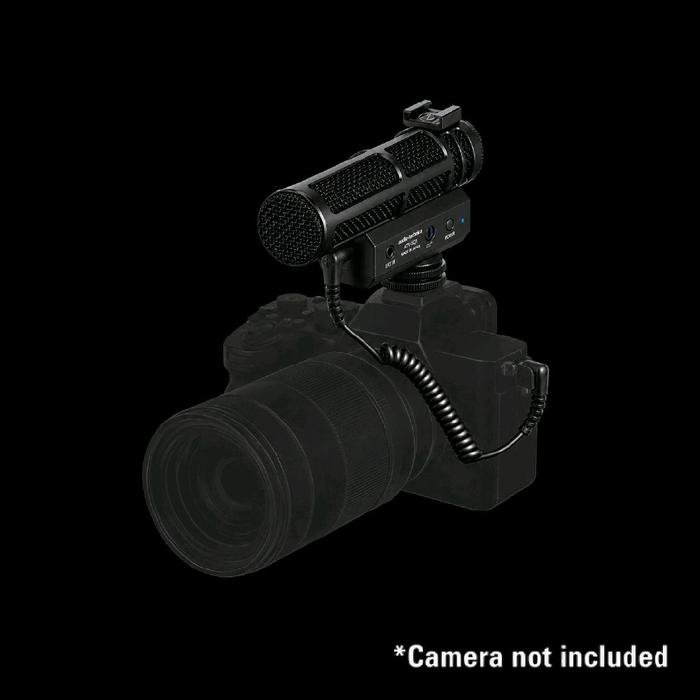

*Camera not include !

FEATURES
• Newly designed 14 mm large-diameter diaphragm delivers natural, high-resolution sound
• Highly directional 100 mm acoustic tube keeps pickup focused on the sound source while blocking unwanted background noise
• Integrated shock mount dissipates handling noise caused by camera movement and vibrations
• Low-cut filter switch reduces low-frequency noise from wind, traffic, HVAC systems, etc.
• Patented A-T noise-immunity technology provides excellent resistance to the hum/RF noise emitted by smartphones and other electronic devices
• Gain adjustment knob allows on-the-fly, stepless control of the gain level
• Safety track option allows you to split the audio signal (a set gain level to the L channel, a -6 dB reduced gain level to the R channel) to ensure a quality, clip-free recording even if there is an unexpected spike in the input level during the shoot
• External input jack and accessory shoe enable you to mount a wireless lavalier mic receiver or use a plug-in-powered wired lavalier mic for simultaneous recording with the shotgun and lav mics
• Headphone jack with volume adjustment enables real-time monitoring
• 12-sided shoe mounting plate allows the mic to be rotated in 30-degree increments for flexible, horizontal positioning and precise mic orientation
• Compact design makes the mic portable and easy to use
• Mount's slide rail allows you to move the mic forward and back for versatile positioning (to keep mic out of the camera shot, to allow use of other camera accessories, etc.)
• Built-in USB rechargeable battery provides approximately 24 hours of continuous operation
• Microphone powers on/off automatically with the camera
• Includes a wind muff for added protection against wind noise in outdoor environments
• Designed and manufactured in Japan

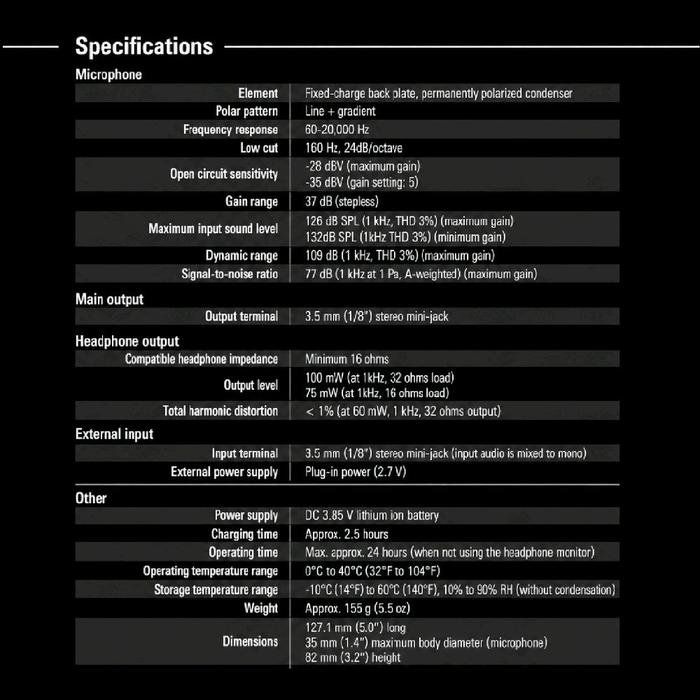

SPECIFICATION
Microphone
• Element: Fixed-charge back plate, permanently polarized condenser

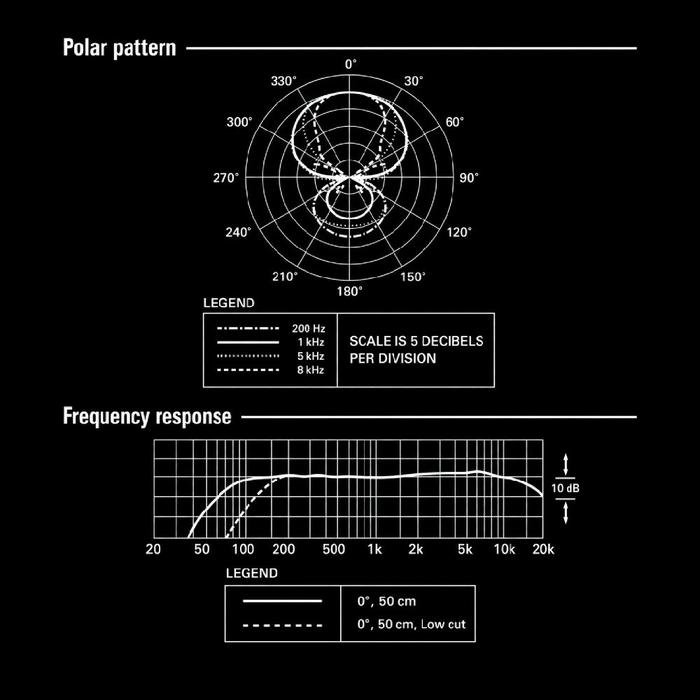

• Polar pattern: Line + gradient
• Frequency response: 60–20,000 Hz
• Low cut: 160 Hz, 24 dB/octave
• Open circuit sensitivity: -28 dBV (maximum gain)
• Open circuit sensitivity: -35 dBV (gain setting: 5)
• Gain range: 37 dB (stepless)
• Maximum input sound level: 126 dB SPL (1 kHz, THD 3%) (maximum gain)
• Maximum input sound level: 132 dB SPL (1 kHz THD 3%) (minimum gain)
• Dynamic range: 109 dB (1 kHz, THD 3%) (maximum gain)
• Signal-to-noise ratio: 77 dB (1 kHz at 1 Pa, A-weighted) (maximum gain)
Main output
• Output terminal: 3.5 mm (1/8") stereo mini-jack
Headphone output
• Compatible headphone impedance: Minimum 16 ohms
• Output level: 100 mW (at 1 kHz, 32 ohms load)
• Output level: 75 mW (at 1 kHz, 16 ohms load)
• Total harmonic distortion: < 1% (at 60 mW, 1 kHz, 32 ohms output)
External input
• Input terminal: 3.5 mm (1/8") stereo mini-jack (input audio is mixed to mono)
• External power supply: Plug-in power (2.7 V)
Other
• Power supply: DC 3.85 V lithium ion battery
• Charging time: Approx. 2.5 hours
• Operating time: Max. approx. 24 hours (when not using the headphone monitor)
• Operating temperature range: 0°C to 40°C (32°F to 104°F)
• Storage temperature range: -10°C (14°F) to 60°C (140°F), 10% to 90% RH (without condensation)
• Weight: Approx. 155 g (5.5 oz)

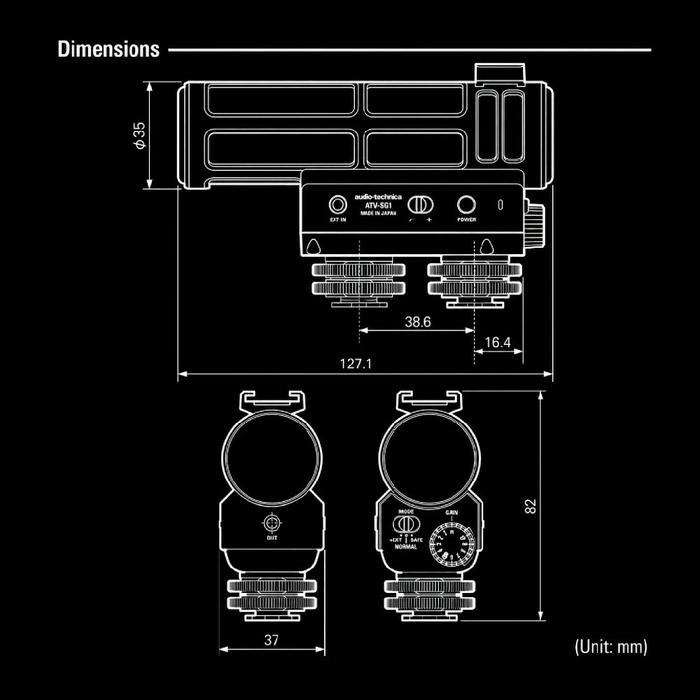

• Dimensions: 127.1 mm (5.0") long
• Dimensions: 35 mm (1.4") maximum body diameter (microphone)
• Dimensions: 82 mm (3.2") height
