iBasso DC Elite
Flagship Dongle Miniaturized DX320MAX DAC Amp

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

FEATURES

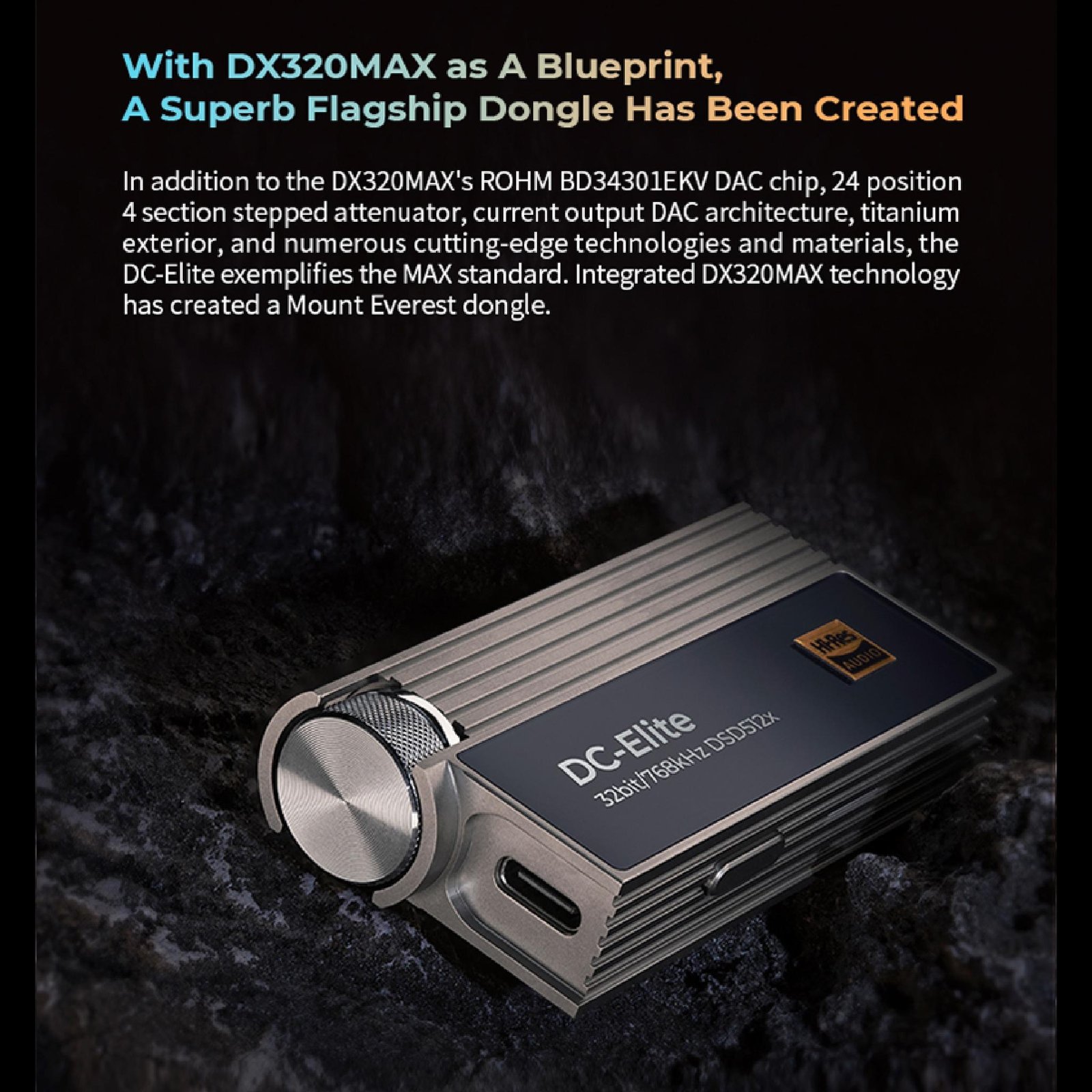

◉ With DX320MAX as A Blueprint, A Superb Flagship Dongle Has Been Created

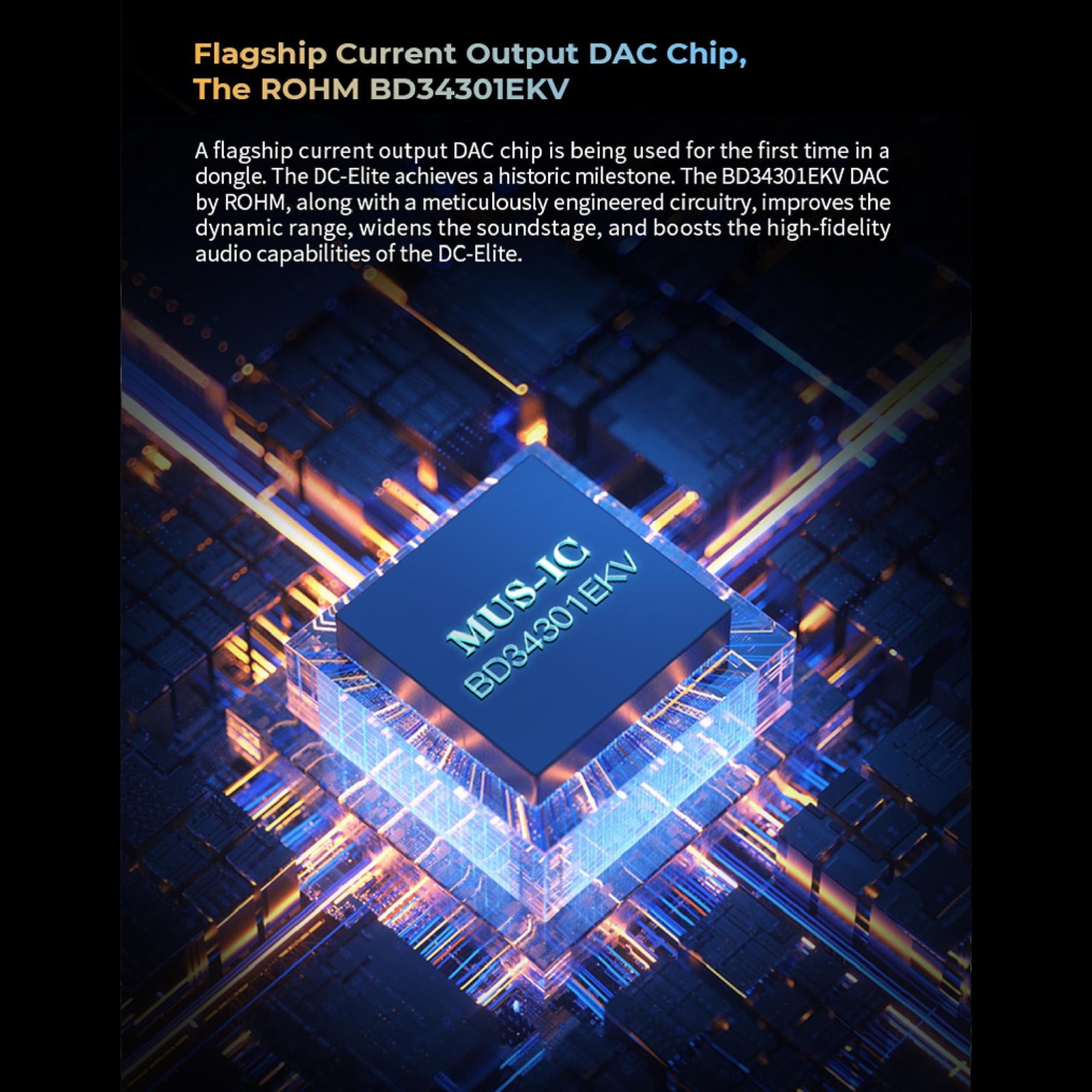

◉ Flagship Current Output DAC Chip, The ROHM BD34301EKV

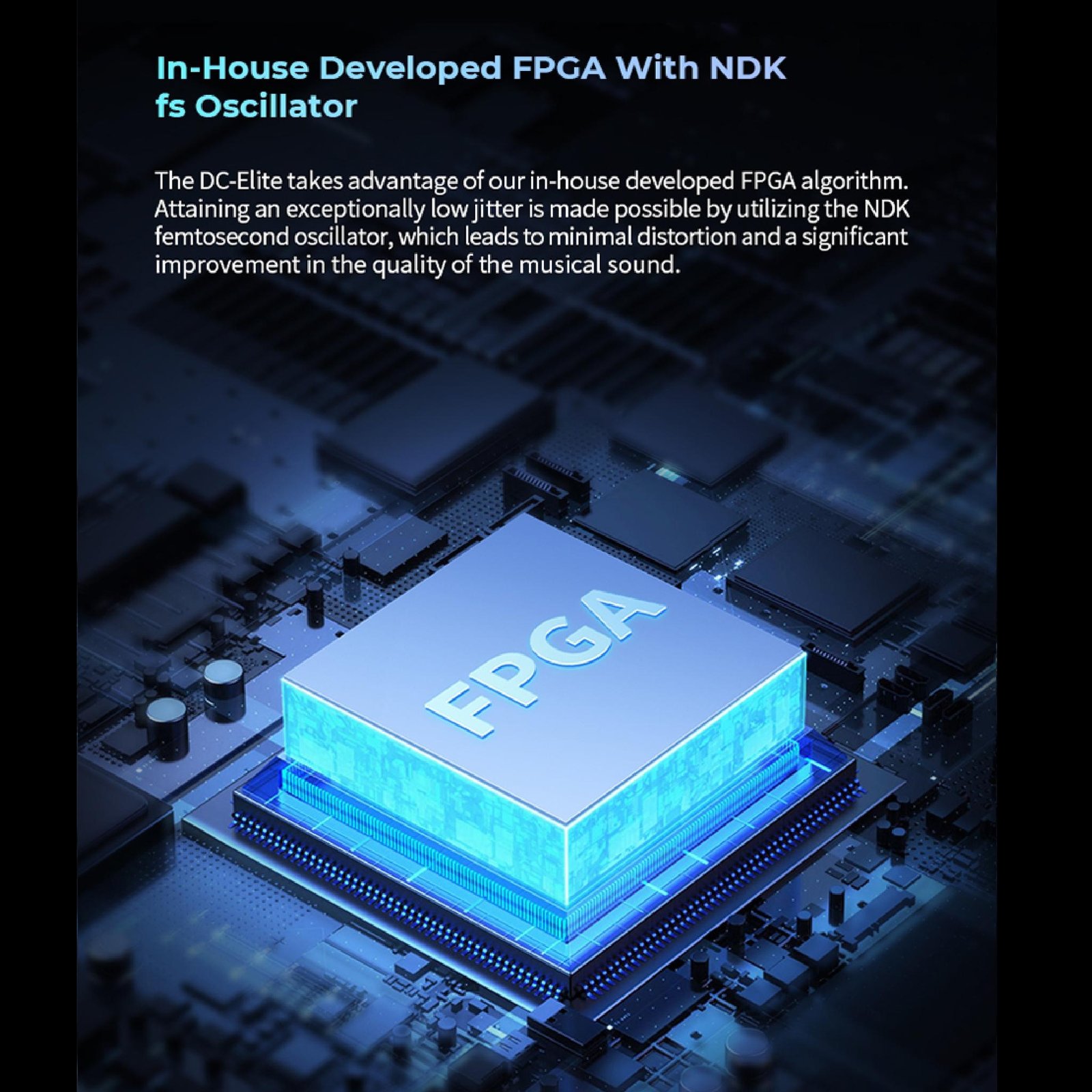

◉ In-House Developed FPGA With NDK fs Oscillator

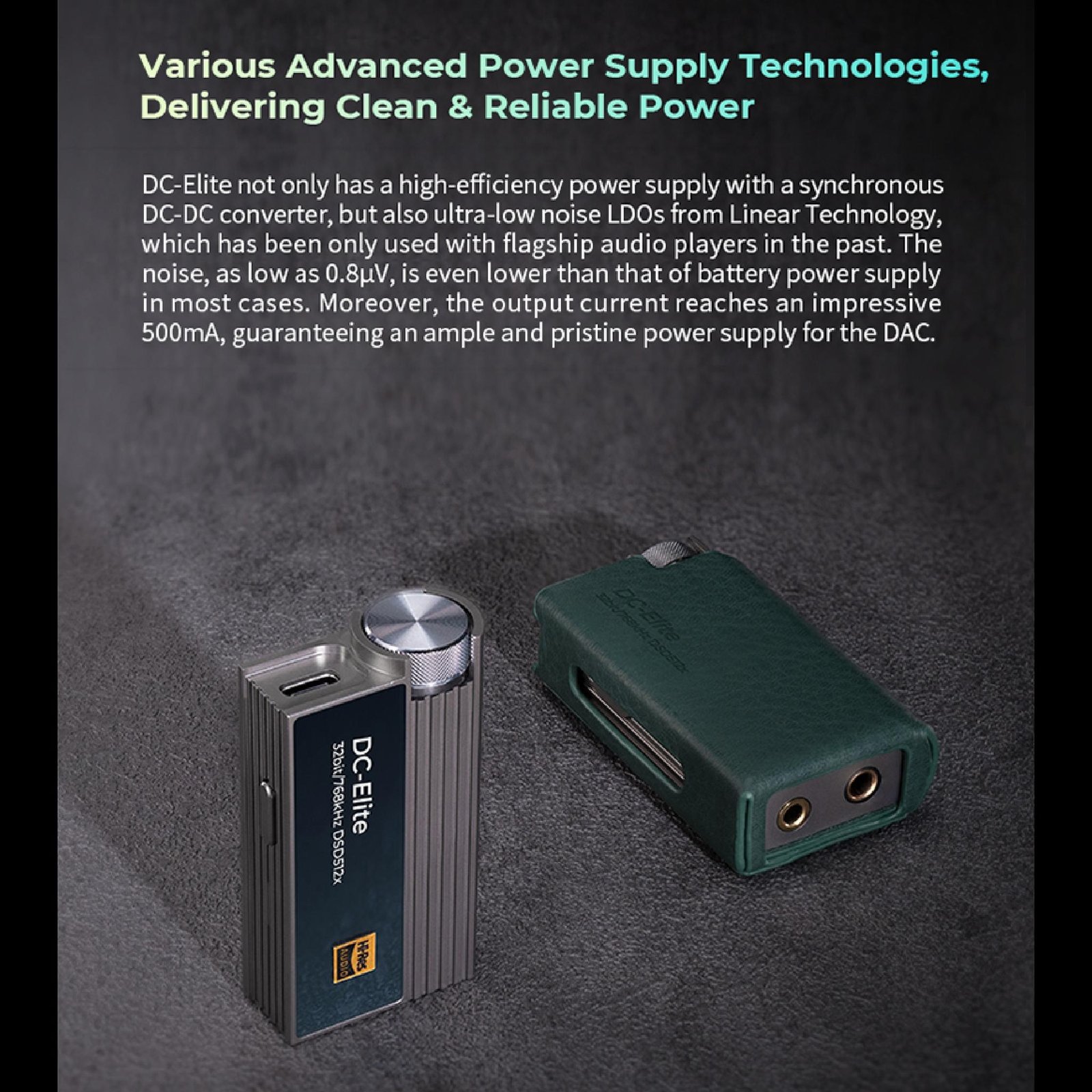

◉ Various Advanced Power Supply Technologies, Delivering Clean & Reliable Power

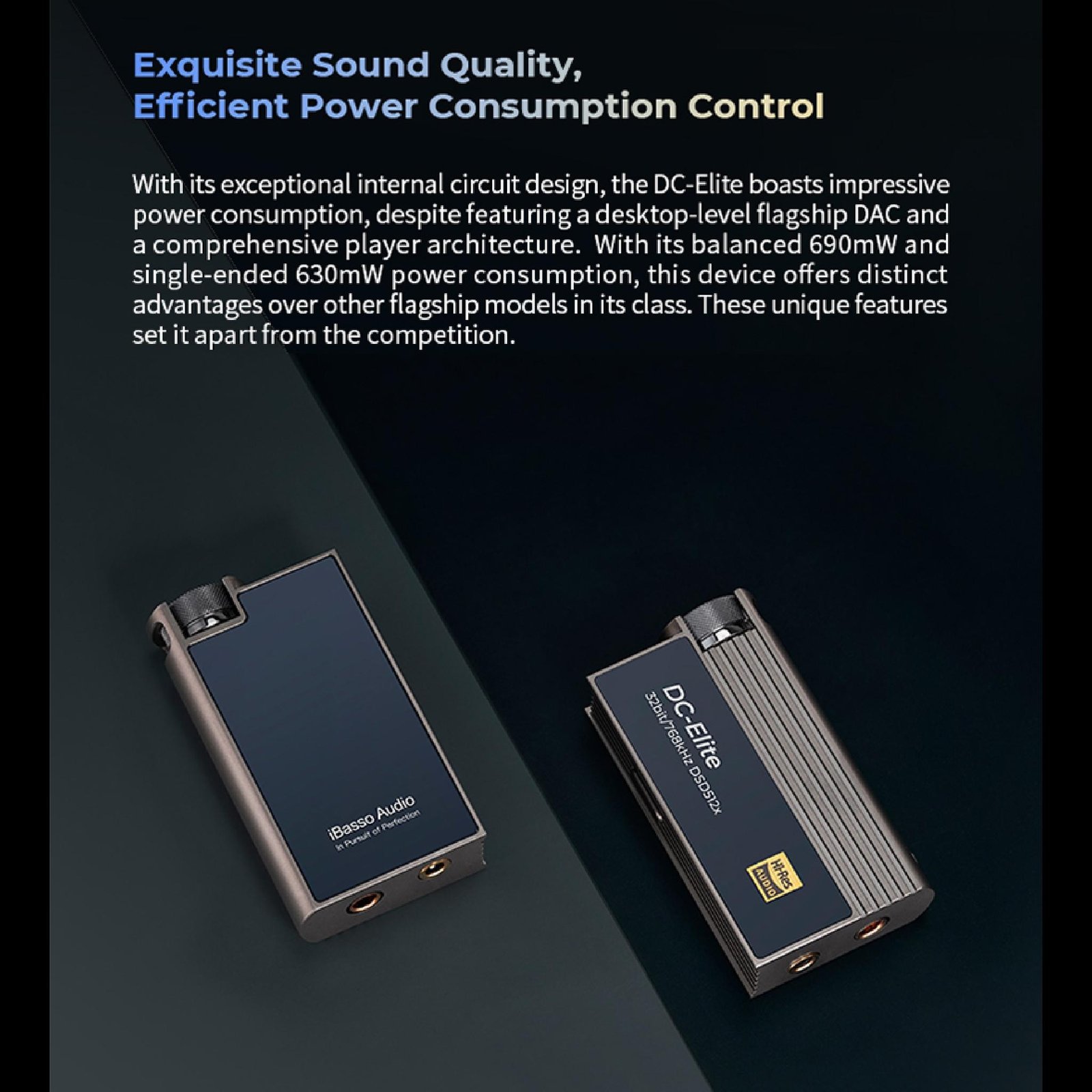

◉ Exquisite Sound Quality, Efficient Power Consumption Control
◉ Luxurious Titanium Alloy Shell With Superb Finish
◉ 4.4mm Balanced Output, 3.5mm Single-ended Output, + 3.5mm Coaxial

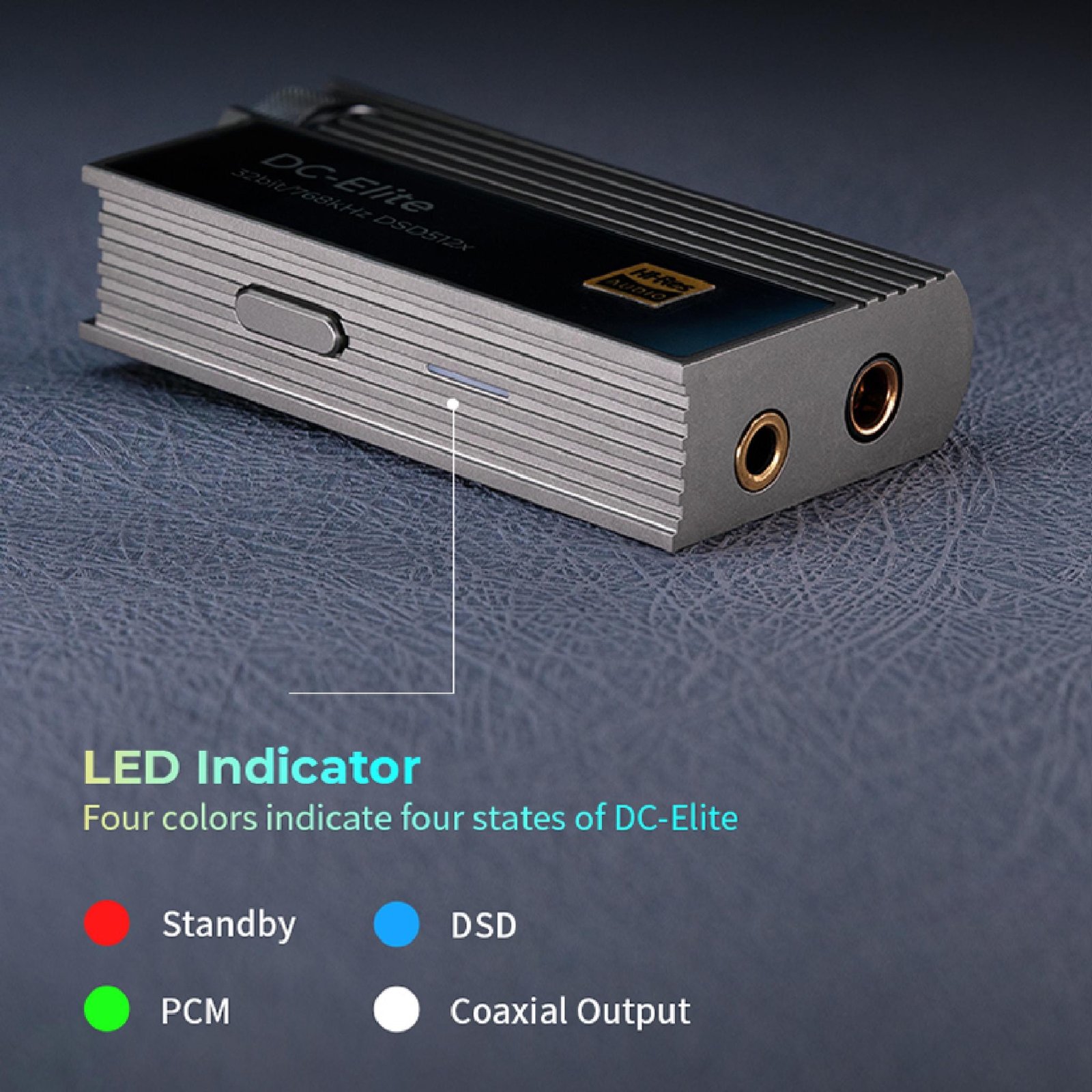

◉ LED Indicator Four colors indicate four states of DC-Elite
◉ VGP2024 Portable Audio Grand Award: Winner
◉ With A Great UAC Companion APP Practical Features Are Already in Place

SPECIFICATION
4.4mm BALANCED
•Output Voltage: 4.6Vrms
•Output Power: 280mW@32ohm, 70mW@300ohm
•THD+N: 0.00022% (300ohm load) 0.00031% (32ohm load)
•Frequency Response: 10Hz-50kHz -0.5dB S/N: 121dBA
•Dynamic Range: 118dBA
•Noise Floor: 3.5µVrms (Normal listening volume: •Output Impedance:
3.5mm SINGLE-ENDED
•Output Voltage: 2.28Vrms
•Output Power: 162mW@32ohm THD+N: 0.00028% (300ohm load) 0.00056% (32ohm load)
•Frequency Response: 10Hz-50kHz -0.5dB
•S/N: 117dBA
•Dynamic Range: 115dBA
•Noise Floor: 2.4µVrms (Normal listening volume: •Output Impedance:
•DAC Chipset: ROHM BD34301EKV
•PCM: up to 32bit/768kHz
•DSD: Native DSD64, DSD128, DSD256, DSD512
•Coaxial Out: Up to 32bit/768kHz
•Weight: 60.5 g
•Size: 64mm X 35mm X 14.5mm
