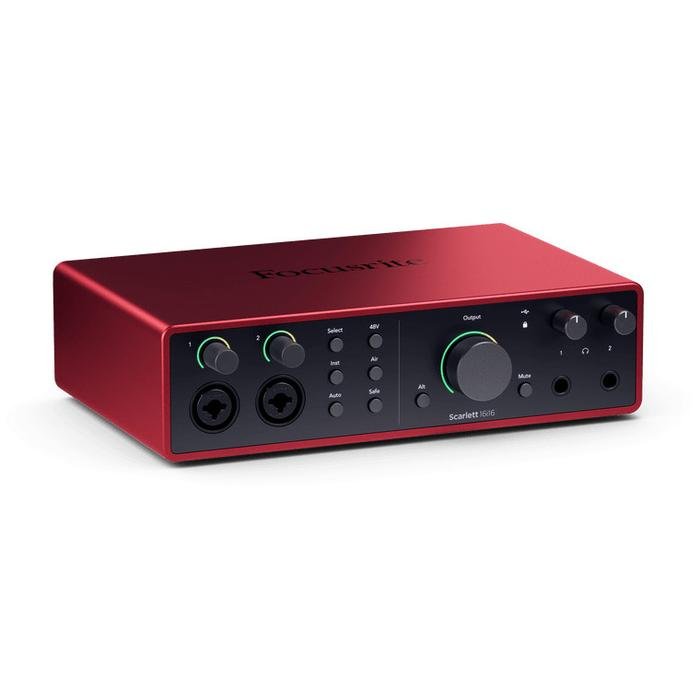

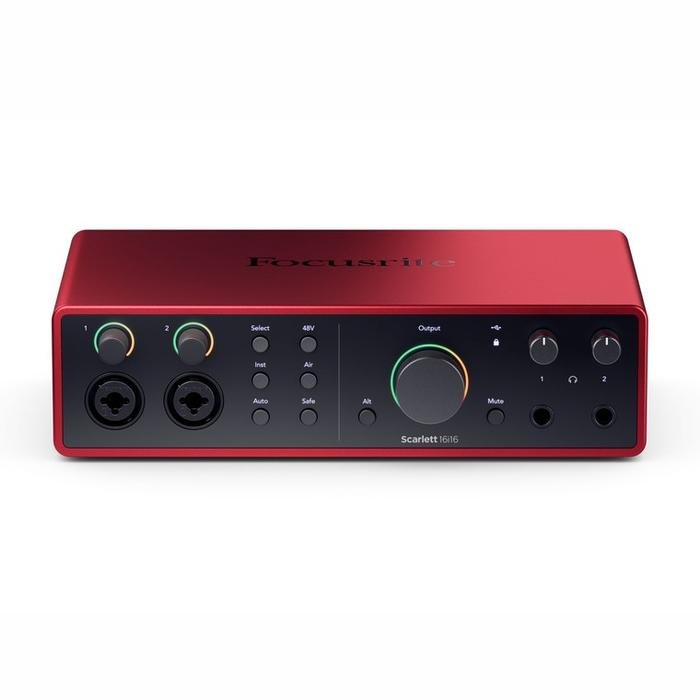

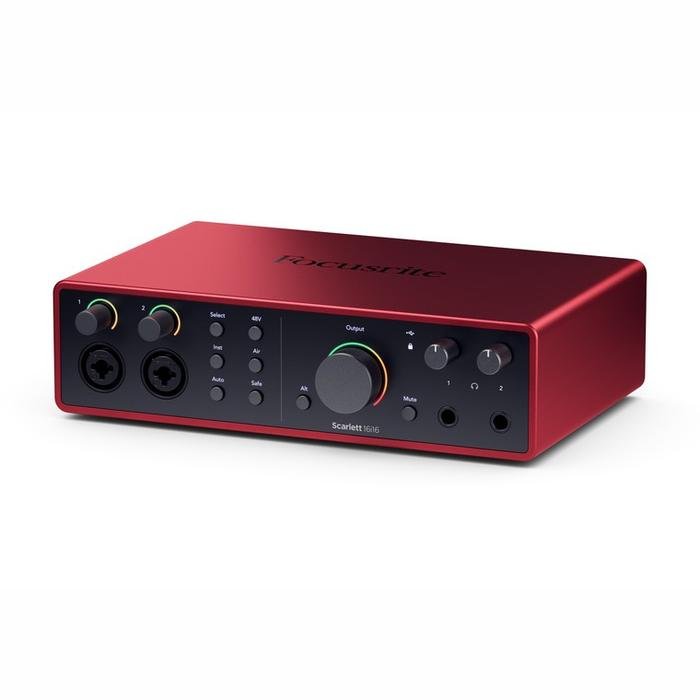

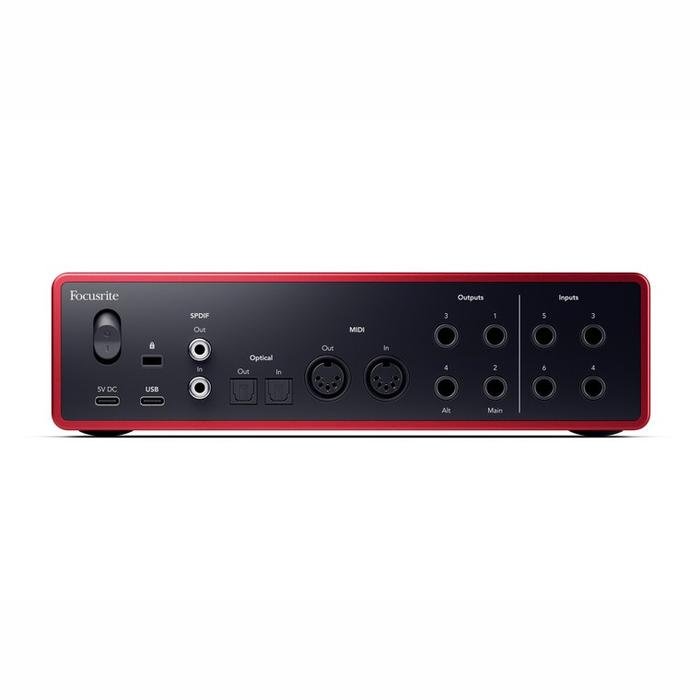

Focusrite Scarlett 16i16 4th Generation / Gen 4 The artist's and producer's 16-in, 16-out USB Audio Interface / Soundcard Original

100% PRODUK RESMI
100% PRODUK ORIGINAL
GARANSI RESMI 1 TAHUN

Description
Scarlett 16i16 is a compact, all-in-one studio hub for your instruments and outboard gear. Ideal for artists and producers, 16i16 is equipped with enough I/O to connect all your studio gear. Two of our most detailed ultra-low-noise mic preamps. Hi-Z, line, and MIDI connections for your guitars, keys, synths, grooveboxes, and controllers. With 16i16 your headphones, monitors, and line outs each get their own mix, so you can match the studio setup to the session. Expand your channel count using the S/PDIF or ADAT connections.

Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. Auto Gain and Clip Safe make sure you'll never need to worry about your levels. The Hitmaker Expansion software bundle has all the tools you need to record, produce, and release your tracks. And the Focusrite Control 2 desktop and mobile apps enable you to remotely control your Scarlett anywhere in the studio. 16i16 can be powered directly from a computer's USB-C port (3A), so no extra power supply is needed.

SPECIFICATION IN DETAIL
Overview
•Number of Microphone Preamps:
2
•Phantom Power:
Yes (Independent)
•Instrument Inputs: 2
•Line Inputs: 6
•Air Mode: Yes
•Auto Gain: Yes
•Clip Safe: Yes
•Line Outputs: 4
•Headphone Outputs: 2
•ADAT Inputs: 1
•ADAT Outputs: 1
•SPDIF Inputs: 1
•SPDIF Outputs: 1
•SPDIF Outputs: 1
•MIDI Inputs: 1
•MIDI Outputs: 1
•Loopback: Yes
•Connectivity:USB Type-C
•Protocol: USB 2.0
•Form Factor: Desktop
•Simultaneous I/O:
18 x 18 (including Loopback)
•A/D Resolution: 24-bit/192 kHz
•Bus Powered: Yes (3A)

Dimensions
•Height: 60.5mm
•Width: 220mm
•Depth: 155.2mm
•Weight: 1.25kg

•Supported sample rates:
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Microphone inputs
•Frequency Response:
20-20kHz ± 0.06dB
•Dynamic Range:
116dB (A-Weighted)
•THD+N:
-100dB @ 8dB gain
•Noise EIN:
-127dBu (A-Weighted)
•Maximum Input Level: 16dBu
•Gain Range: 69dB
•Impedance: 3kΩ

Variable Line inputs
•Frequency Response:
20-20kHz ± 0.05dB
•Dynamic Range:
115.5dB (A-Weighted)
•THD+N:
-100dB @ 8dB gain
•Maximum Input Level: 22dBu
•Gain Range: 69dB
•Impedance: 24kΩ

Fixed Line inputs
•Frequency Response:
20-20kHz ± 0.02dB
•Dynamic Range:
115.5dB (A-Weighted)
•THD+N: -106dB
•Maximum Input Level: 22dBu
•Impedance: 48kΩ

Instrument inputs
•Frequency Response:
20-20kHz ± 0.05dB
•Dynamic Range:
113dB (A-Weighted)
•THD+N:
-80dB @ 8dB gain
•Maximum Input Level: 12dBu
•Gain Range: 62dB
•Impedance: 1MΩ

Line outputs (Balanced)
•Frequency Response:
20-20kHz ± 0.02dB
•Dynamic Range:
122dB (A-Weighted)
•THD+N: -112dB
•Maximum Output Level: 16dBu
•Impedance: 200Ω

Headphone outputs
•Frequency Response:
20-20kHz ± 0.1dB @ 33Ω / 300Ω
•Dynamic Range:
112dB @ 33Ω
116dB @ 300Ω
•THD+N:
-100dB @ 33Ω (Minimum)
-110dB @ 300Ω (Minimum)
•Maximum Output Level:
5dBu into 33Ω
11dBu into 300Ω
•Maximum Output Power:
57mW into 33Ω
27mW into 300Ω
•Impedance: 11Ω

Analogue to Digital Converter
•THD+N: -110dB
•Dynamic Range: 120dB

Digital to Analogue Converter
•THD+N: -115dB
•Dynamic Range:
130dB (A-Weighted)

Power
•USB: 3A
•External (Optional): 15W
